Focusrite Clarett 2Pre USB User Manual

13
Examples of Usage
The Clarett 2Pre USB is an excellent choice for numerous recording and monitoring applications.
Some typical congurations are shown below.

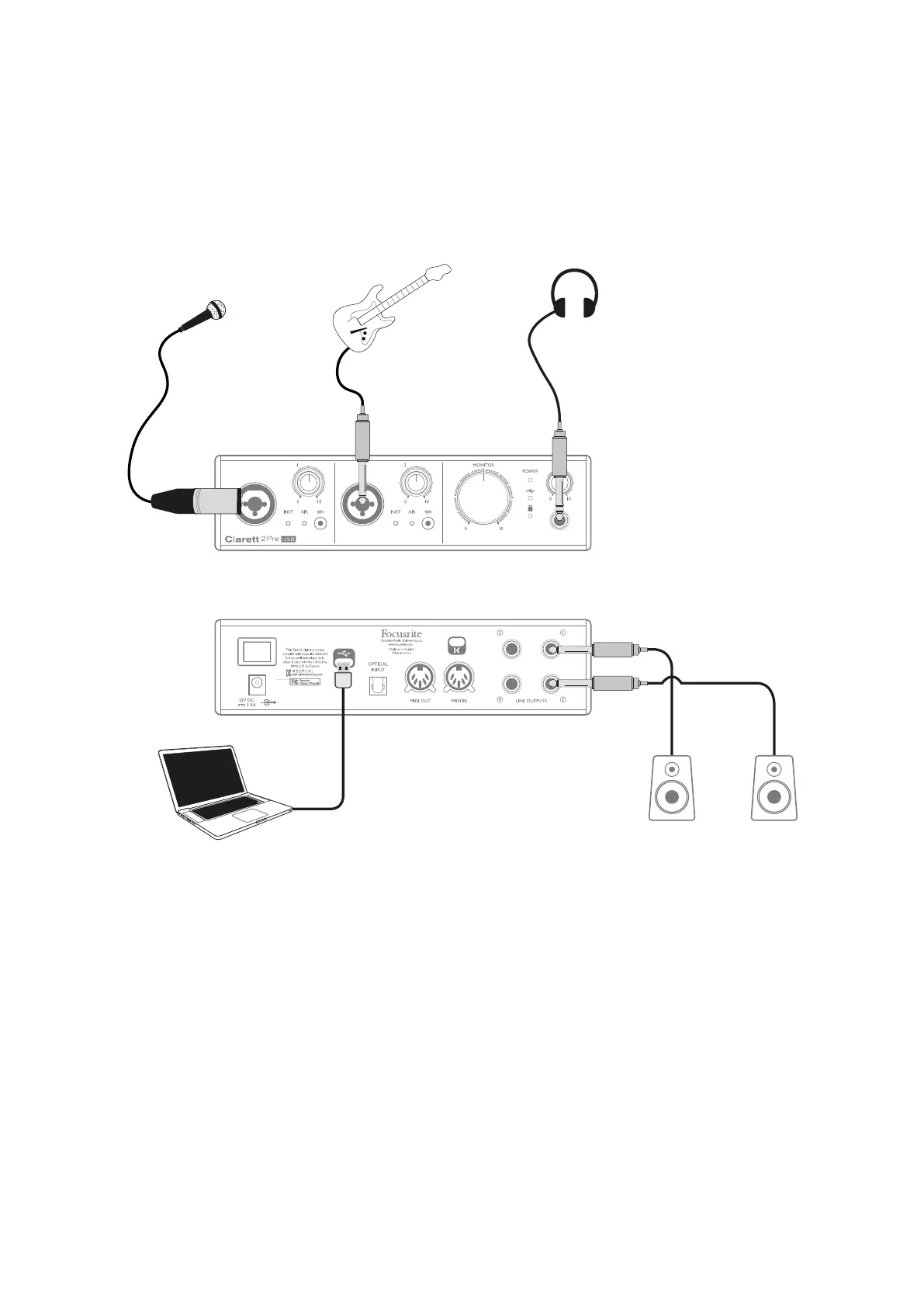

1. Recording a solo artist
This shows a typical conguration for multitrack recording with DAW software on your computer.
In this case, two sources – a microphone and a guitar – are connected to the Clarett 2Pre USB’s
inputs. As the guitar is connected to Input 2, ensure INST mode is selected for Input 2 from Focusrite
Control, and the INST LED is illuminated.
The connection to the computer running DAW software is via a USB cable. This will carry all the input
and output signals between the DAW and the Clarett 2Pre USB. Once the audio setup is correctly
congured in the DAW, each input source will be available for recording.
A mix of the recorded tracks will be available at Line Outputs 1 and 2, so you can hear the results on
the speakers.

Focusrite Clarett 2Pre USB Specifications

General

Gain	57 dB
Control type	Buttons, Rotary
Sample rates	44.1 - 192 kHz
On/off switch	Yes
Phantom power	48 V
Product color	Black
LED indicators	Power, Signal strength, USB
Frequency range	20 - 35000 Hz
Built-in display	No
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan
Windows operating systems supported	Windows 10, Windows 7, Windows 8.1
XLR inputs	2
USB port type	USB Type-C
Digital audio optical out	1
6.35 mm (1⁄4-inch) output	5
DC output voltage	12 V

Weight and Dimensions

Depth	161 mm
Width	210 mm
Height	55 mm
Weight	1360 g
