24
APPENDICES

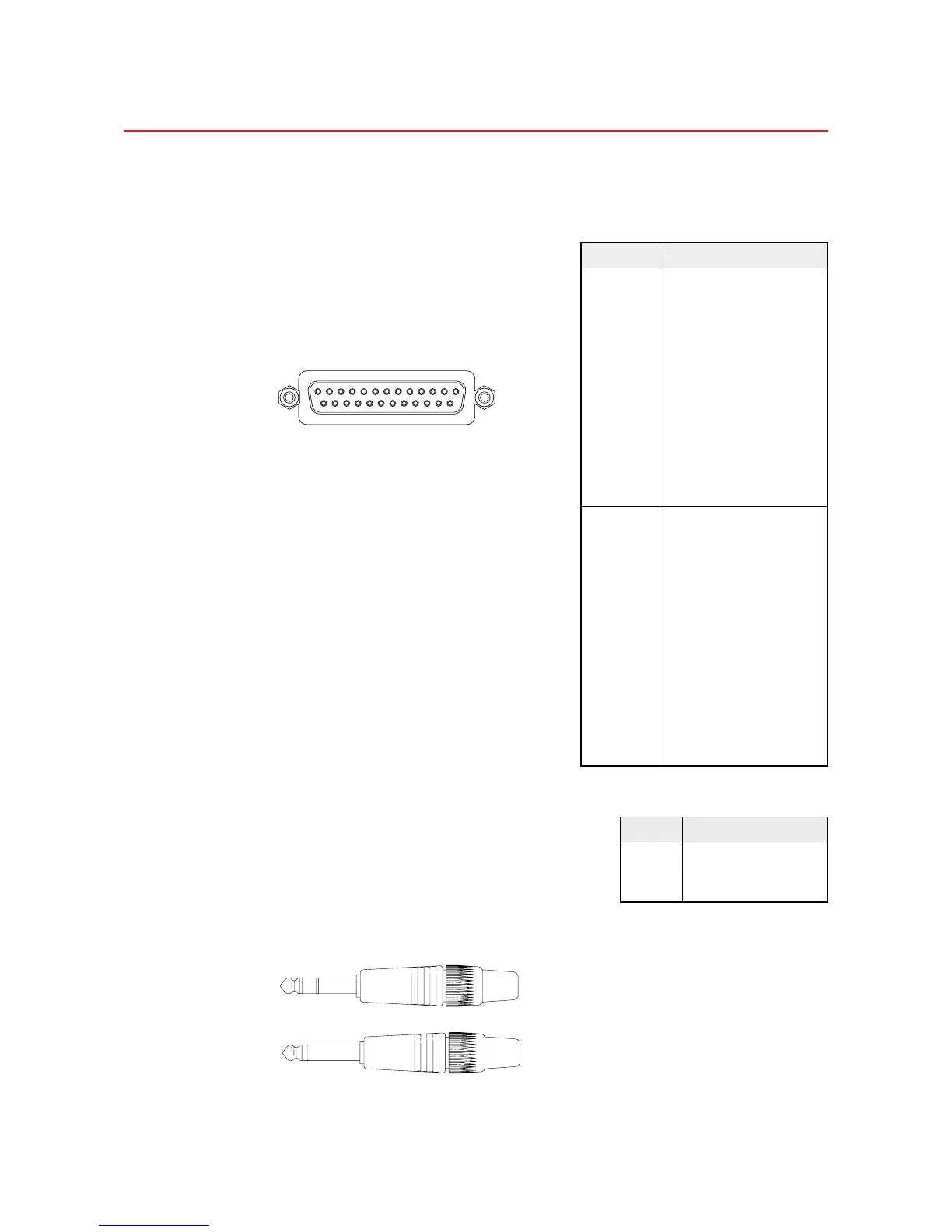

Appendix 1 – Connector Pinouts
DB25 (AES59) Connector
Connector type: DB25 Female
Applies to: Analogue Line Input / Line Output
Pin Signal
1 Channel 8 +
14 Channel 8 –
2 Ground
15 Channel 7 +
3 Channel 7 –
16 Ground
4 Channel 6 +
17 Channel 6 –
5 Ground
18 Channel 5 +
6 Channel 5
19 Ground
7 Channel 4 +
20 Channel 4 –
8 Ground
21 Channel 3 +
9 Channel 3 –
22 Ground
10 Channel 2 +
23 Channel 2 –
11 Ground
24 Channel 1 +
12 Channel 1 –
25 Ground
13 n/c
113
25 14
1/4” Jack Connectors
Connector type: Balanced socket
Applies to: Monitor Outputs
Connector type: Unbalanced socket
Applies to: Instrument Inputs
Pin Signal
Tip Hot (+ve)
Ring Cold (–ve)
Sleeve Screen
Balanced Jack
Tip Ring Sleeve
Tip Sleeve
Unbalanced Jack
