9

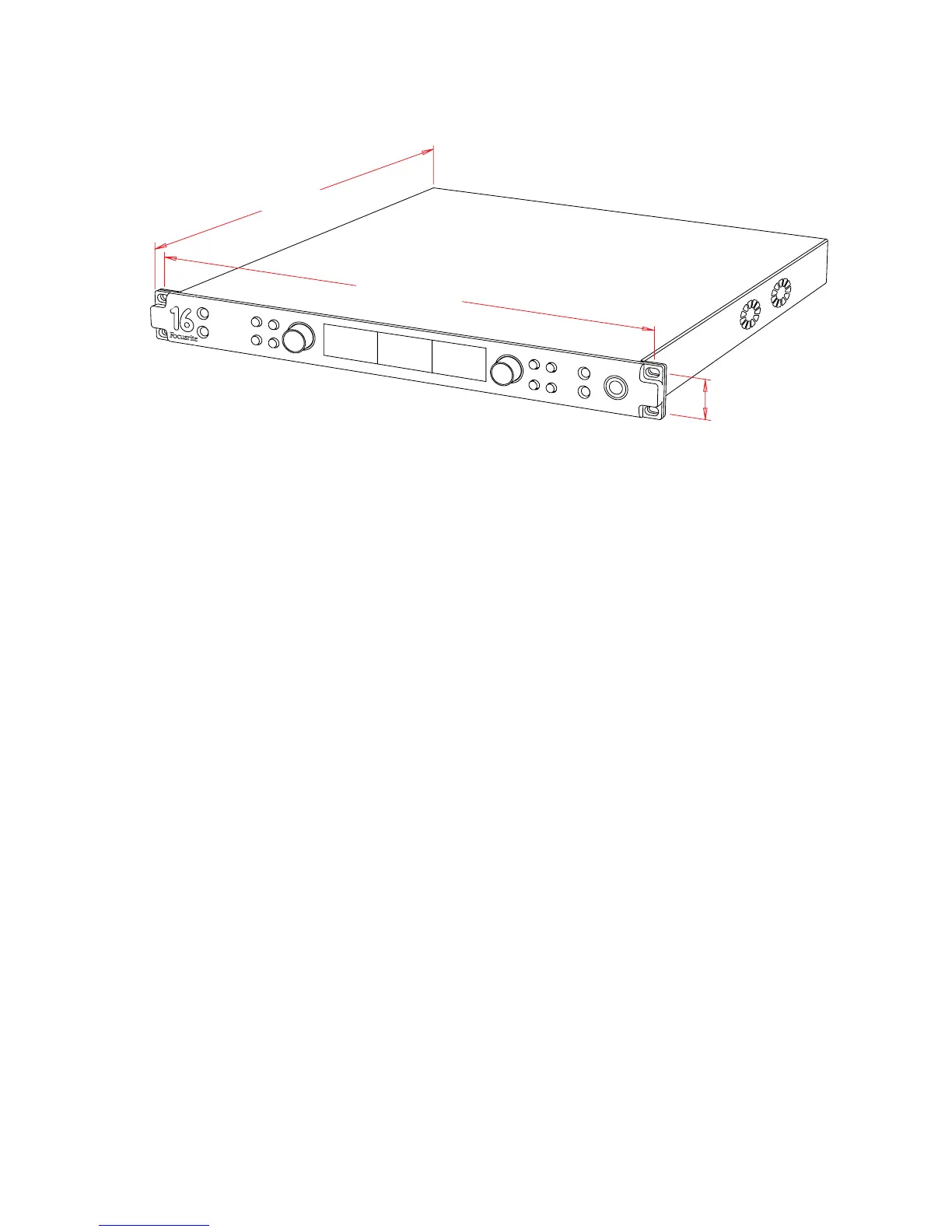

Red 16Line dimensions are illustrated in the diagram above.
Red 16Line requires 1U of vertical rack space and at least 400mm of rack depth, to allow for cables.
Red 16Line weighs 5.04kg and for installations in a fixed environment (eg., a studio), the front-panel
rack mountings will provide adequate support. However, if the units are to be used in a mobile
situation (eg., flight-cased for touring, etc.), it is recommended that side support rails or shelves are
used within the rack.
Cooling is by fan assistance from side to side; the fans used are low-speed and low-noise. Do not
mount the unit immediately above any other equipment which generates significant heat, for example,
a power amplifier. Also, ensure that when mounted in a rack, the side vents are not obstructed.
Note. The maximum operating environmental temperature is 40°C / 104°F.
Power Requirements
Red 16Line is mains-powered. It incorporates a ‘Universal’ power supply which can operate on any
AC mains voltage from 100 V to 240 V. The AC connection is via a standard 3-pin IEC connector on the
rear panel.
A mating IEC cable is supplied with the unit – this should be terminated with a mains plug of the
correct type for your country.
The AC power consumption of the Red 16Line is 120W.
Please note that there are no fuses or other user-replaceable components of any type in Red 16Line.
Please refer all servicing issues to the Customer Support Team (see “Customer Support and Unit Servicing”
on page 33).
Physical Characteristics
465.0mm / 18.3”
31.8mm / 1.25”
340mm / 13.4”
