Red 16Line Controls and Connections

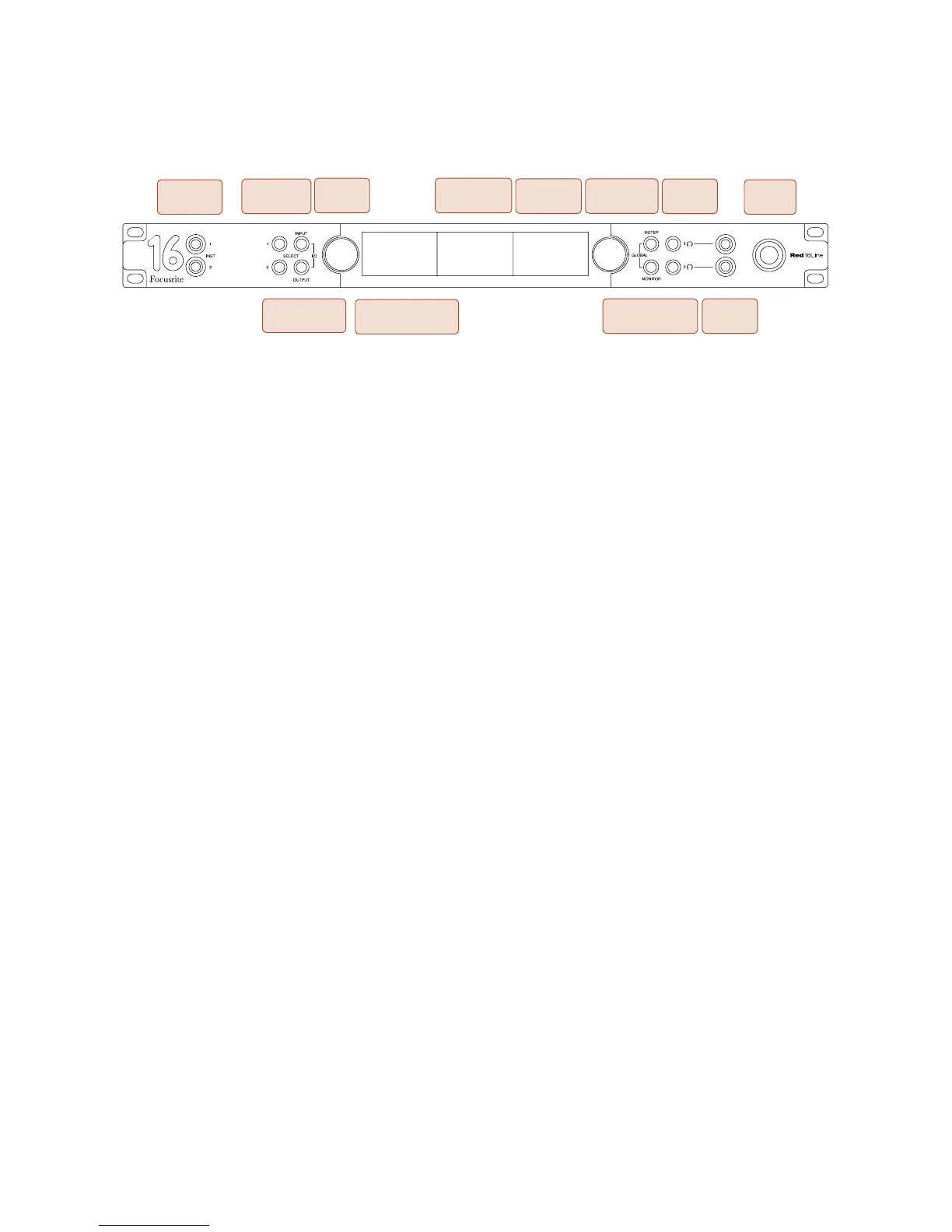

Front Panel
• Instrument Inputs. Two high-impedance unbalanced inputs on 1/4” jack sockets.
• Input Select buttons provide direct access to the menu settings for analogue input channels 1&2.
• The Input Encoder and its associated Input Display is used to select and adjust the configuration
menu settings for the input channels; it also functions as the input gain control for inputs 1&2.
• The Level Meter Displays 1-8 and 9-16 are switchable LCD meters able to show inputs, outputs
or a combined I/O display. Display selection is made using the Input and Output buttons –
pressing both buttons simultaneously selects combined I/O.
• The Output Encoder functions as the volume control for the monitor and headphone outputs. It
is also used to configure the global system settings, control the meter selection and select the
monitor dim and mute features. Its function is determined by the adjacent Monitor, Meter and
Headphone Select buttons.
• The Meter button calls up the selection menu for the level meters onto the Output Display.
• The Monitor button assigns the Output Encoder to the monitor loudspeaker functions.
Pressing the Meter and Monitor buttons simultaneously enters Red 16Line’s Global conguration menu,
where host, clock, power-up and network settings are assigned.
• The Headphone 1 and 2 buttons assign the Output Encoder to the selected headphone control
functions.
• Headphone Outputs are standard 1/4” TRS jacks.
Meter I/O
Select Buttons
Menu, Meter &
Monitor Buttons
Instrument
Inputs
Input Select
Buttons
Input
Encoder
Level Meter
Display 9-16
Input & Level
Meter Display 1-8
Menu &
O/P Display
Menu & O/P
Encoder
H/phone
Select
H/phone
Outputs
Power
Switch
