Focusrite Red 16Line User Manual

25
Pro Tools Interface
Connector type: Mini DigiLink receptacle
Applies to: PRIMARY 1 & 2

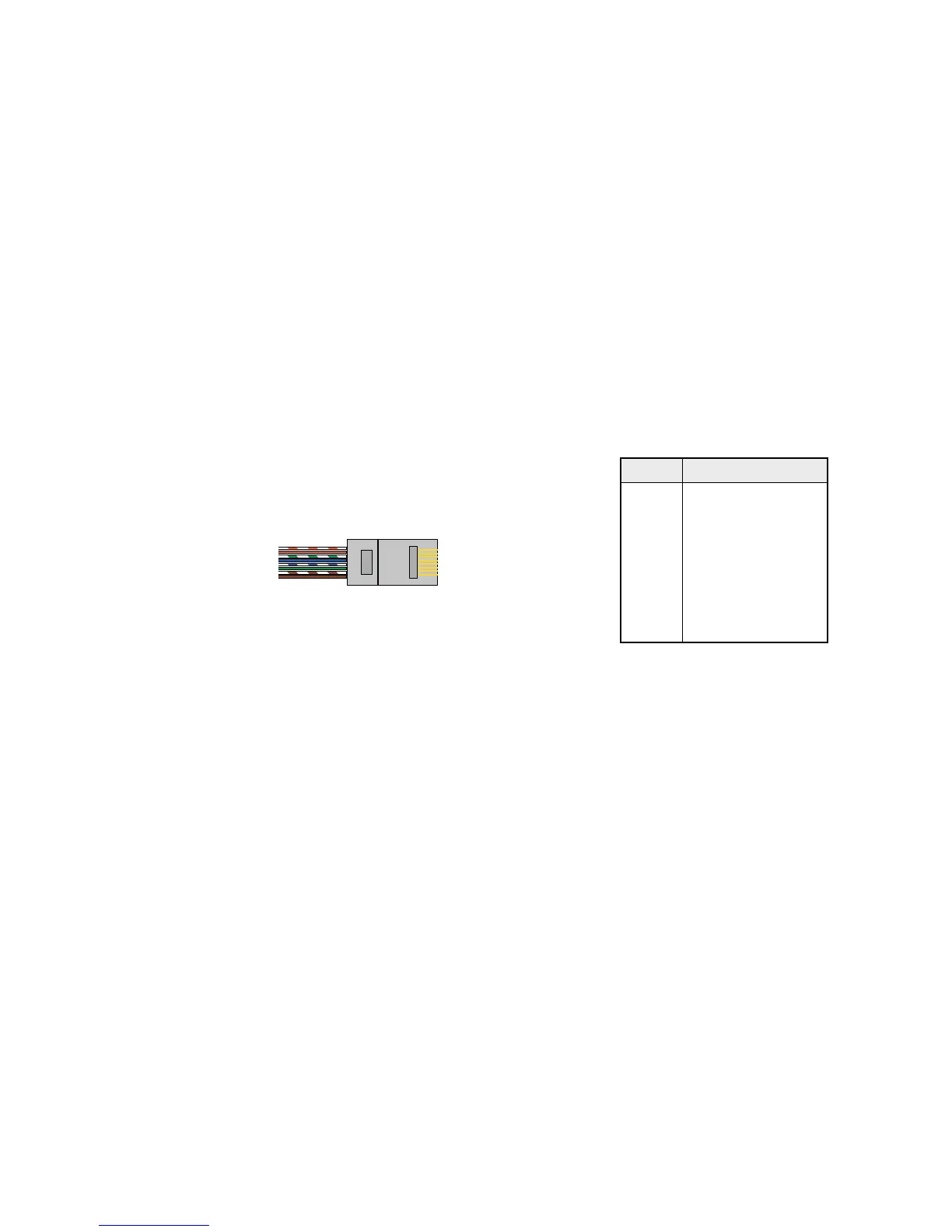

Ethernet Connector
Connector type: RJ-45 receptacle
Applies to: Ethernet (Dante)
BNC Connectors
Connector type: 75Ω BNC Socket
Applies to: WORD CLOCK IN/OUT
LOOP SYNC IN/OUT
Pin Cat 6 Core
1 White + Orange
2 Orange
3 White + Green
4 Blue
5 White + Blue
6 Green
7 White + Brown
8 Brown
11
8
1
8
Appendix 1 – Connector Pinouts Continued...
