Focusrite RedNet - Utility menu

21
AES/EBU Ch Audio channels
A 1 & 2
B 3 & 4
C 5 & 6
D 7 & 8

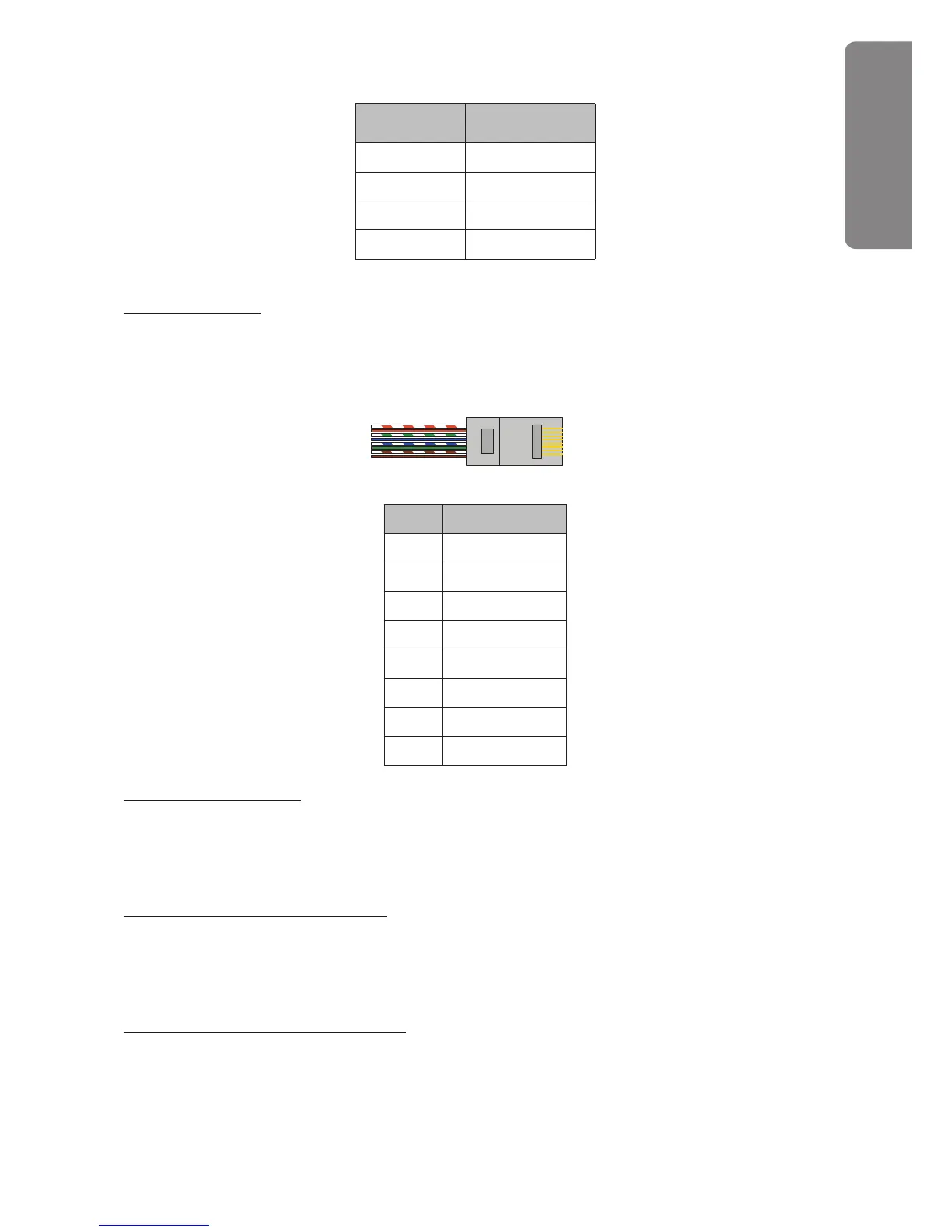

Ethernet connector
Connector type: RJ-45 receptacle
Applies to: ETHERNET
Cable type: CAT 5e or CAT 6
11
8
1
8
Pin Cat 6 Core
1 White + Orange
2 Orange
3 White + Green
4 Blue
5 White + Blue
6 Green
7 White + Brown
8 Brown
Word Clock I/O (Ext sync)
Connector type: 2 x 75 ohm BNC sockets
Applies to: WORD CLOCK INPUT and OUTPUT
S/PDIF I/O (Digital audio Chs 1 and 2)
Connector type: 2 x phono (RCA) sockets
Applies to: S/PDIF INPUT and OUTPUT
ADAT I/O (Digital audio Channels 1 – 64)
Connector type: TOSLINK
Applies to: OPTICAL INPUTS 1-8 and OUTPUTS 1-8
REDNET 3
