PHYSICAL CHARACTERISTICS

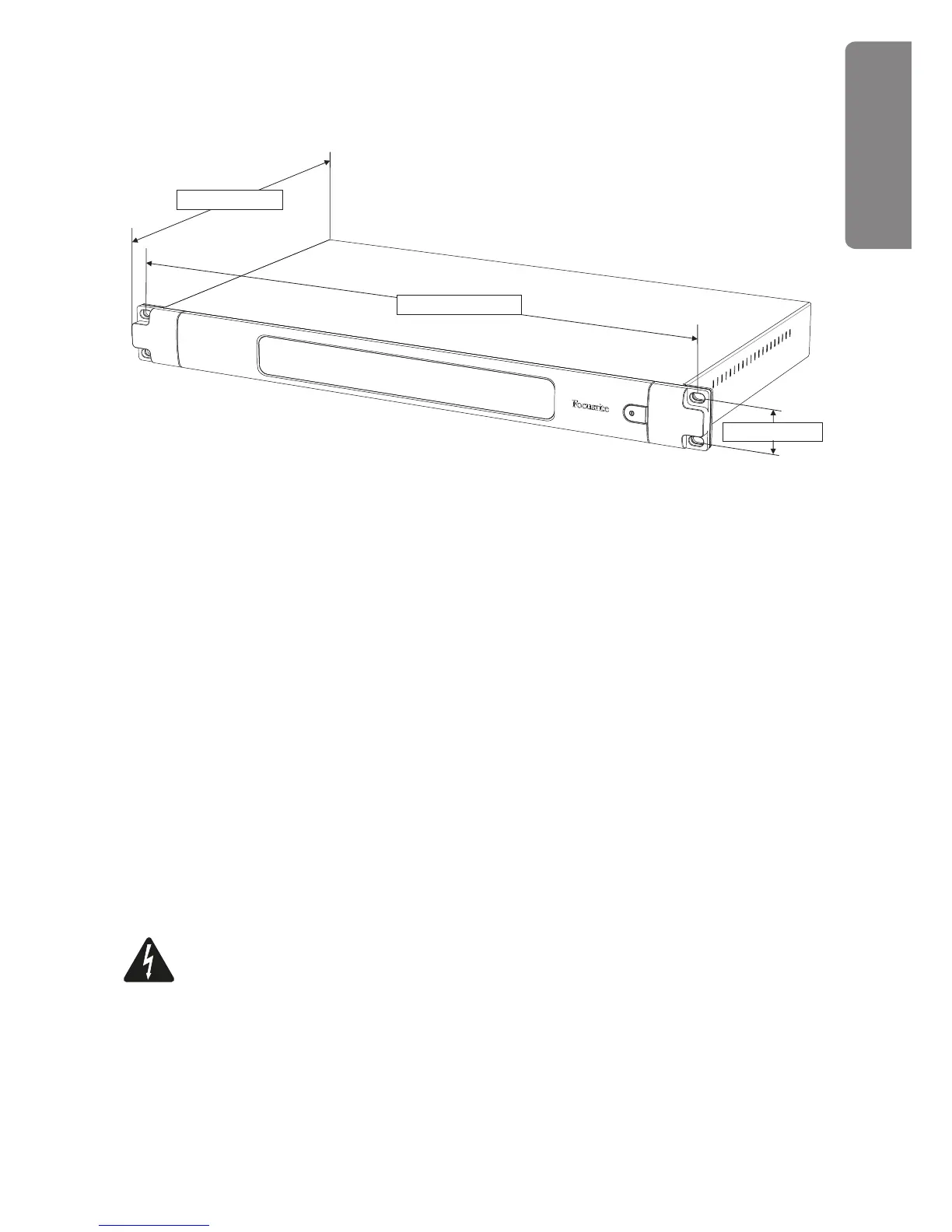

RedNet 6 dimensions are illustrated in the diagram above.
RedNet 6 requires 1U of vertical rack space and at least 350 mm of rack depth, to allow for cables.
RedNet 6 weighs 3.74 kg and for installations in a fixed environment (e.g., a studio), the front panel
mounting screws will provide adequate support. If the units are to be used in a mobile situation
(e.g., flight-cased for touring, etc.), consideration should be given to using side support rails within
the rack.
RedNet 6 generates little significant heat and is cooled by natural convection.
Ventilation is via slots in the enclosure at both sides. Do not mount RedNet 6 immediately above any
other equipment which generates significant heat, for example, a power amplifier. Also, ensure that
when mounted in a rack, the side vents are not obstructed.
POWER REQUIREMENTS
RedNet 6 is mains-powered. It incorporates a ‘Universal’ power supply, which can operate on any AC
mains voltage from 100 V to 240 V. The AC connection is made via a standard 3-pin IEC connector on
the rear panel. A mating IEC cable is supplied with the unit, which should be terminated with a mains
plug of the correct type for your country.
The AC power consumption of the RedNet 6 is 30VA.
Please note that there are no fuses in RedNet 6, or other user-replaceable components of
any type. Please refer all servicing issues to the Customer Support Team (see “Customer
Support and Unit Servicing” on page 55).
31.8mm / 1.25"
465.0mm / 18.30"
247.0mm / 9.76"
