REDNET 1
UNIT CONNECTIONS AND FEATURES

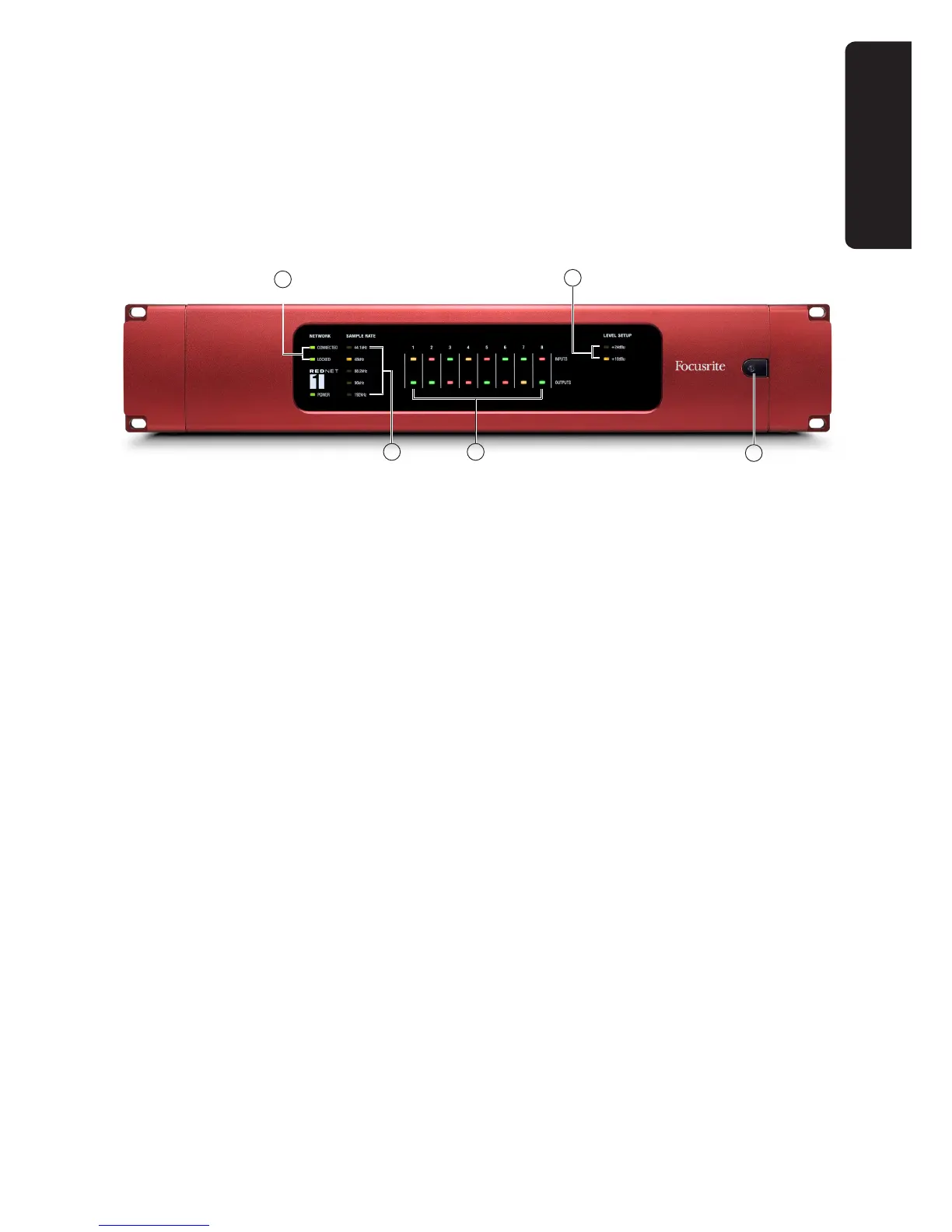

RedNet 1 - Front Panel
1. AC Power switch
2. Tricolour LEDs indicating signal level at each A-D and D-A converter:
Green – signal level above -42 dBFS
Yellow – signal level above -6 dBFS
Red – signal level is 0 dBFS (digital clipping)
3. NETWORK status flags – two green LEDs confirming network status:
CONNECTED – illuminates when the unit is connected to an active Ethernet network
LOCKED – illuminates when a valid sync is received via the network
4. SAMPLE RATE indication five yellow LEDs; only one of these (44.1 kHz, 48 kHz, 88.2 kHz,
96 kHz, 192 kHz) will be lit at a time, to confirm the sample rate that the system is running at.
5. LEVEL SETUP indication two yellow LEDs; one of these will be illuminated to confirm the
analogue reference level set for the unit, +24 dBu or +18 dBu. This is the analogue level which
equates to the internal maximum digital clip level of 0 dBFS.
REDNET 1
3
5
1
4 2
