Focusrite RedNet - Page 35

35

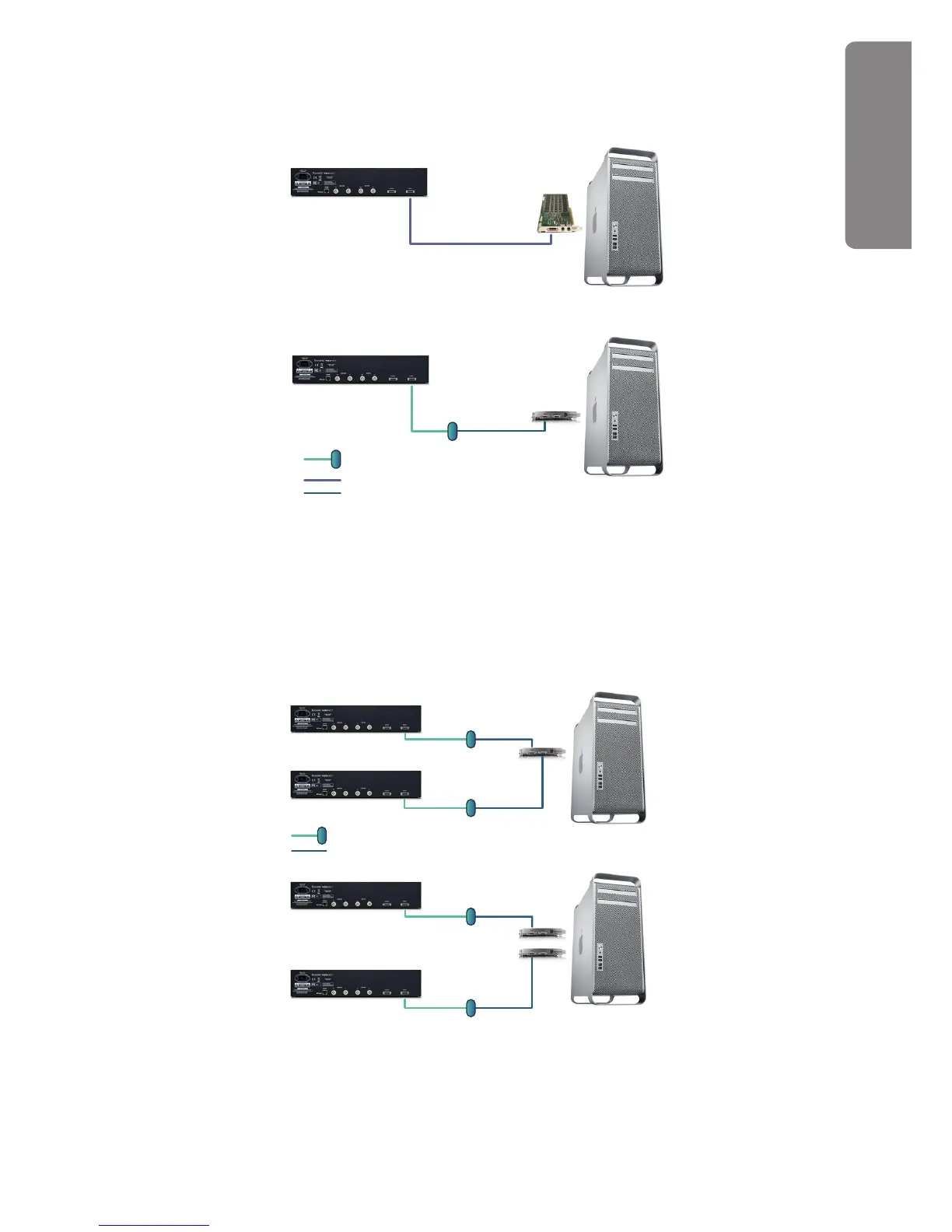

The diagrams below show two different methods of connecting two RedNet 5 units to a Pro Tools|HDX
system; the only difference for a Pro Tools|HD system would be that the adaptor cable may be omitted:
The following diagrams show a single RedNet 5 connected to a single Pro Tools card; an HDX system
requires the supplied DigiLink-to-Mini DigiLink adaptor:
RedNet 5
PRIMARY
DigiLink cable
Pro Tools|HD card
Mac/PC
RedNet 5
PRIMARY
Pro Tools|HDX card
Mac/PC
DigiLink to Mini DigiLink Adaptor
DigiLink cable
Mini DigiLink cable
PRIMARY
PRIMARY
Mac/PC
RedNet 5 #1
RedNet 5 #2
Pro Tools|HDX card
Mac/PC
PRIMARY
PRIMARY
RedNet 5 #1
RedNet 5 #2
Pro Tools|HDX cards
DigiLink to Mini DigiLink Adaptor
Mini DigiLink cable
REDNET 5
