1. Camera Installation
1.1 Camera Introduction

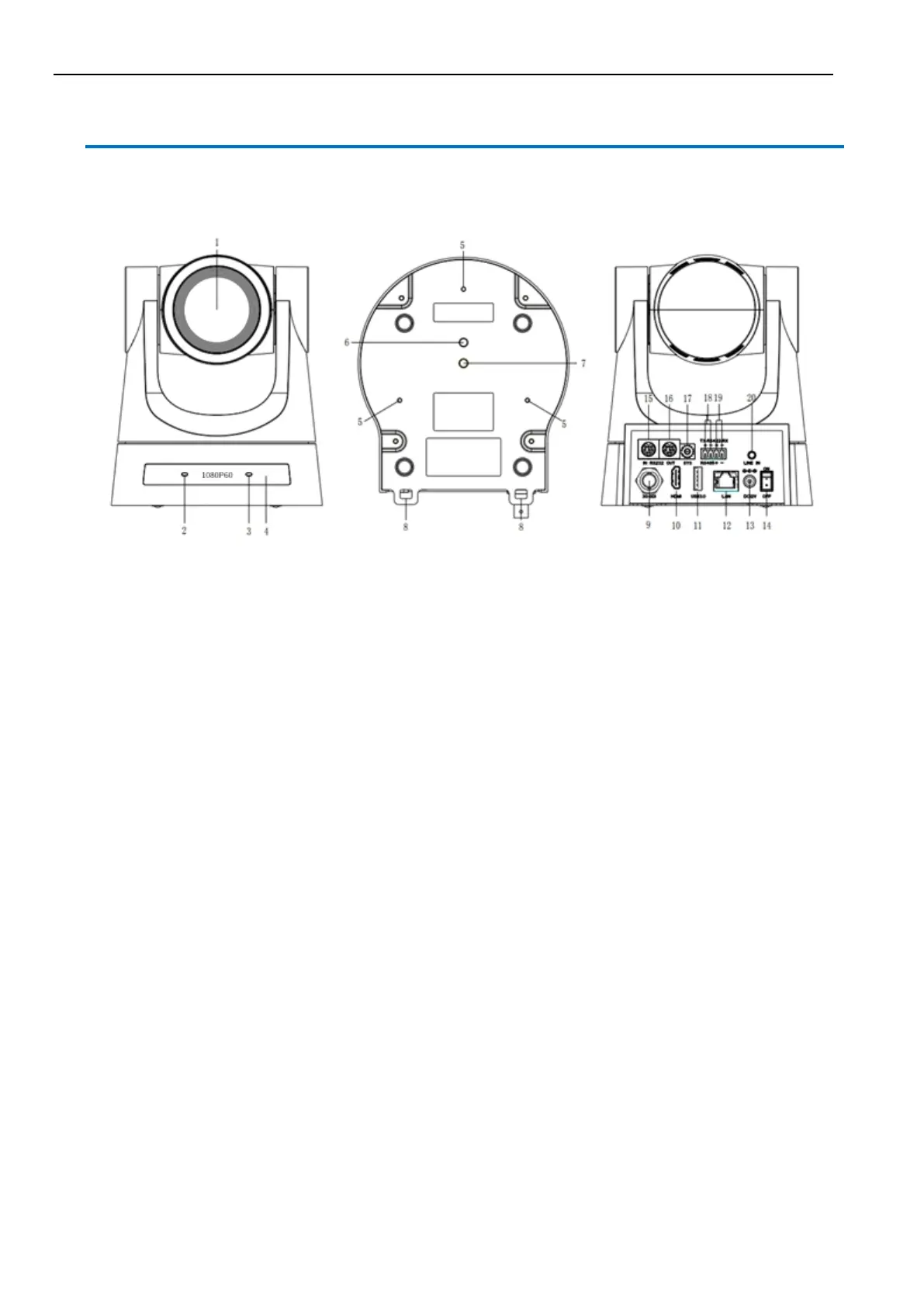

Figure 1.1 Interface of ST (standard) Model
1. Camera Lens
2. Power Light
3. Status Light
4. Infrared Receiver
5. Reserved Mounting Hole
6. Tripod Screw Hole
7. Screw Hole for Tripod
8. Safe Lock
9. 3G-SDI Output Interface
10. HDMI Output Interface
11. USB2.0 Interface
12. LAN（NDI） Port
13. DC12V Input Power Supply Socket
14. Power Switch
15. RS232 Control Interface (input )
16. RS232 Control Interface (output )
17. Rotary DIP Switch
18. RS485 Input (left +, right-)
19. 19 RS422 Input
20. Audio Input Interface (Line-in)
1.2 Interfaces and Connection
