MATRIX

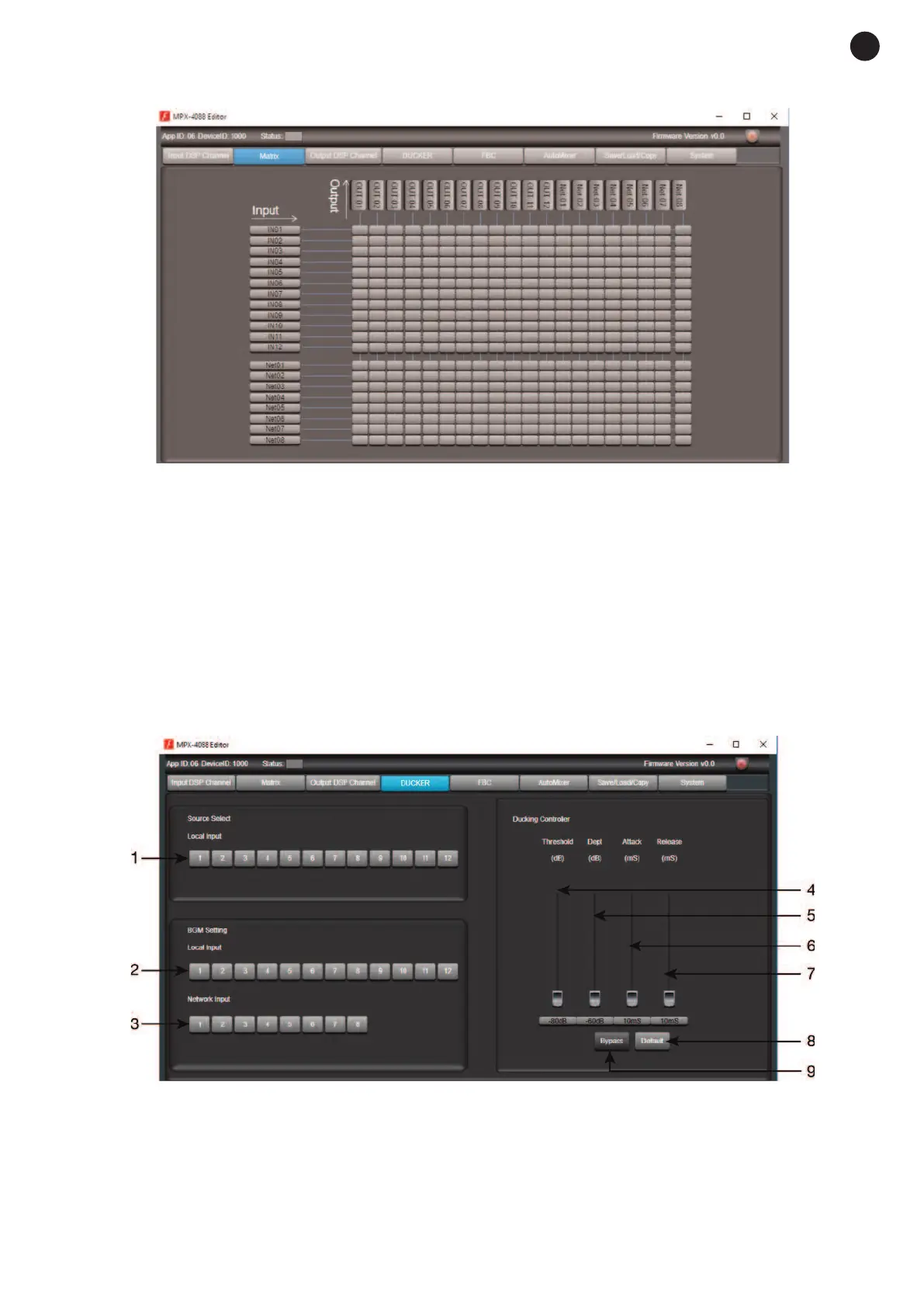

With the MATRIX function, the inputs are allocated to the outputs. By clicking on the grey rectangles, they
turn green, indicating the correct allocation of the input channel to the chosen output.
IN/OUT 1~8 correspond to the analogue audio inputs/outputs available on the rear panel.
IN/OUT 9~12 correspond to the digital audio inputs/outputs (RD ports) for models MPX-400MIC,
MPX-410ES and MPX-430VS, available on the rear panel.
IN/OUT NET 1~8: correspond to the broadcast inputs/outputs.
OUTPUT DSP CHANNEL
The same menu as the DSP Input Channel but without the expander module and phantom power supply. The
parametric equalization is 8-band instead of 5.
DUCKER
The DUCKER function allows one or several channels to be attenuated depending on the signal level of the
channels with priority.
Source Select
1.- Local Input: selection of input channels with priority.
- 13 -
