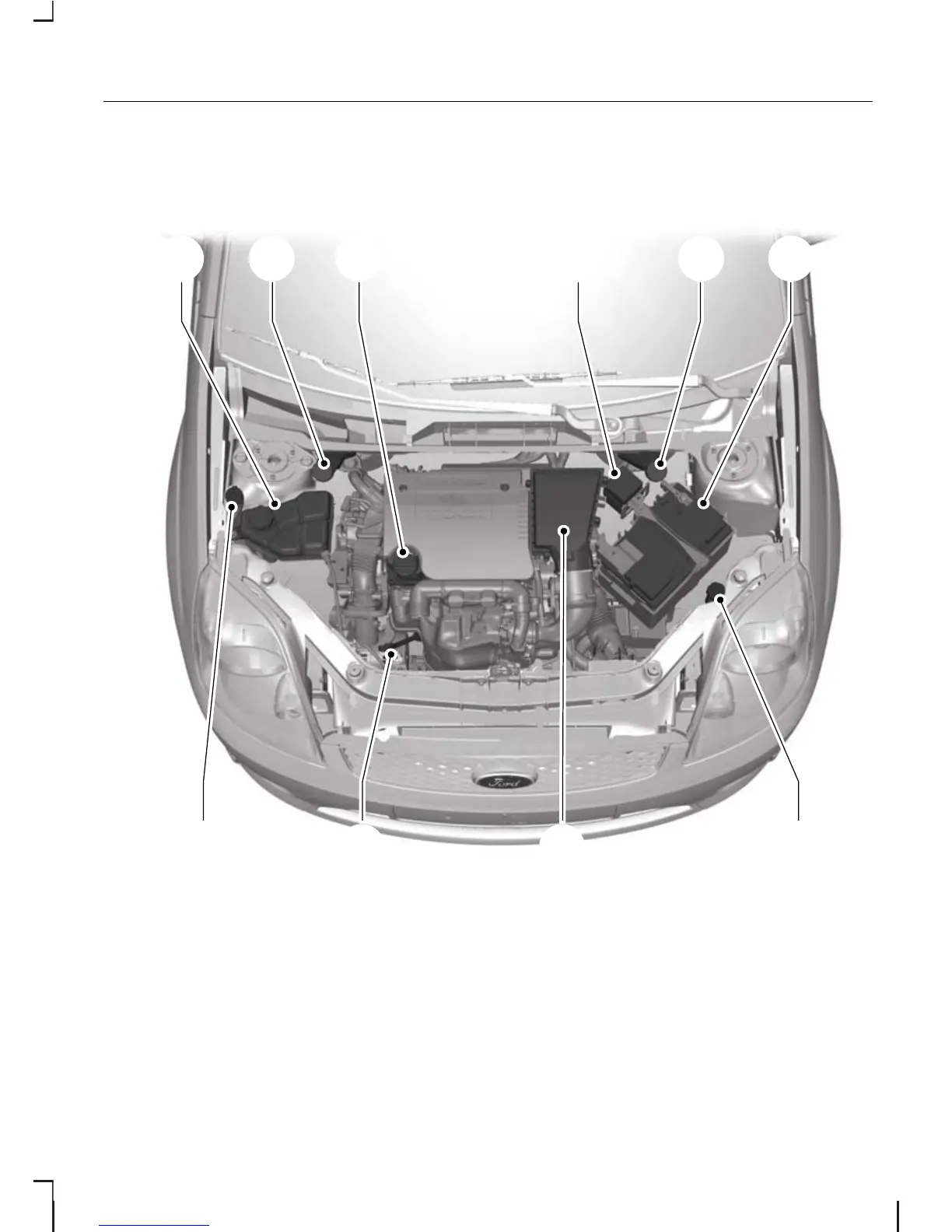

ENGINE COMP
ARTMENT OVERVIEW - 1.6L
DURA
TORQ-TDCI (DV) DIESEL
A
B
C
D
F
E
G
H
J
I
E90586
Engine coolant reservoir
*
: See
Engine coolant check
(page 119).
A
Brake and clutch fluid reservoir (right-hand drive)
*
: See
Brake and
clutch fluid check
(page 120).
B
Engine oil filler cap
*
: See
Engine oil check
(page 118).
C
Engine compartment fuse box. See
Fuses
(page 106).
D
117
Maintenance
118
120
