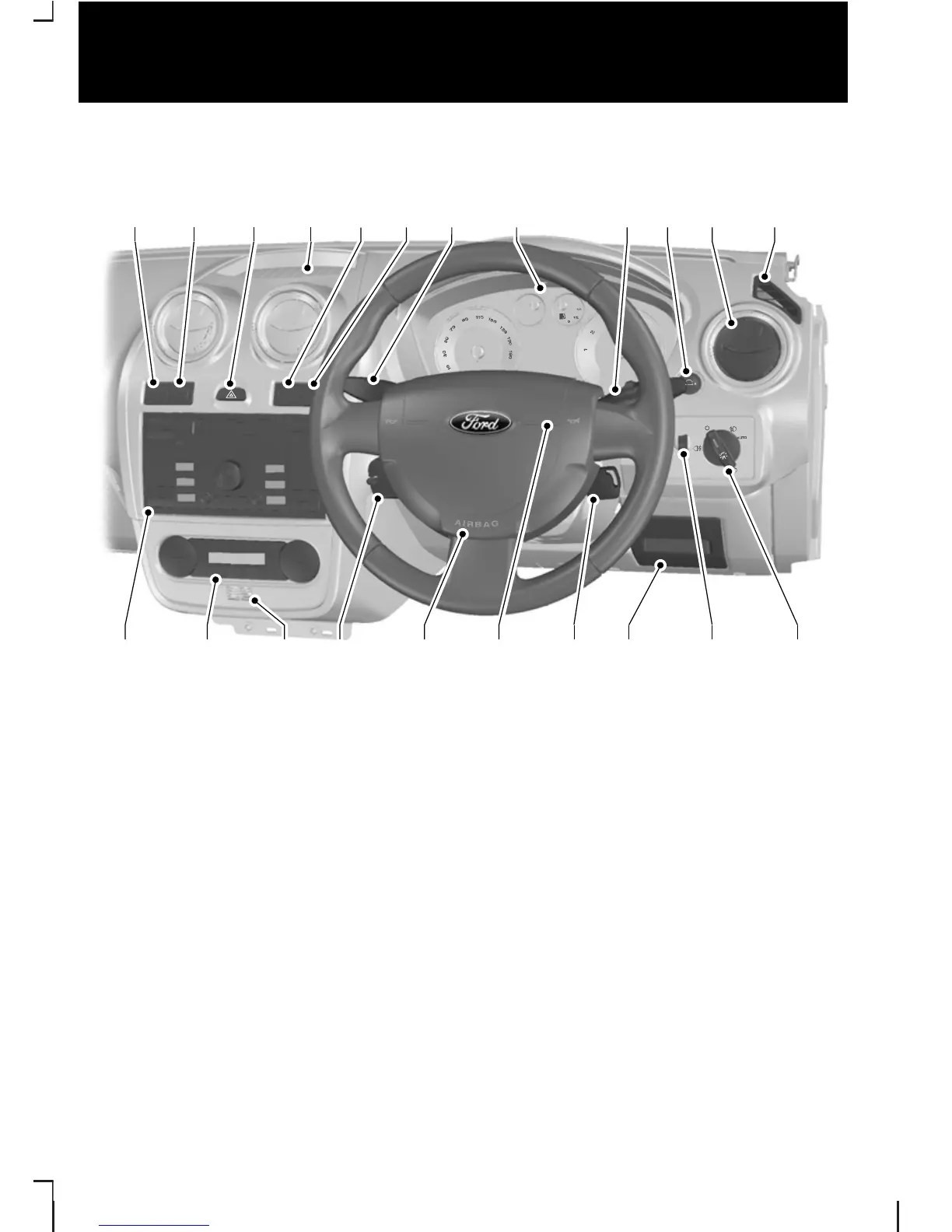

Instrument panel overview - RHD
A
V
T
R
M
N
O
P
Q
S
U
B
D
F
G
H
E
K
J
I
L
C
E89018
Stability control switch or coin holder
.
A
Airbag deactivated warning lamp or coin holder
.
B
Hazard warning flasher switch.
C
Storage tray
.
D
Heated windscreen switch.
E
Heater rear window switch.
F
Main beam, direction indicators, headlamp flasher and information
display controls.
G
Instrument cluster
.
H
Wiper lever
.
I
Luggage compartment release.
J
10
Quick start
11
13
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
7
About this Handbook
7
Symbols Glossary
7
Parts and Accessories
7
Quick Start
10
Cooling the Interior Quickly
16
Child Safety
21
Child Seats
21
Booster Cushions
22
Booster Seat
22
Child Seat Positioning
23
Booster Cushion
23
Child Safety Locks
24
Occupant Protection
25
Principle of Operation
25
Occupant Protection
26
Seat Belts
27
Fastening the Seat Belts
28
Seat Belt Height Adjustment
28
Using Seat Belts During Pregnancy
29
Disabling the Passenger Airbag
29
Keys and Remote Controls
31
General Information on Radio Frequencies
31
Programming the Remote Control
31
Changing the Remote Control Battery
32
Keys and Remote Controls
33
Locks
34
Locking and Unlocking
34
Automatic Relocking
35
Engine Immobiliser
36
Principle of Operation
36
Coded Keys
36
Arming the Engine Immobiliser
36
Disarming the Engine Immobiliser
36
Alarm
37
Arming the Alarm
37
Automatic Arming Delay
37
Disarming the Alarm
37
Steering Wheel
38
Adjusting the Steering Wheel
38
Audio Control
38
Steering Wheel
39
Wipers and Washers
40
Windscreen Wipers
40
Windscreen Washers
41
Rear Window Wiper and Washers
41
Intermittent Wiping
41
Reverse Gear Wipe
41
Adjusting the Windscreen Washer Jets
42
Checking the Wiper Blades
42
Changing the Wiper Blades
43
Lighting
44
Lighting Control
44
Front Fog Lamps
45
Main/Dipped Beam
45
Headlamp Flasher
45
Rear Fog Lamps
46
Headlamp Levelling
46
Hazard Warning Flashers
47
Direction Indicators
47
Interior Lamps
47
Removing a Headlamp
48
Changing a Bulb
49
Rear Lamps
51
Central High Mounted Stop Lamp
52
Luggage Compartment Lamp
53
Bulb Specification Chart
54
Windows and Mirrors
55
Electric Windows
55
Exterior Mirrors
55
Electric Exterior Mirrors
56
Interior Mirror
57
Instruments
58
Gauges
58
Warning Lamps and Indicators
59
Abs Warning Lamp
59
Fuel Gauge
59
Airbag Warning Lamp
59
Brake System Warning Lamp
59
Front Fog Lamp Indicator
60
Frost Warning Lamp
60
Direction Indicator
60
Glow Plug Indicator
60
Door Open Warning Lamp
60
Headlamp Indicator
60
Engine Warning Lamp
60
Ignition Warning Lamp
60
Low Fuel Level Warning Lamp
60
Main Beam Indicator
61
Powertrain Warning Lamp
61
Oil Pressure Warning Lamp
61
Overdrive Indicator
61
Power Steering Warning Lamp
61
Information Displays
63
General Information
63
Information Displays
64
Personalised Settings
65
Information Messages
65
Climate Control
69
Principle of Operation
69
Air Vents
69
Manual Climate Control
70
Climate Control
71
Automatic Climate Control
72
Air Distribution
73
Recirculated Air
73
Heated Windows and Mirrors
74
Auxiliary Heater
74
Sunroof
75
Seats
76
Sitting in the Correct Position
76
Manual Seats
76
Rear Seats
78
Head Restraints
78
Creating a Level Load Floor
78
Folding the Seatbacks down
78
Heated Seats
79
Removing the Head Restraint
79
Front Seat Armrest
80
Convenience Features
81
Sun Visors
81
Cigar Lighter
81
Glove Box
81
Storage Compartments
81
Rear Seat Armrest
83
Starting the Engine
84
General Information
84
Ignition Switch
84
Starting a Petrol Engine
84
Engine Idle Speed after Starting
85
Flooded Engine
85
Starting a Diesel Engine
86
Switching off the Engine
86
Fuel and Refuelling
87
Safety Precautions
87
Fuel Quality - Petrol
87
Fuel Quality - Diesel
87
Catalytic Converter
87
Fuel Filler Flap
88
Refuelling
88
Fuel Consumption
88
Technical Specifications
89
Transmission
90
Manual Transmission
90
Brakes
91
Automatic Transmission - 4-Speed Automatic Transmission (4F27E)
91
Drive Modes
93
Brakes
94
Principle of Operation
94
Hints on Driving with ABS
94
Parking Brake
95
Parking on a Hill
95
Releasing the Parking Brake
95
Applying the Parking Brake
95
Stability Control
96
Principle of Operation
96
Using Stability Control
97
Parking Aid
98
Principle of Operation
98
Using the Parking Aid
98
Parking Aid
99
Load Carrying
100
General Information
100
Luggage Covers
100
Roof Racks and Load Carriers
100
Towing
101
Towing a Trailer
101
Detachable Tow Ball
101
Steep Gradients
101
Inserting the Tow Ball Arm
102
Driving Without a Trailer
104
Driving Hints
105
General Driving Points
105
Running-In
105
Status after a Collision
106
Fuel Cut-Off Switch
106
Inspecting Safety System Components
107
Fuses
108
Changing a Fuse
108
Fuse Labels
108
Fuse Box Locations
110
Vehicle Recovery
111
Towing Points
111
Towing the Vehicle on Four Wheels
111
Vehicle Recovery
112
Maintenance
113
General Information
113
Opening and Closing the Bonnet
114
Engine Compartment Overview - 1.25L Duratec-16V (Sigma)/1.4L Duratec-16V (Sigma)/1.6L Duratec-16V (Sigma)
115
Engine Compartment Overview - 1.4L Duratorq-Tdci (DV) Diesel
117
Engine Compartment Overview - 1.6L Duratorq-Tdci (DV) Diesel
119
Engine Oil Check
120
Checking the Oil Level
120
Engine Coolant Check
121
Brake and Clutch Fluid Check
122
Topping up the Coolant
122
Power Steering Fluid Check
122
Washer Fluid Check
123
Technical Specifications
124
Vehicle Care
127
Cleaning the Exterior
127
Cleaning the Rear Window
127
Cleaning the Chrome Trim
127
Body Paintwork Preservation
127
Cleaning the Headlamps
127
Cleaning the Interior
128
Repairing Minor Paint Damage
128
Vehicle Battery
129
Battery Care
129
Using Booster Cables
129
Vehicle Battery
130
Wheels and Tyres
131
General Information
131
Changing a Road Wheel
131
Spare Wheel
131
Locking Wheel Nuts
131
Vehicle Jack
131
Removing a Road Wheel
133
Installing a Road Wheel
134
Tyre Repair Kit
135
Inflating the Tyre
137
Checking the Tyre Pressure
140
Tyre Care
141
Using Winter Tyres
141
Using Snow Chains
141
Technical Specifications
142
Telephone
144
General Information
144
Telephone Setup
144
Making a Phone an Active Phone
145
Phonebook Categories
145
Bluetooth Setup
146
Telephone Controls
147
Using the Telephone - Vehicles Without: Navigation System
148
Using the Telephone - Travel Pilot EX
151
Voice Control
152
Handling an Incoming Call
152
Voice Control
154
Principle of Operation
154
Using Voice Control
155
System Operation
155
Audio Unit Commands
155
CD Player/CD Changer
155
Telephone Commands
160
Create a Phonebook
161
Phone Functions
162
Main Settings
164
Navigation System Commands
165
Climate Control Commands
165
Vehicle Identification
168
Vehicle Identification Plate
168
Vehicle Identification Number (VIN)
168
Engine Number
168
Technical Specifications
169
Weights
169
Dimensions
171
Type Approvals Type Approvals
175
Appendices
178
Electromagnetic Compatibility
178
Type Approvals
179
