Fortinet FortiGate FortiGate-100 Administration Guide

236 01-28006-0003-20041105 Fortinet Inc.
RADIUS server options Users and authentication
RADIUS server options

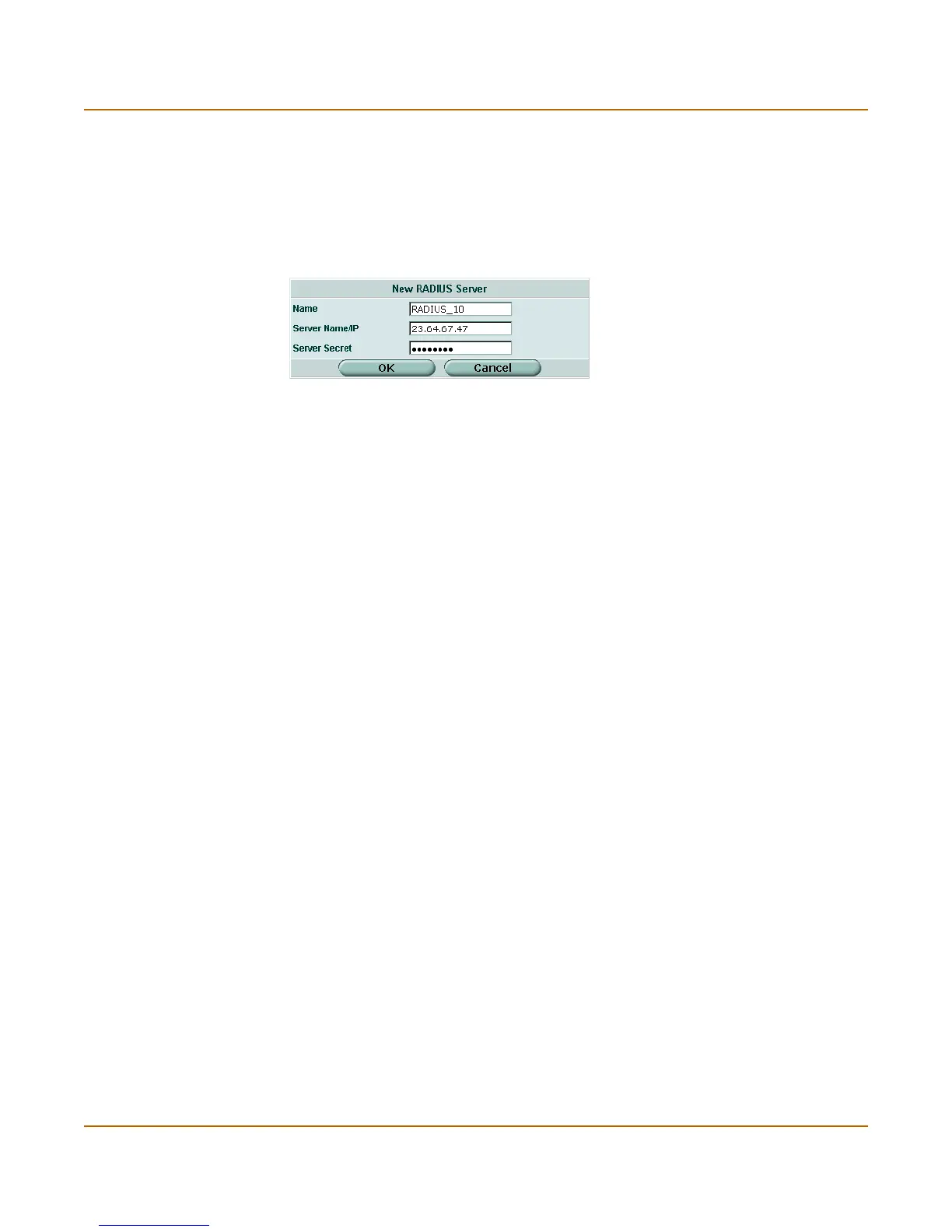

Figure 115:RADIUS configuration
To configure the FortiGate unit for RADIUS authentication
1 Go to User > RADIUS.
2 Select Create New to add a new RADIUS server or select the Edit icon to edit an
existing configuration.
3 Enter the Name of the RADIUS server.
4 Enter the domain name or IP address of the RADIUS server.
5 Enter the RADIUS server secret.
6 Select OK.
To delete a RADIUS server
You cannot delete a RADIUS server that has been added to a user group.
1 Go to User > RADIUS.
2 Select the Delete icon beside the RADIUS server name that you want to delete.
3 Select OK.
LDAP
If you have configured LDAP support and a user is required to authenticate using an
LDAP server, the FortiGate unit contacts the LDAP server for authentication. To
authenticate with the FortiGate unit, the user enters a user name and password. The
FortiGate unit sends this user name and password to the LDAP server. If the LDAP
server can authenticate the user, the user is successfully authenticated with the
FortiGate unit. If the LDAP server cannot authenticate the user, the connection is
refused by the FortiGate unit.
Server Name/IP The domain name or IP address of the RADIUS server.
The Delete and Edit icons.
Name Enter a name to identify the RADIUS server.
Server Name/IP Enter the domain name or IP address of the RADIUS server.
Server Secret Enter the RADIUS server secret.
