Router RIP
FortiGate-800 Administration Guide 01-28006-0008-20041105 153
Networks list
Identify the networks for which to send and receive RIP updates. If a network is not
specified, interfaces in that network will not be advertised in RIP updates.

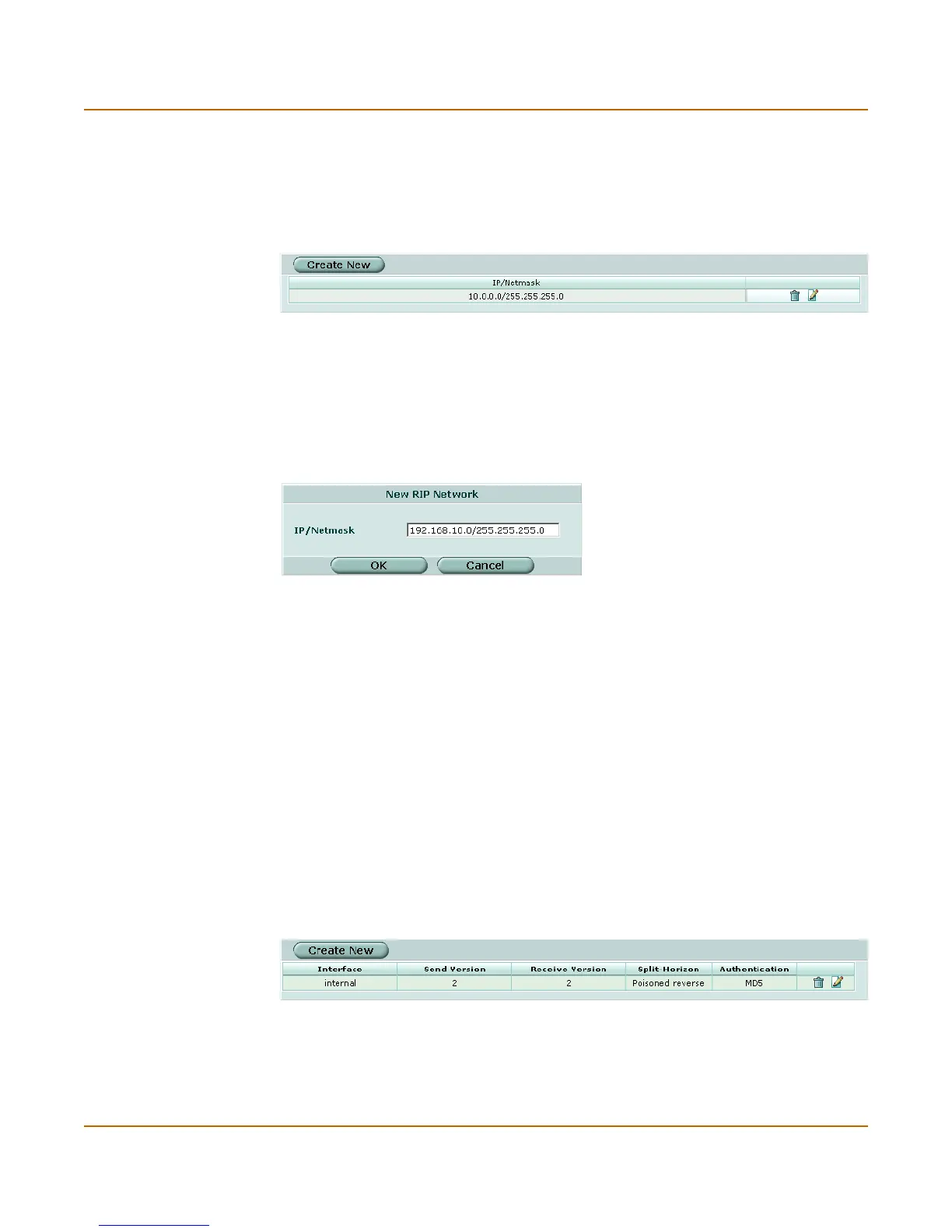

Figure 58: RIP Networks list
Networks options
Figure 59: RIP Networks configuration
To configure a RIP network
1 Go to Router > RIP > Networks.
2 Select Create New to add a new RIP network or select the edit icon beside an existing
RIP network to edit that RIP network.
3 Enter the IP address and netmask for the network.
4 Select OK.
Interface list
Configure RIP version 2 authentication, RIP version send and receive for the specified
interface, and configure and enable split horizon.
Authentication is only available for RIP version 2 packets sent and received by an
interface. Set authentication to None if Send Version or Receive Version are set to 1
or 1 2.
Figure 60: RIP interface list
Create New Add a new RIP network.
IP/Netmask The IP address and netmask for the RIP network.
The Delete, and Edit icons.
Create New Add a new RIP interface.
Interface The FortiGate interface name.
Send Version The RIP send version for this interface.
