WWW.FOSCAM.COM FI8608W User Manual
(3) Plug the power adapter into the camera and then into the power outlet.
CAUTION: Make sure to only use the power adapter supplied with IPCAM. Using a
non-approved power adapter may damage the camera.
(4) The camera takes approximately 10 seconds to start up before it displays an IP address on
the IP Camera Tool (details: 2.1)
(5) When the camera is powered and network cable plugged correctly, the network light on the
network jack will turn on.
2 SOFTWARE OPERATION
2.1 IP Camera Tool

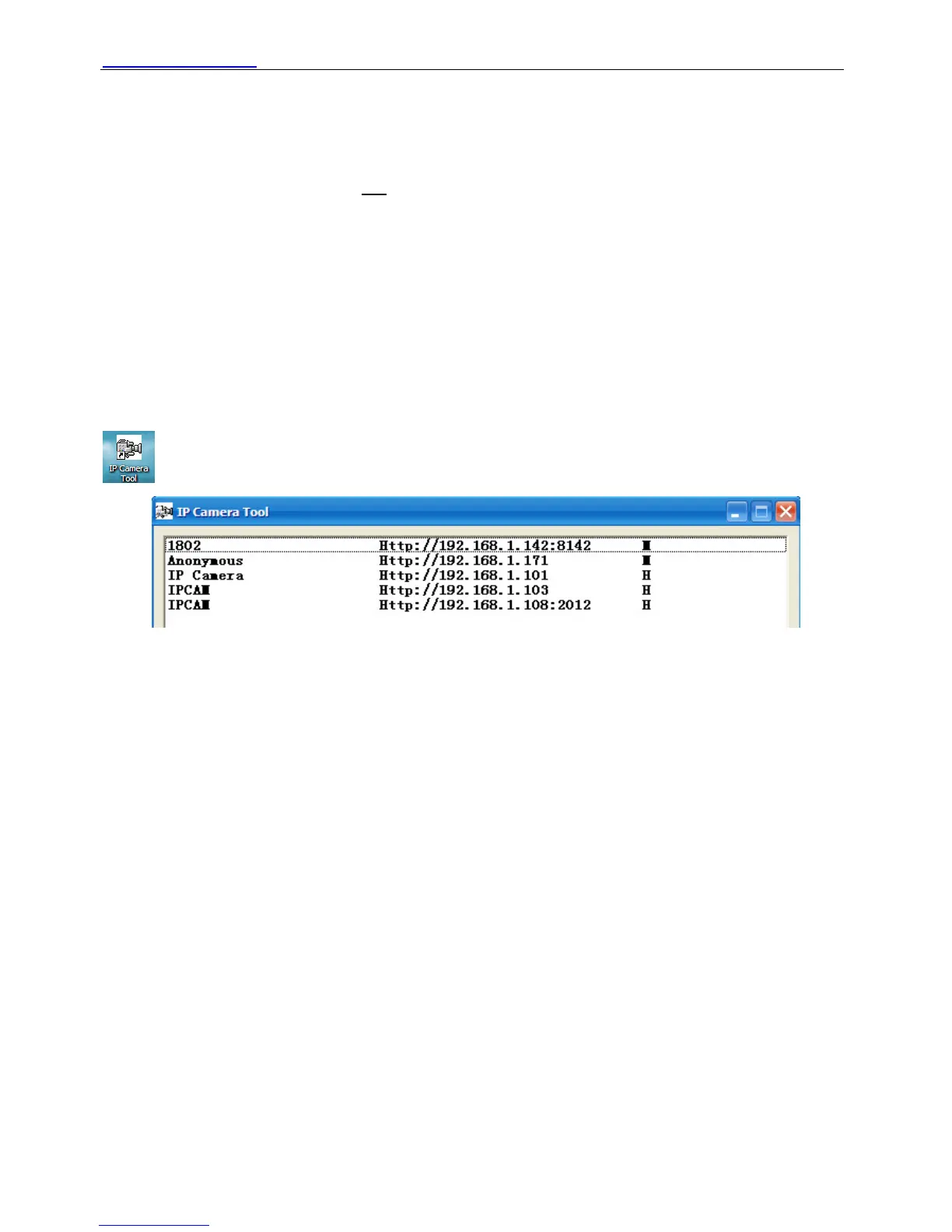

When the Device has been mounted properly, you can double click the icon “IP Camera Tool”
and a dialog box as Figure 2.1 will pop up.
Figure 2.1
The software searches for the IPcam automatically over the LAN.
Our company has two series: H.264 and MJPEG. M shows that the camera belongs to MJPEG
series. H shows that the camera belongs to H.264 series. FI8608W belongs to H.264 series.
There are 3 cases:
(1) If no Camera found in LAN. After about 1 minute of searching, the Result Field will show
“not found IP Server” and the program shuts off automatically.
(2) If IP Cameras have been found within LAN. All the IP Cameras will be listed and the total
number is displayed in the result field as shown in Figure 2.1.
(3) The IP Cameras installed within LAN do not share the same subnet with the monitoring PC.
A prompt is displayed with a “Subnet doesn’t match, dbclick to change!” message. Click the
left mouse button to choose the prompt and click the right mouse, choose Network
Configuration to set the IP address of the Camera to the same subnet as the LAN. (Figure 2.5)
You can choose obtain IP from DHCP server or set a static IP for the camera. (Figure 2.4)
NOTE: If you could not find the camera’s IP on the IP camera tool.
Please check if DHCP is enabled on your router, or disable MAC address filter.
Make sure that the firewall doesn’t block the camera.
Six Options
Choose the IP Camera list and right click; there are six options, Basic Properties, Network
Configuration, Upgrade Firmware, Refresh Camera List, Flush Arp Buffer and About IP Camera
Shenzhen Foscam Intelligent Technology Co., Limited
Tel: 86 755 2674 5668 Fax: 86 755 2674 5168
6
