NVR User Manual
www.foscam.com

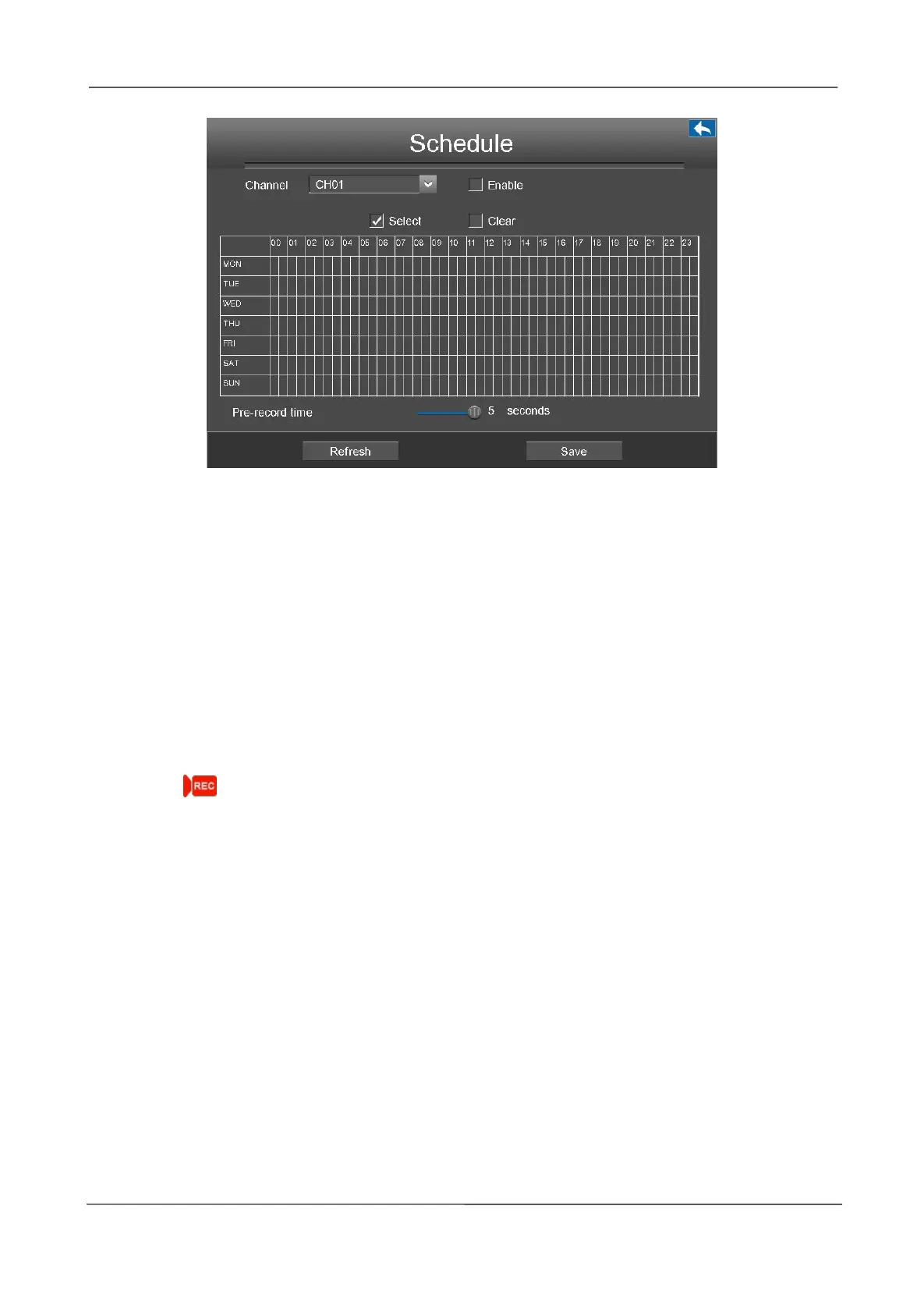

[Enable Schedule Recording]
1．Select channel from drop-down box list.
2．Check the Enable checkbox to enable Schedule Recording function.
3．Check the Select checkbox.
Note: Check Clear checkbox and If you clear the area.
4．Click and drag the mouse in the relative positions. The selected area is red.
5．Click Save button to take effect for one certain channel.
The icon indicate starts schedule recording at the right bottom of the screen for certain
channel.
[Disable Schedule Recording]
1．Select channel from drop-down box list.
2．Uncheck the Enable checkbox to disable Schedule Recording function.
3．Click Save button to take effect for one certain channel.
2.4.4 Device Information
Choose Menu > Device Information in the Menu interface. The Device Information interface is
displayed.
You can view the firmware version, manage HDD Info and system log.
