NVR User Manual
www.foscam.com
1．Select the log type, channel and time.
2．Click the Search button to list all matched logs.
[Backup Log]
The log information can be exported to USB-flash disk for backup.
1．Double-click the log information by the left mouse in the search result list. The status of the log
will change from No to Yes.
2．After the USB-flash disk connect to the NVR by the USB interface. Select the Object from
drop-down list.
3．Select the backup select from drop-down list.
4．Click Backup button and start backup.
The system saves the log to the mobile storage device. For example, 20140320-134022_01.log
indicates that a log is generated at 2014-3-20 13:40:22.
When searching for the log information, you can also select "backup page" or "backup all" to achieve
bulk backup.

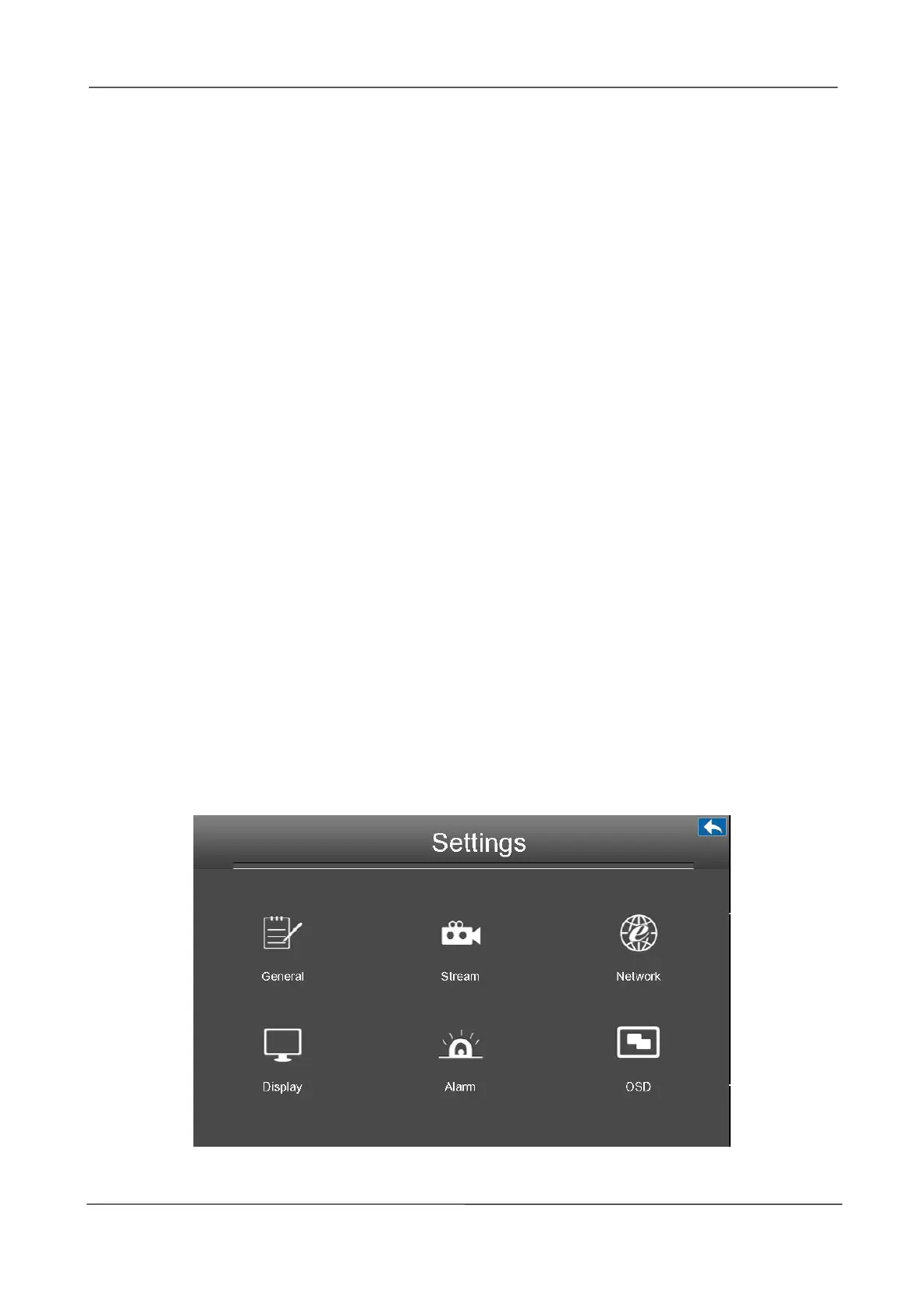

2.4.5 Settings
Choose Menu > Settings in the Menu interface. The Settings interface is displayed. You can
configure the general, video, schedule, network, display, Alarm Settings and OSD.
To Next Page
Loading...
Need help?
General
