Foscam R2 User Manual

8

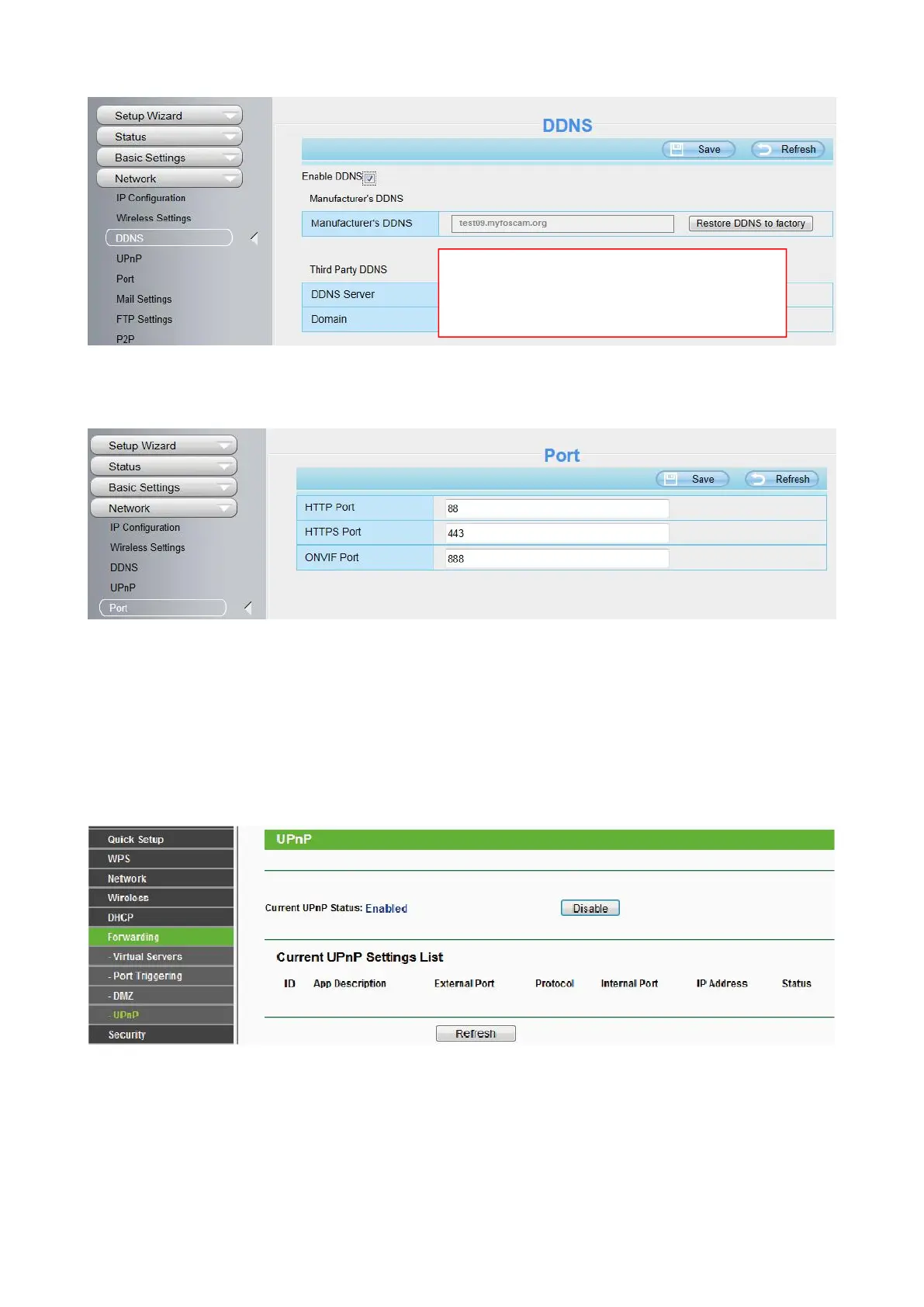

3. You can see the port of your camera here. If you want to set Remote Access for several cameras on
the same network, you will need to change the HTTPS port for each camera.
4. If the UPnP of the router has been enable, you do not need to perform following steps. Otherwise,
you need to select one of the following methods to configure port forwarding on your router. For these
steps, we will be using the TP-LINK brand wireless router as an example.

If there is a UPnP function in your router：
Choose “Forwarding > UPnP”, make sure that the Current UPnP Status is Enabled.

If there is no UPnP function in your router：
You need to manually add port forwarding, refer to the following steps. You need go to the “Forwarding >
Virtual Servers” panel for setup.
Click Enable DDNS and click Save.
The content in the Manufacture’s DDNS
column is the domain name of your camera.

Foscam R2 Specifications

General

Type	IP security camera
PTZ control	Yes
Antenna type	External
Antennas quantity	1
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Cube
Mounting type	Desk
Product color	White
Full HD	No
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Night vision distance	8 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Interface	RJ-45
Power over Ethernet (PoE)	-
Power consumption (typical)	4.8 W
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	70 mm
Height	120 mm
