Foscam R2 User Manual

5

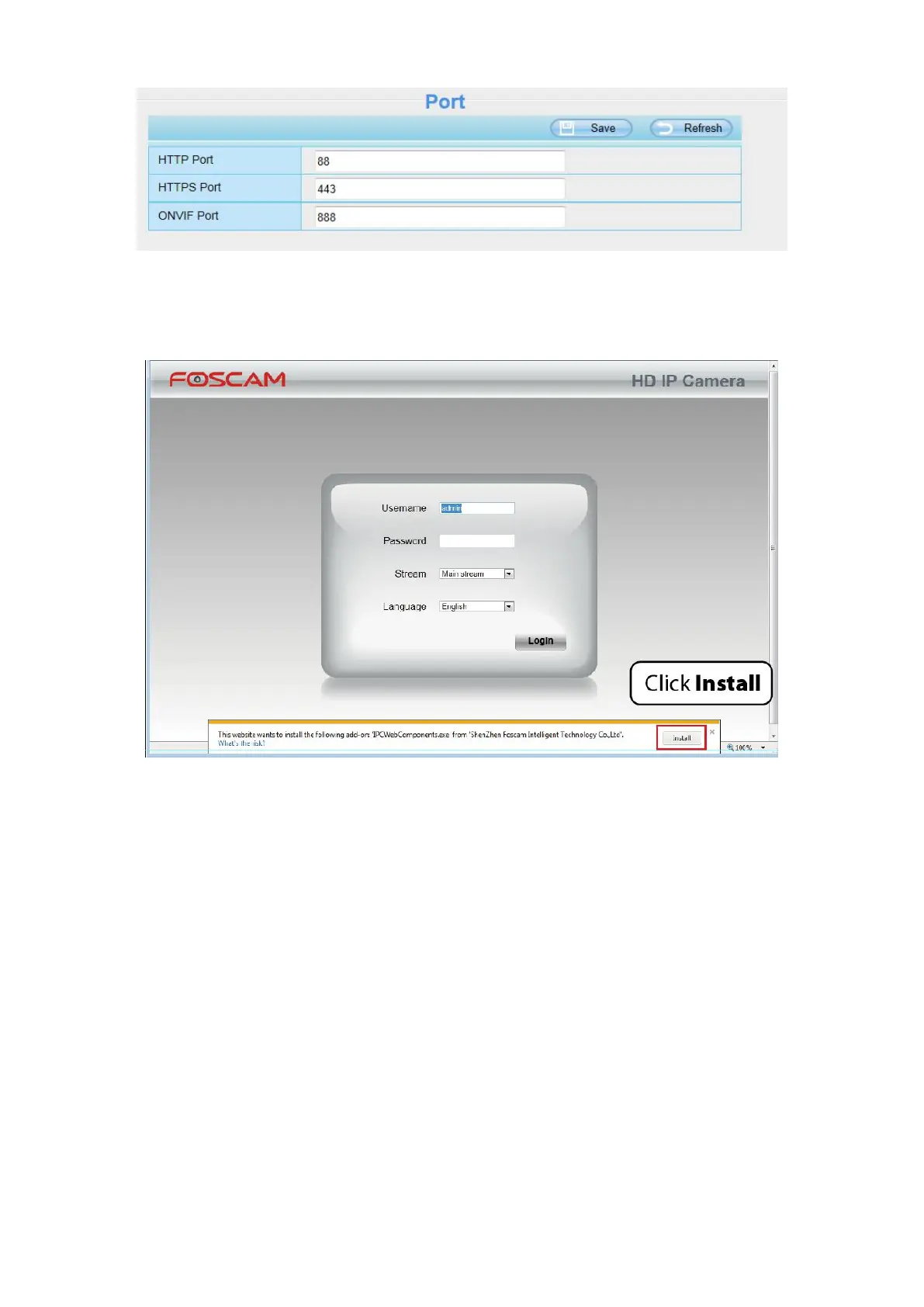

NOTE：
When logging in for the first time, you will need to download and install the add-on.
2.2 Wireless Connection
There are some ways of wireless connection: EZLink connection, soft AP connection and WPS
connection.

EZLink connection: Use the mobile phones or other mobile devices to download APP, then
connect the camera and the wireless router by the APP. The procedure of the EZLink connection,
please refer to the Quick Setup Guide.

WPS connection: WI-FI Protected Set-up, Press and hold the WPS button on your wireless router
and your camera within 60 seconds. So that your camera and wireless router connect successfully.
WPS (WI-FI Protected Set-up)
Before using WPS wireless connection, you need to:

Make sure that your wireless router has the WPS function, and has been properly connected to the

Foscam R2 Specifications

General

Type	IP security camera
PTZ control	Yes
Antenna type	External
Antennas quantity	1
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Cube
Mounting type	Desk
Product color	White
Full HD	No
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Night vision distance	8 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Interface	RJ-45
Power over Ethernet (PoE)	-
Power consumption (typical)	4.8 W
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	70 mm
Height	120 mm
