Foscam R2 User Manual

4
2 Access the IP Camera

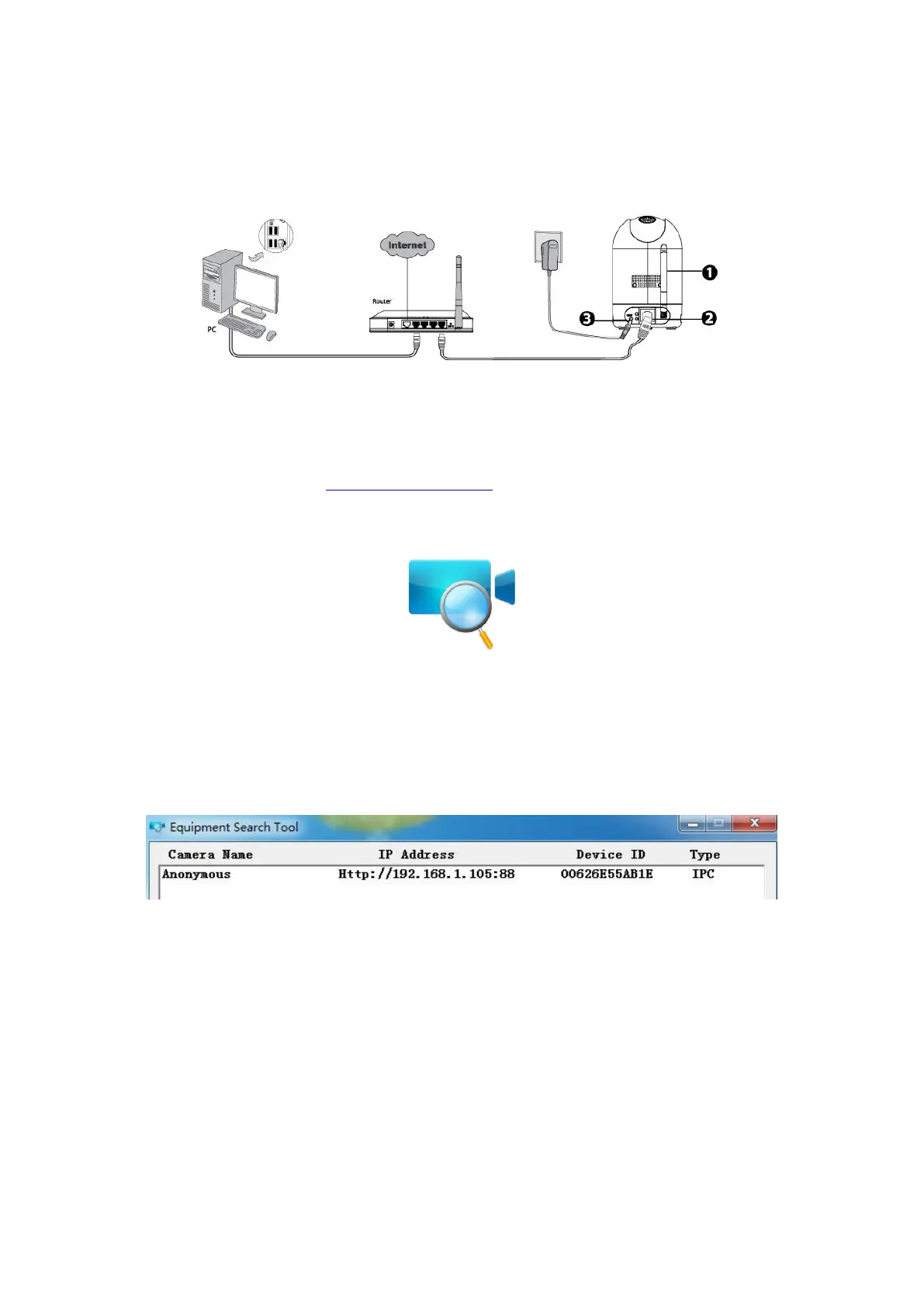

2.1 Wired Connection
1. Mount the antenna and make it stand vertically.
2. Connect the camera to the LAN network (Router or Switch) via network cable.
3. Connect the power adapter to the camera.
4. Visit Foscam official website http://www.foscam.com , select “Support > Download Center >
Software Tools”, then you can find the “Equipment Search Tool”, download the tool to your computer, the
icon shows as below:
The camera supports HTTP and HTTPS protocols, you can access the camera in two ways.
(1) http:// LAN IP + HTTP Port NO.
The default HTTP port NO. is 88. Double click the Equipment Search Tool icon to run, and it should find
the camera’s IP address automatically after you plug in the network cable.
Double click the IP address of the camera; the camera login page should be open in your default
browser.
(2) https:// LAN IP + HTTPS Port NO.
The default HTTPS port NO. is 443. You can use the URL to access the camera: https:// LAN IP +
HTTPS port NO.
Go to Settings - Network - Port panel, you can see and change the HTTP and HTTPS port NO.

Foscam R2 Specifications

General

Type	IP security camera
PTZ control	Yes
Antenna type	External
Antennas quantity	1
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Cube
Mounting type	Desk
Product color	White
Full HD	No
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Night vision distance	8 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Interface	RJ-45
Power over Ethernet (PoE)	-
Power consumption (typical)	4.8 W
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	70 mm
Height	120 mm
