Foscam R2 User Manual

10
otherwise, you must only use http port number.
Video stream: Three modes are supported: video Main, video Sub and audio. Video Sub is a better
choice in bad network condition. If you select audio, you can only hear sound without seeing picture.
For example:
IP: 192.168.1.11
RTSP Port number: 554
User name: admin
Password: 123
Enter either one of the following four URLs in the VLC
1．rtsp://admin:123@192.168.1.11:554/videoMain
2．rtsp:// @192.168.1.11:554/videoMain
3．rtsp://:123@192.168.1.11:554/videoMain
4．rtsp://admin@192.168.1.11:554/videoMain

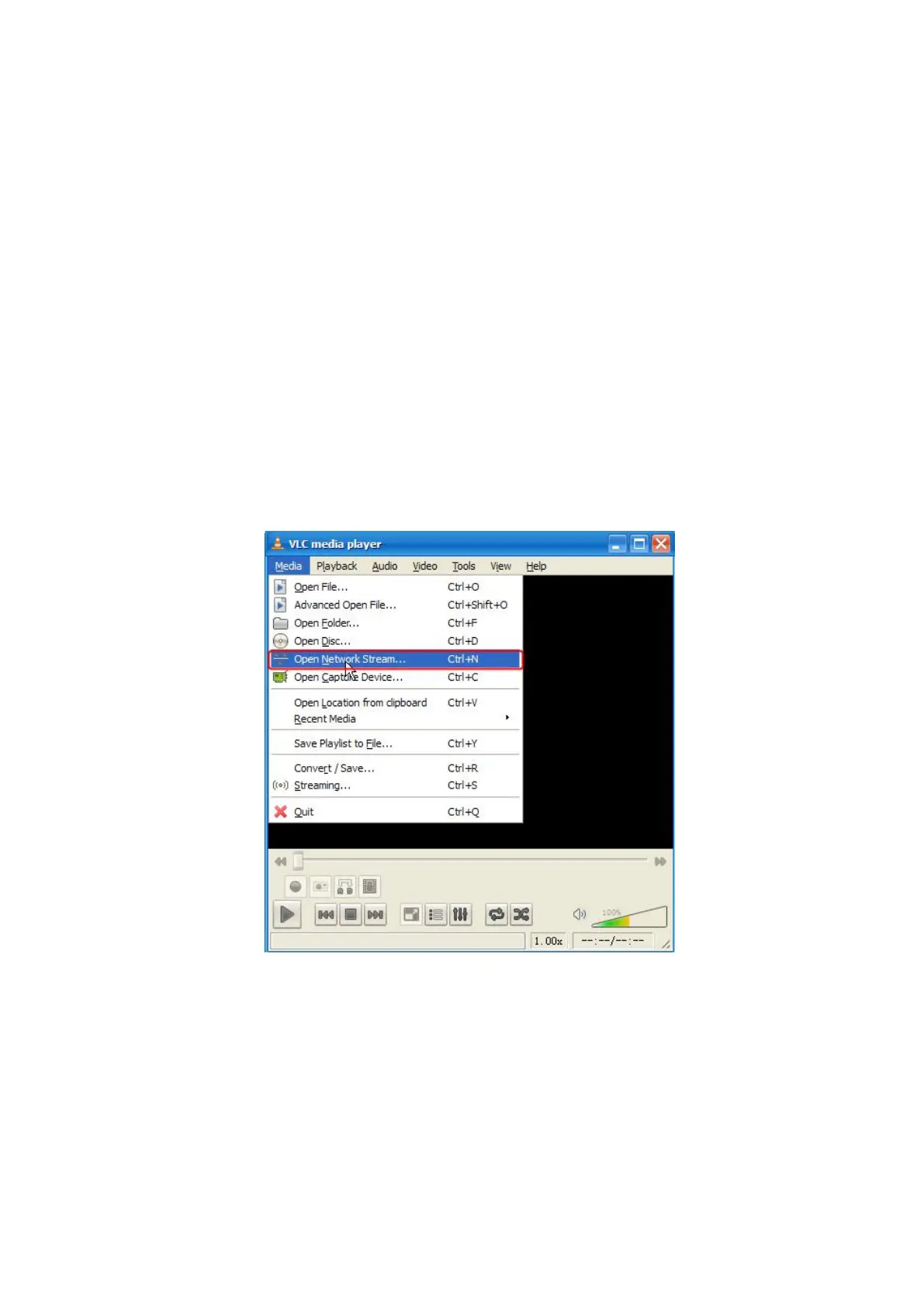

Open the VLC, and go to “Media”--”Open Network Stream” option, then enter the URL in VLC.

Foscam R2 Specifications

General

Type	IP security camera
PTZ control	Yes
Antenna type	External
Antennas quantity	1
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Form factor	Cube
Mounting type	Desk
Product color	White
Full HD	No
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Night vision distance	8 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Interface	RJ-45
Power over Ethernet (PoE)	-
Power consumption (typical)	4.8 W
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	70 mm
Height	120 mm
