18

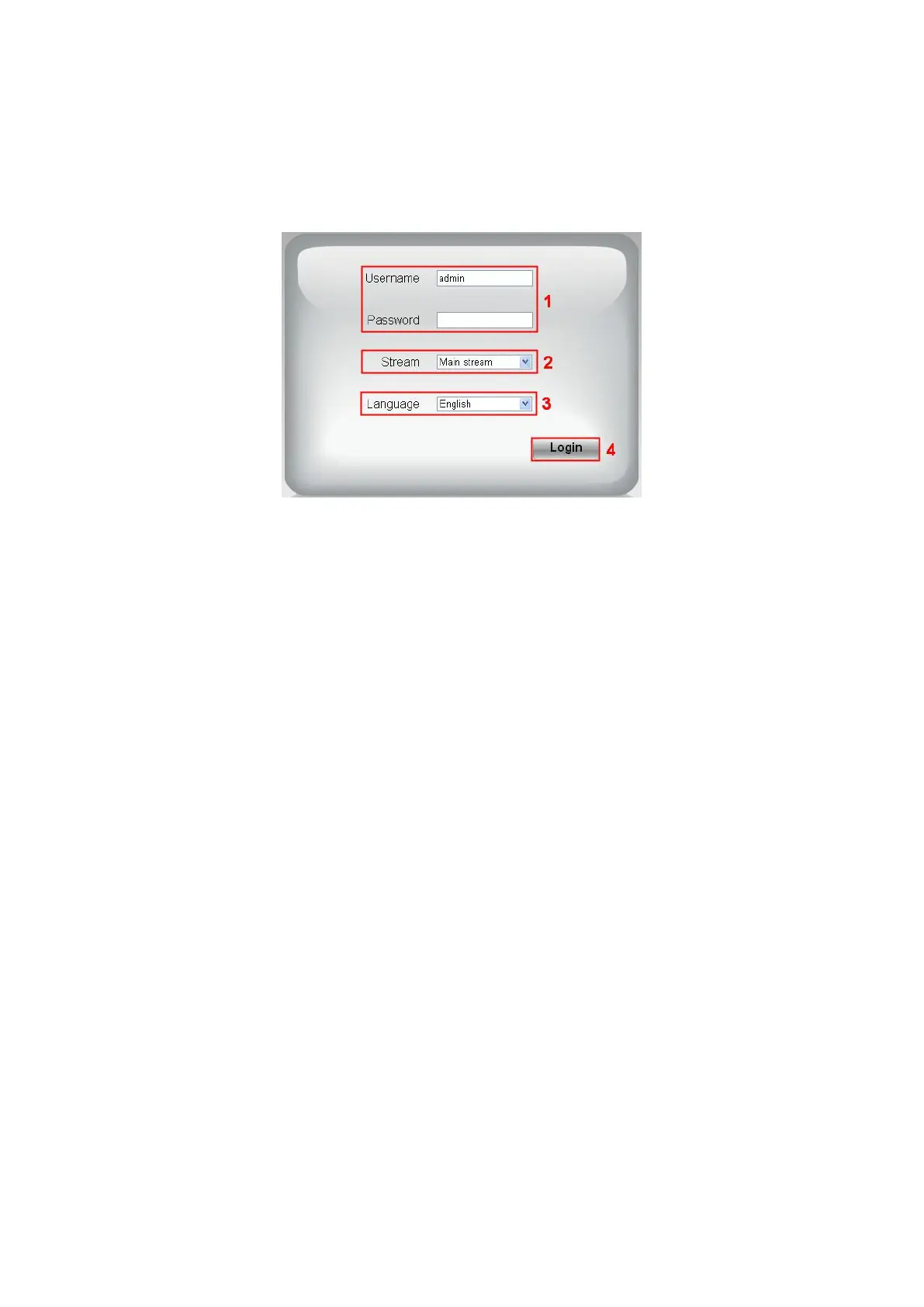

3.6.1 Login Window
Section1 Enter the Username and password
The default administrator username is admin with no password, please change the password at first
using and prevent unauthorized users login the camera.
Section2 Stream
The camera supports two stream modes: Main stream and sub stream. If you want to access the camera
form LAN, here you can select Main stream. If you want to access the camera from Internet, here we
recommend sub stream.
NOTE: When the network bandwidth is bad you'd better select Sub Stream and the video will be more
fluent.
Section3 Select the language
You can select the language you need by clicking on the language dropdown list.
Section4 login the camera
Click Login button.
NOTE: When setting up your camera for the first time, it will request that you modify the default
username / password if both are still set to default. Input the new username and password, click Modify
to complete the modification. You will now use the new username and password to login the camera in
the future.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Foscam SD2X and is the answer not in the manual?

Foscam SD2X Specifications

General IconGeneral
Form factorDome
Mounting typeWall
Product colorWhite
International Protection (IP) codeIP66
Camera pan control-
Minimum illumination0 lx
Optical zoom18 x
Zoom capabilityYes
Number of lenses1
Focal length range5.4 - 97.2 mm
Maximum aperture number3.6
Minimum aperture number1.7
LED typeIR
Night vision distance50 m
Total megapixels2 MP
Maximum resolution1920 x 1080 pixels
Supported video modes240p, 480p, 720p, 1080p
Video formats supportedH.264
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)450 Mbit/s
Ethernet interface typeFast Ethernet
Supported network protocolsIP, TCP, UDP, HTTP, HTTPS, DHCP, SMTP, FTP, RTSP, ONVIF
TypeIP security camera
Antenna typeExternal
CertificationFCC, CE, RoHS
Placement supportedIndoor & outdoor
Connectivity technologyWireless
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Security algorithmsWPA, WPA2
Alert notification typeE-mail
Sensor typeCMOS
Optical sensor size1/2.9 \
Power consumption200 mA
Power consumption (max)20 W
Storage temperature (T-T)-20 - 50 °C
Operating temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)0 - 90 %
Operating relative humidity (H-H)20 - 85 %
Mobile operating systems supportedAndroid, iOS
Cables includedLAN (RJ-45)
Audio system2-way
Weight and Dimensions IconWeight and Dimensions
Depth136 mm
Width246 mm
Height202 mm
Weight1500 g
