Foscam SD2X User Manual

9
9. After completing the above steps, you can begin using your camera.
Note: If you choose installation step 7.2, please refer to the following steps for configuring WiFi . After
setting your WiFi, you can unplug your network cable and the camera works normally.

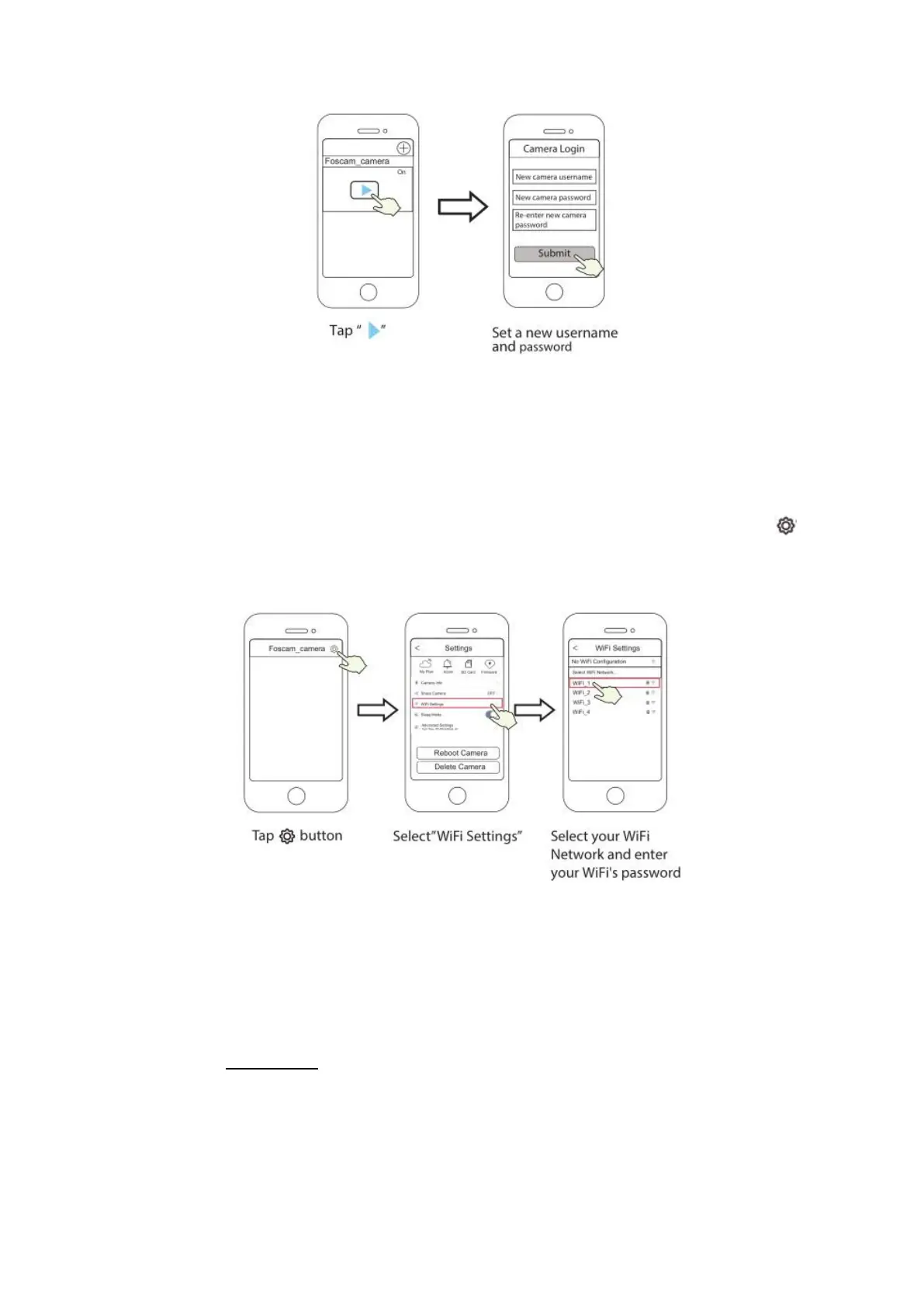

Configure WiFi
If you selected "Skip" in step 7, click play to enter the camera credentials interface > Tap the “ ”
button > tap “WiFi Settings” > select your WiFi network and enter your WiFi’s password. After setting
up successfully, you can view live video without the Ethernet cable.
2.2 Foscam APP Surveillance Window
Please refer to the section 2.1.1 if you install the camera for the first time. You can start to learn about
software
operation after finish quick installation.When you launch the Foscam App, the devices page displays.

Foscam SD2X Specifications

General

Form factor	Dome
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Camera pan control	-
Minimum illumination	0 lx
Optical zoom	18 x
Zoom capability	Yes
Number of lenses	1
Focal length range	5.4 - 97.2 mm
Maximum aperture number	3.6
Minimum aperture number	1.7
LED type	IR
Night vision distance	50 m
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	240p, 480p, 720p, 1080p
Video formats supported	H.264
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)	450 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IP, TCP, UDP, HTTP, HTTPS, DHCP, SMTP, FTP, RTSP, ONVIF
Type	IP security camera
Antenna type	External
Certification	FCC, CE, RoHS
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Security algorithms	WPA, WPA2
Alert notification type	E-mail
Sensor type	CMOS
Optical sensor size	1/2.9 \
Power consumption	200 mA
Power consumption (max)	20 W
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Mobile operating systems supported	Android, iOS
Cables included	LAN (RJ-45)
Audio system	2-way

Weight and Dimensions

Depth	136 mm
Width	246 mm
Height	202 mm
Weight	1500 g
