12
3 Access the Camera in the Web

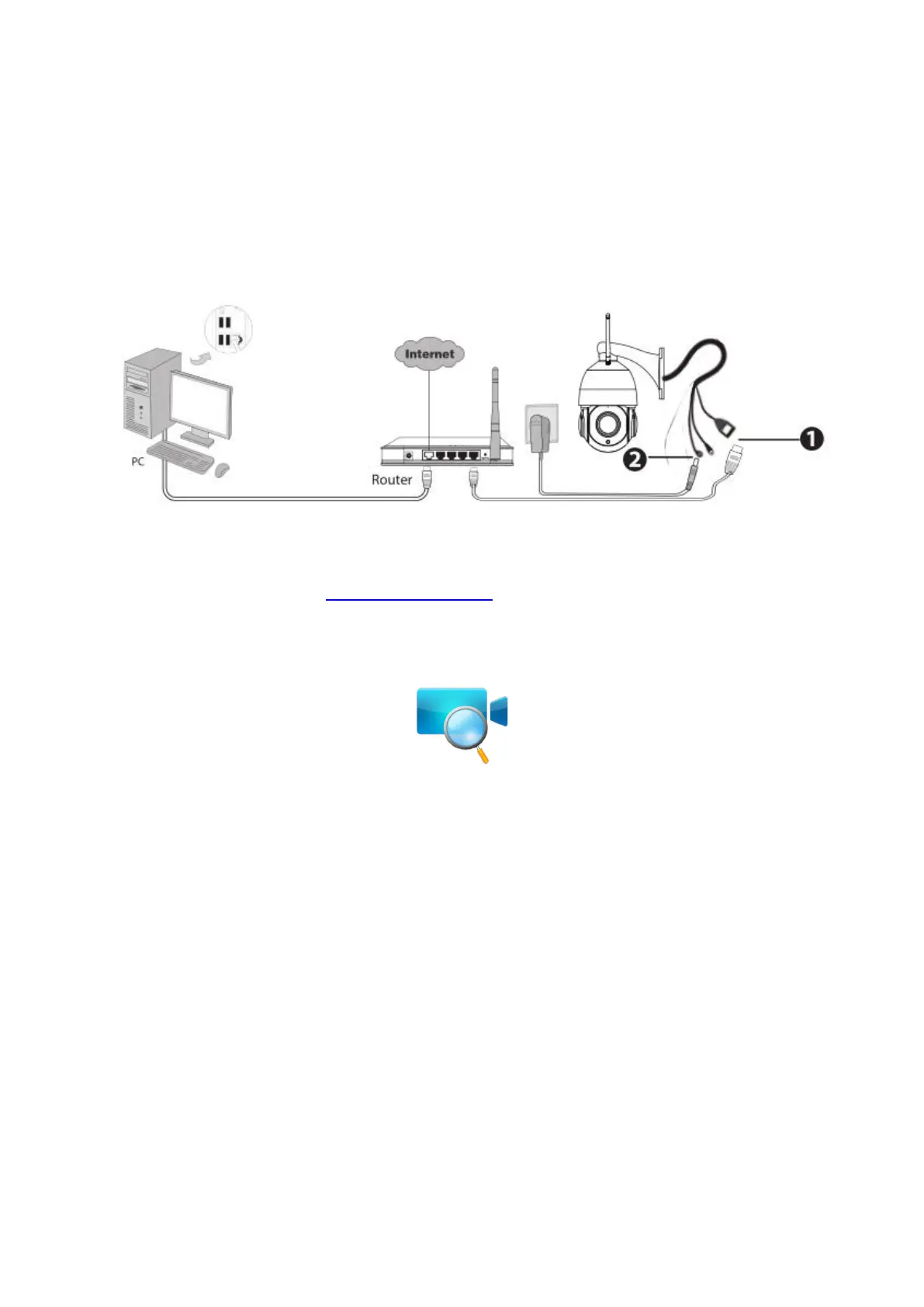

3.1 Hardware Connection & Software Installation
1. Connect the camera to the LAN network (Router or Switch) via network cable.
2. Please connect the power adapter to the camera.
3. Visit Foscam official website http://www.foscam.com , select “Support > Download Center >
Software Tools”, then you can find the “Equipment Search Tool”, download the tool to your computer,
the icon shows as below:
NOTES:
If your computer (Windows OS) supports autorun function, you can find the corresponding file in the
opened control panel.
3.2 Access the Camera in LAN
The camera supports HTTP and HTTPS protocols, you can access the camera in two ways.
(1) Http:// LAN IP + Http Port No.
The default HTTP port NO. is 88. Double click the Search Tool icon to run, and it should find the
camera's IP address automatically after you plug in the network cable.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Foscam SD2X and is the answer not in the manual?

Foscam SD2X Specifications

General IconGeneral
Form factorDome
Mounting typeWall
Product colorWhite
International Protection (IP) codeIP66
Camera pan control-
Minimum illumination0 lx
Optical zoom18 x
Zoom capabilityYes
Number of lenses1
Focal length range5.4 - 97.2 mm
Maximum aperture number3.6
Minimum aperture number1.7
LED typeIR
Night vision distance50 m
Total megapixels2 MP
Maximum resolution1920 x 1080 pixels
Supported video modes240p, 480p, 720p, 1080p
Video formats supportedH.264
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)450 Mbit/s
Ethernet interface typeFast Ethernet
Supported network protocolsIP, TCP, UDP, HTTP, HTTPS, DHCP, SMTP, FTP, RTSP, ONVIF
TypeIP security camera
Antenna typeExternal
CertificationFCC, CE, RoHS
Placement supportedIndoor & outdoor
Connectivity technologyWireless
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Security algorithmsWPA, WPA2
Alert notification typeE-mail
Sensor typeCMOS
Optical sensor size1/2.9 \
Power consumption200 mA
Power consumption (max)20 W
Storage temperature (T-T)-20 - 50 °C
Operating temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)0 - 90 %
Operating relative humidity (H-H)20 - 85 %
Mobile operating systems supportedAndroid, iOS
Cables includedLAN (RJ-45)
Audio system2-way
Weight and Dimensions IconWeight and Dimensions
Depth136 mm
Width246 mm
Height202 mm
Weight1500 g
