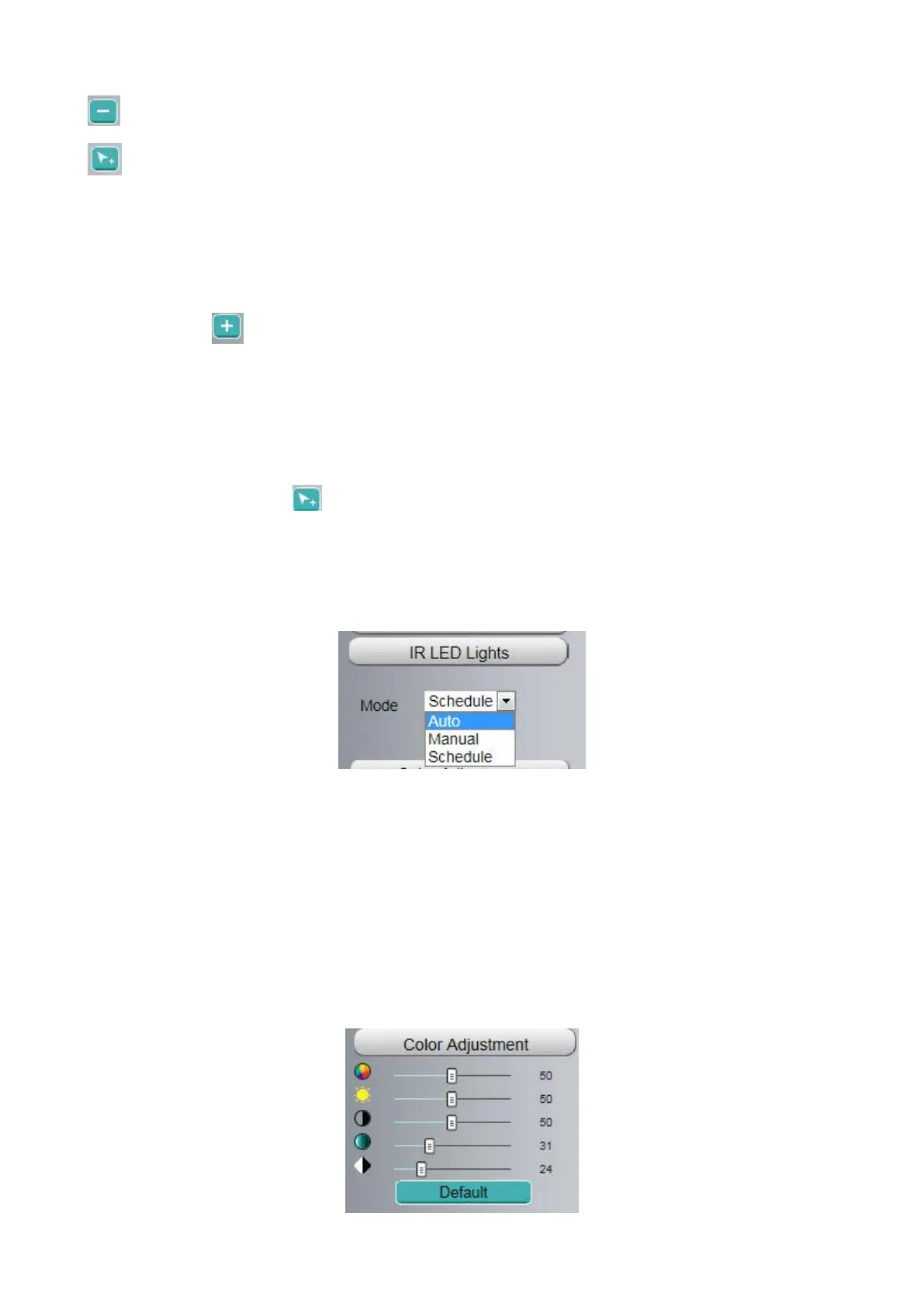

Page #26 background imageLoading...
Page #26 background image
24
Delete Select one preset position and click this button to delete it.
GO Select one preset position in the preset drop-down list and click Go to make the camera
move the preset position
How to do preset position?
Firstly, move the camera and stop at a desired place where you want make preset position.
Secondly, click button and enter a descriptive name for the preset position. The preset position
cannot contain special characters. Then click OK to save it. If you want to reset the preset position, click
Cancel.
After that, you can move the camera and stop at another place, and set another preset position. You can
do all the 16 preset positions with this method.
If you want to see one preset position you have set, only select the preset position name from the preset
drop-down list, and click go button, the camera will go to the preset position.
Section 5 IR LED Lights / Color Adjustment
IR LED Lights
Click Infra led and there are three modes to adjust the infrared led: Auto, Manual and Schedule.
Auto: Select it and the camera will adjust the infra led (on or off) automatically.
Manual: Select it and turn off the infra led manually.
Schedule: Select it and the IR led light will be off at the schedule period. If you want to define or change
the IR led lights schedule time, please go to Settings > Video > IR LED Schedule page.
Color Adjustment
In this page, you can tune Hue, Brightness, Contrast, Saturation, and Sharpness to get higher quality.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Foscam SD2X and is the answer not in the manual?

Foscam SD2X Specifications

General IconGeneral
Form factorDome
Mounting typeWall
Product colorWhite
International Protection (IP) codeIP66
Camera pan control-
Minimum illumination0 lx
Optical zoom18 x
Zoom capabilityYes
Number of lenses1
Focal length range5.4 - 97.2 mm
Maximum aperture number3.6
Minimum aperture number1.7
LED typeIR
Night vision distance50 m
Total megapixels2 MP
Maximum resolution1920 x 1080 pixels
Supported video modes240p, 480p, 720p, 1080p
Video formats supportedH.264
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi data rate (max)450 Mbit/s
Ethernet interface typeFast Ethernet
Supported network protocolsIP, TCP, UDP, HTTP, HTTPS, DHCP, SMTP, FTP, RTSP, ONVIF
TypeIP security camera
Antenna typeExternal
CertificationFCC, CE, RoHS
Placement supportedIndoor & outdoor
Connectivity technologyWireless
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Security algorithmsWPA, WPA2
Alert notification typeE-mail
Sensor typeCMOS
Optical sensor size1/2.9 \
Power consumption200 mA
Power consumption (max)20 W
Storage temperature (T-T)-20 - 50 °C
Operating temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)0 - 90 %
Operating relative humidity (H-H)20 - 85 %
Mobile operating systems supportedAndroid, iOS
Cables includedLAN (RJ-45)
Audio system2-way
Weight and Dimensions IconWeight and Dimensions
Depth136 mm
Width246 mm
Height202 mm
Weight1500 g
