5.4 Replacement of Impeller
Disconnect the apparatus from the mains power before starting dismantling.
1. Open the locker to the sample inlet.
2. Remove the intermediate plate covering the grinding chamber.
3. Remove the grinding ring and sieve.

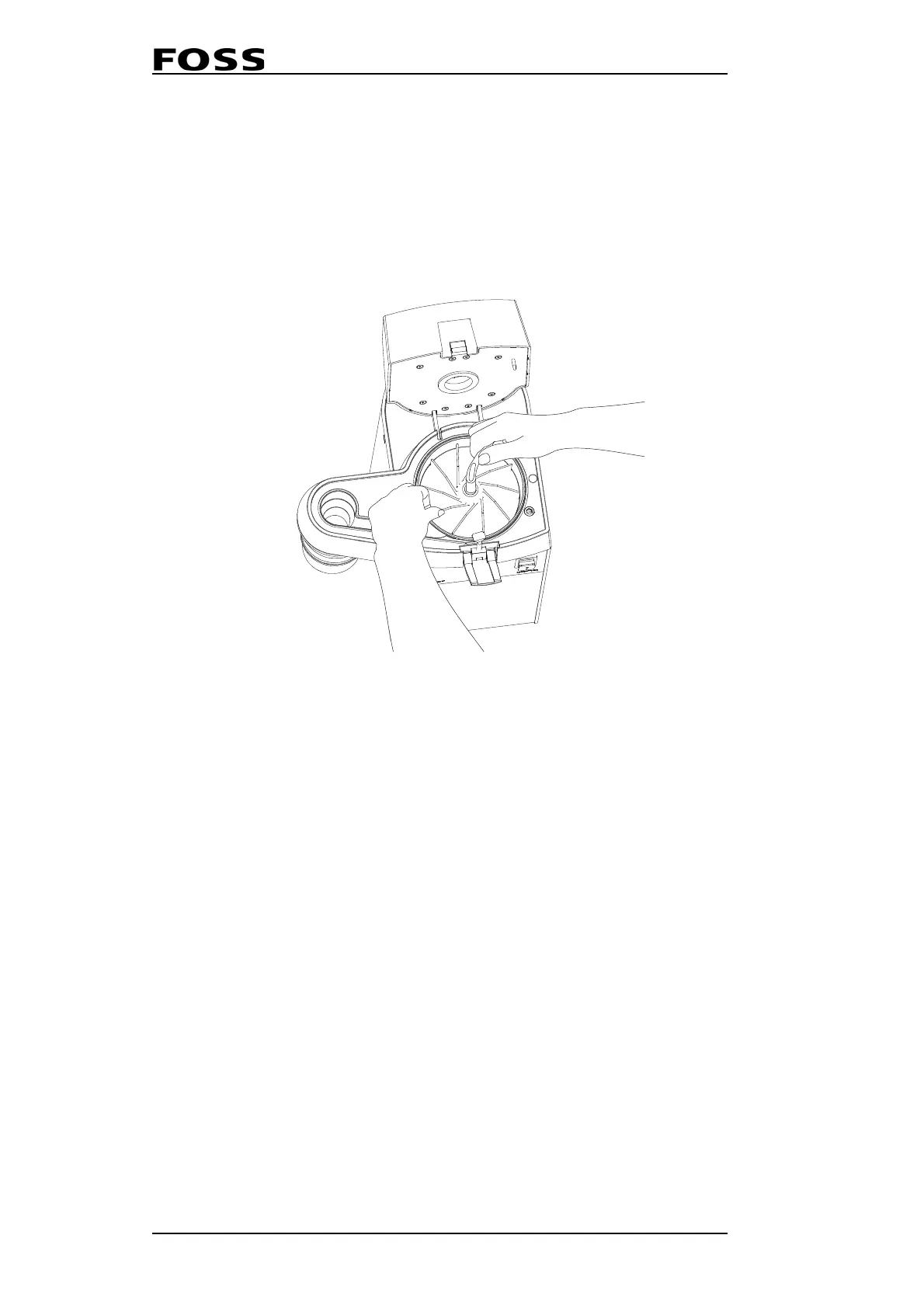

4. Undo the hexagon screw on the top of impeller (Fig. 5:3).
Fig. 5:3
5. Withdraw the impeller. Push the new impeller onto the axle shaft.
6. With a new spring wash in place, turn the hexagon screw to a firm stop position.
