CT 293 Cyclotec™
User Manual 6007 0581 / Rev. 3 3:3
3.3 Assembly
1. Check that the sample inlet bin is correctly positioned on the inlet connection as
shown in
Fig. 3:3.

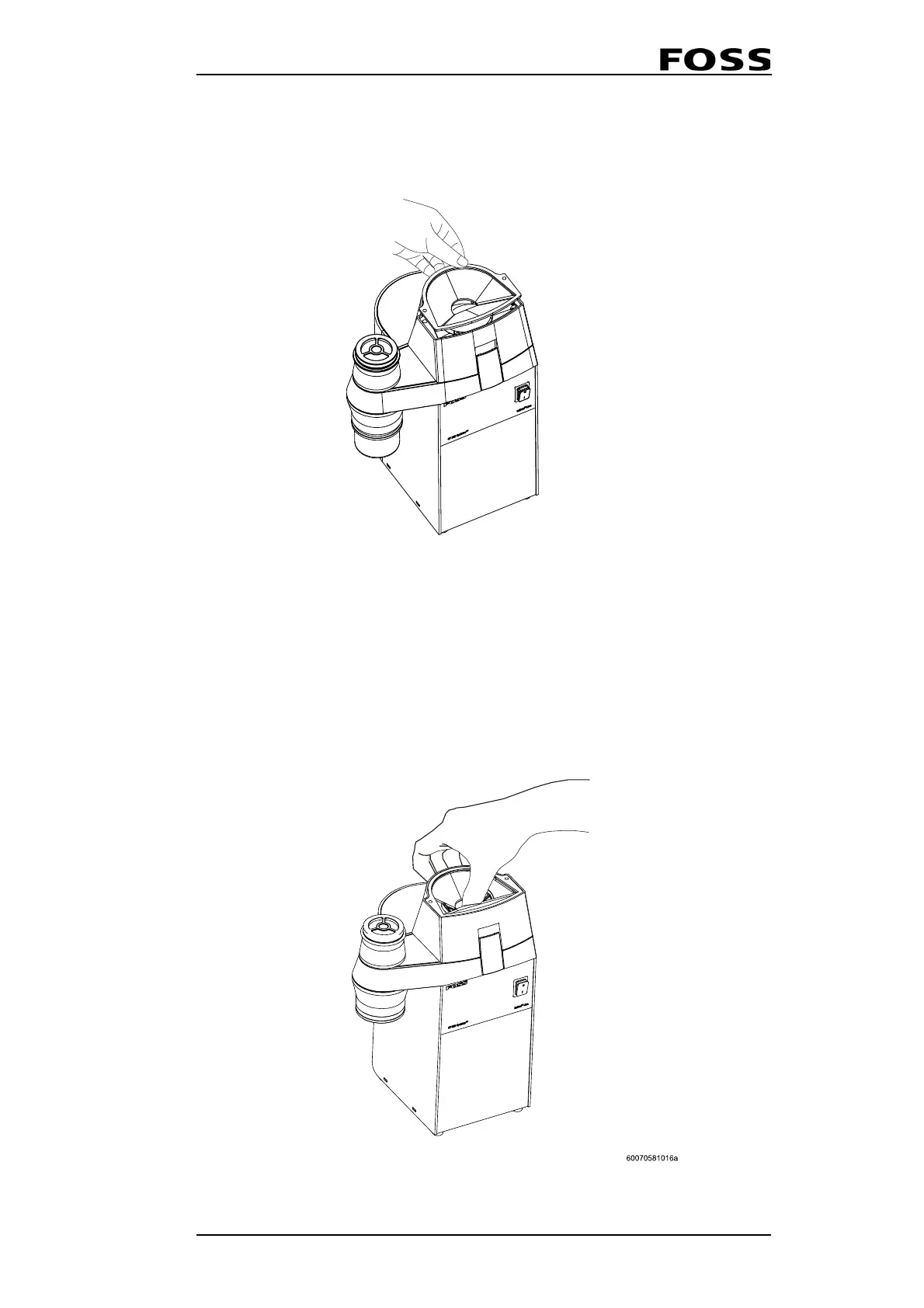

Fig. 3:3
Note: When taking off the sample inlet. please use thumb to push
the inlet towards the back of instrument to release the lock pin.
Then remove the sample inlet from the top of instrument. (See
Fig. 3:4)
If you feel it is hard to remove the sample inlet, please use two
hands. While remove the sample inlet, please keep the inlet
horizontal.
Fig. 3:4
