CT 293 Cyclotec™
3:4 User Manual 6007 0581 / Rev. 3
2. Check the function of sample outlet by assembling one sample bottle. The
sample bottle should be tightly fixed.

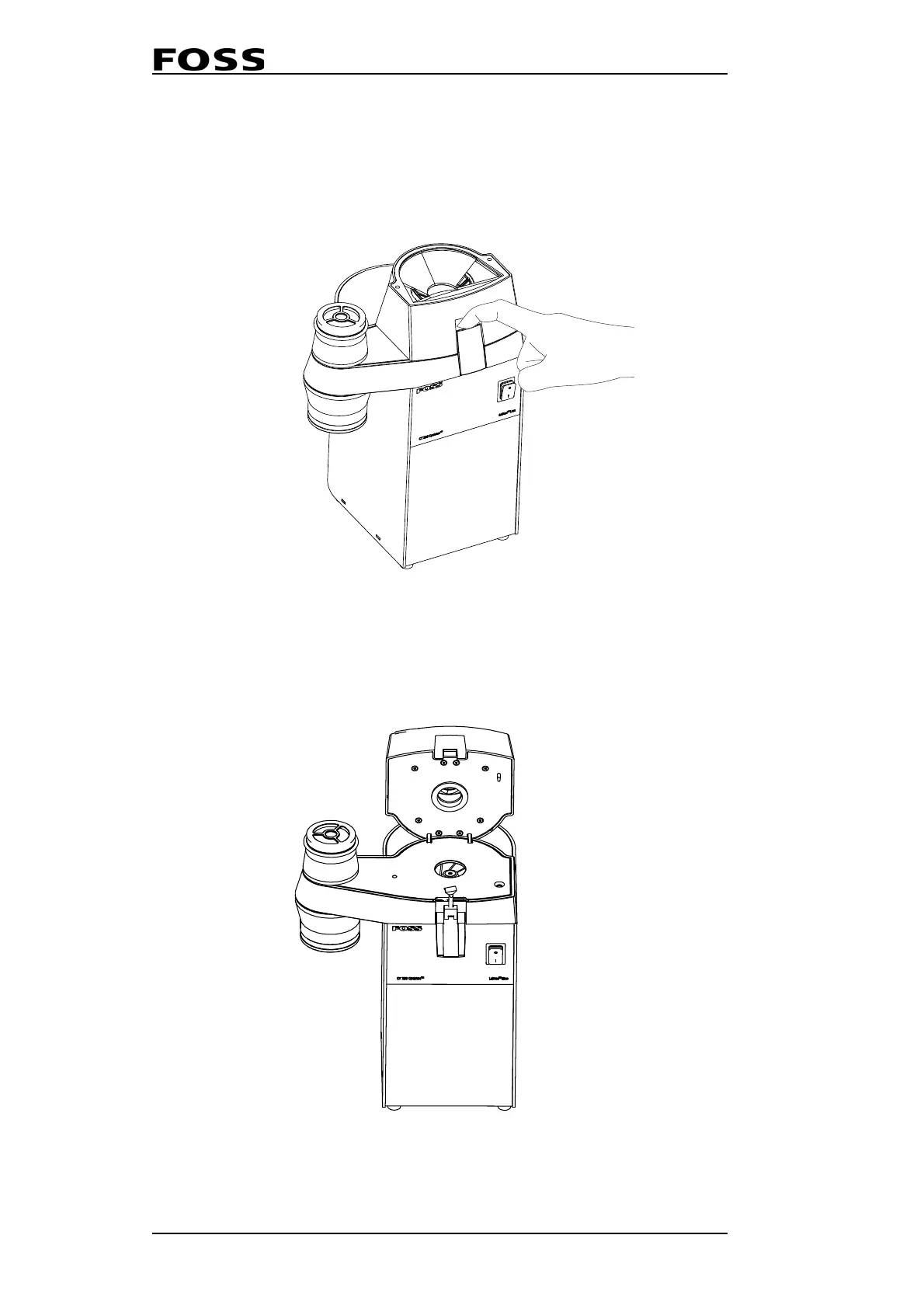

3. Put a finger on the top of the lock and open it as shown in Fig. 3:5.
Note: When opening the lock, do not put your fingers under the
lock to prevent your fingers pinched by the lock.
Fig. 3:5
4. Check that the intermediate plate is in the correct position according to Fig. 3:6.
Fig. 3:6
