Fostex LM16 - General Unit Specifications; Physical Dimensions and Layout

39
Model LM16 [Specifications]
INSERT
INSERTINSERTINSERTINSERTINSERTINSERTINSERT
INPUT
AUX SEND (-2dBu)
EFF SEND (-2dBu)
GROUP (+4dBu)
R STEREO OUT (+4dBu) L
ST MIX OUT (-10dBV)
USB
MIDI OUT
CONTROLLER
PHANTOM
POWER
General
Dimensions: 482 (W) x 136 (H) x 570 (D) mm
Weight: approx. 10kg
Power Requirement: 120VAC 50/60Hz
230VAC 50/60Hz
240VAC 50/60Hz
Power Consumption: approx. 33W

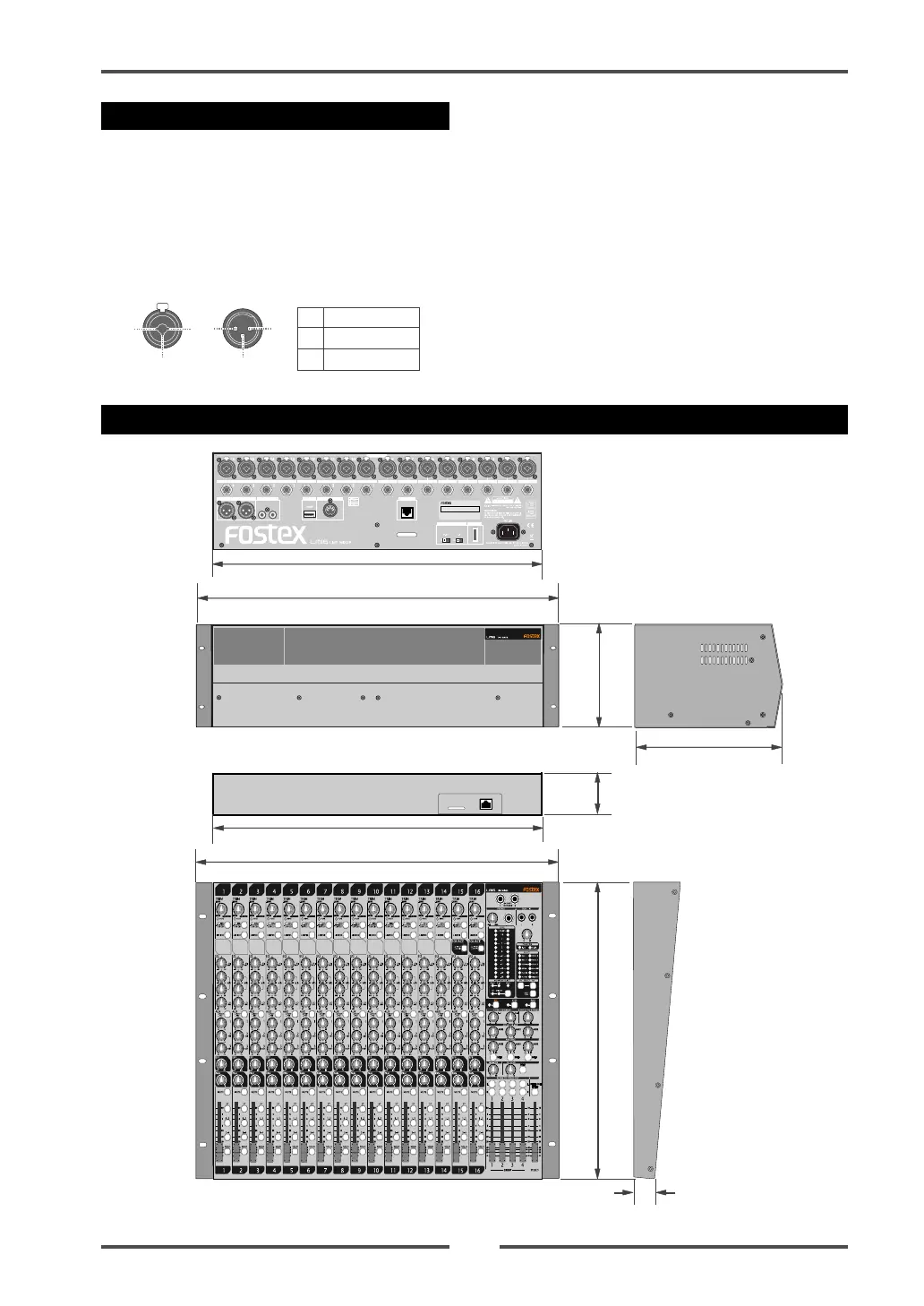

Physical dimensions
Control unit
Main unit
482
437
482
437
24
355
185
129
54
1
2
3
2
1
3
1
2
3
GND
HOT
COLD
