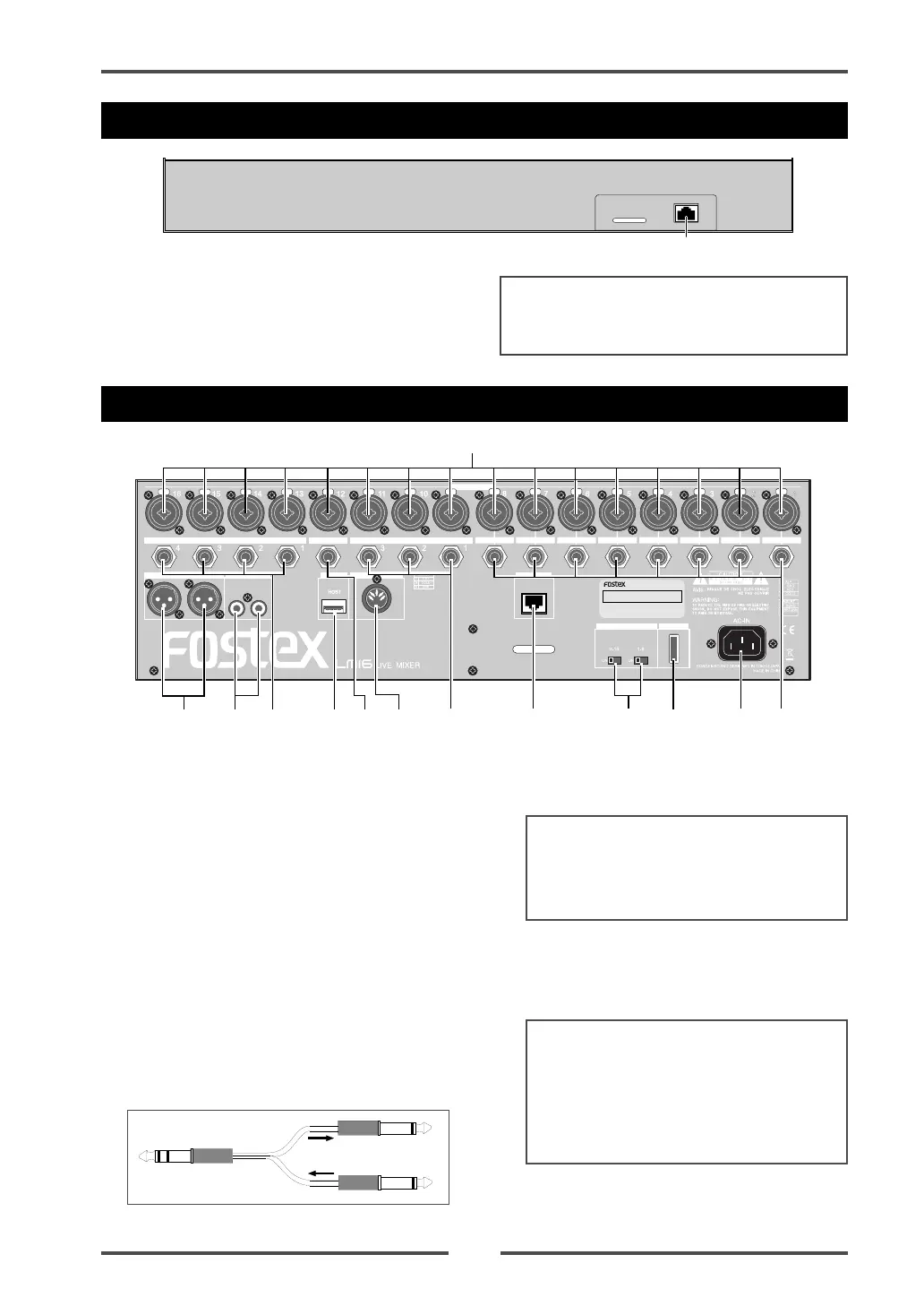

Model LM16 [Names and functions]
25
Control unit (rear panel)
1
(1) [TO CONTROLLER] connector
Used to connect to the [CONTROLLER]
connector of the main unit using the supplied
(or a different) CAT5 cable (See page 13 for
details).
Main unit (rear panel)
INSERT
INSERTINSERTINSERTINSERTINSERTINSERTINSERT
INPUT
AUX SEND (-2dBu)
EFF SEND (-2dBu)
GROUP (+4dBu)
R STEREO OUT (+4dBu) L
ST MIX OUT (-10dBV)
USB
MIDI OUT
CONTROLLER
PHANTOM
POWER
1
273456
8
10
1213
911
(1) [INPUT (1 through 16)] connectors
Each connector accepts a mic or line level
analog audio signal.
The connector is a combo type - a combined
XLR connector and phone jack in one. You can
connect a microphone to the XLR connector or
connect a line signal to the phone jack. (Note
that you cannot use the XLR receptacle and
phone jack on a same combo connector
simultaneously.) See page 28 for details.
(2) [INSERT (1 through 8)] jacks
Each jack is used for connecting an external
effects processor such as a compressor/limiter.
To connect an external effects processor, use a
Y-cable as shown below ( See page 31 for
details).
(3) [AC IN] connector
Used to connect the supplied power cord (See
page 15 for details).
(4) [POWER] switch
Turns on or off the LM16 (See page 15 for
details).
<Note>:
Use only the supplied power cord.
A different power cord may cause fire, etc.
Also note that when you hear thunder rum-
bling, disconnect the power cord from the
AC outlet.
<Note>:
Do not turn off the LM16 while ac-
cessing the internal hard disk. Doing so may
destroy data. Even if you turn off the LM16,
it consumes a very small amount of power.
Therefore, it is recommended to disconnect
the power cord from the AC outlet if you do
not use the LM16 for a long time.
<Note>:
Use only a CAT-5 STP cable (straight
type) for connection between the main unit
and the control unit.
