Model LM16 [Names and functions]
24

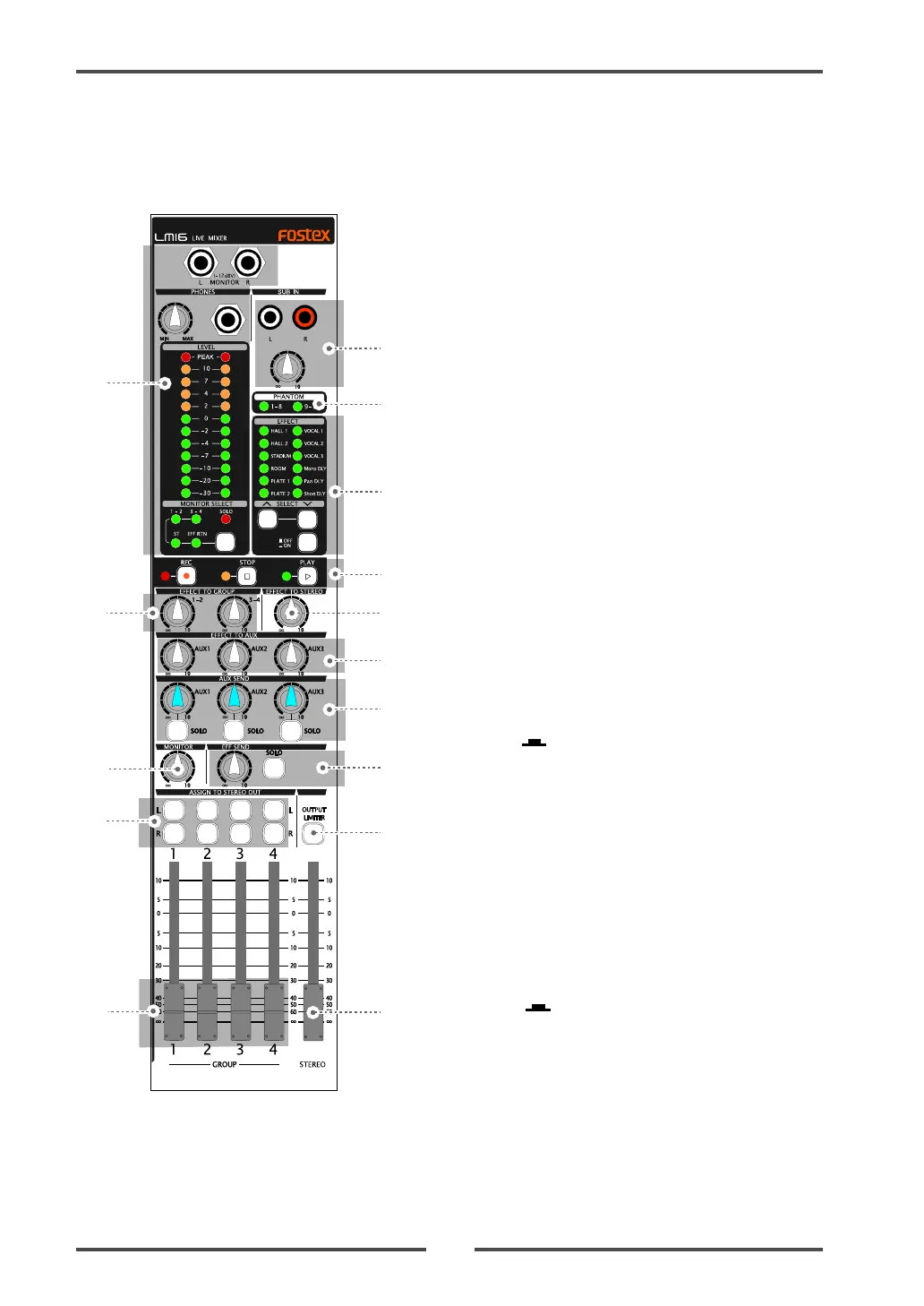

(22) [EFFECT TO GROUP] controls
Each control adjusts the output level from the
internal effects to the corresponding group buss pairs
(1-2 or 3-4). See page 31 for details.
(23) [EFFECT TO STEREO] control
Adjusts the output level from the internal effects to
the stereo busses. See page 31 for details.
(24) [EFFECT TO AUX (1, 2, 3)] controls
Each control adjusts the output level from the
internal effects to the corresponding AUX buss (1, 2
or 3). See page 31 for details.
(25) [AUX SEND] controls / [SOLO] switches
Each [AUX SEND] control adjusts the output level of
the corresponding AUX SEND (1, 2 or 3) output.
Each [SOLO] switch allows you to monitor the soloed
signal of the corresponding AUX SEND (1, 2 or 3)
output. When the switch is down, the solo function is
engaged. Each press of the switch toggles between
on and off (See page 30 for details).
(26) [MONITOR] control
Adjusts the output level of the [MONITOR (L/R)] and
[PHONES] jacks. The output level of the [PHONES]
jack is controlled by the [PHONES] and [MONITOR]
controls (See page 32 for details).
(27) [EFF SEND] control / [SOLO] switch
Adjusts the output level of the EFFECT SEND .
Each [SOLO] switch allows you to monitor the soloed
signal of the EFFECT SEND output. When the switch
is down ( ), the solo function is engaged. Each press
of the switch toggles between on and off.
(28) [ASSIGN TO STEREO OUT] switches
Each switch allows you to send the post signal of the
corresponding GROUP fader to the [STEREO OUT
L/R] jacks. When the switch is down, the signal is
sent ( See page 33 for details).
(29) [OUTPUT LIMITER] switch
Activates or deactivates the limiter function for all
the buss outputs (stereo L/R outputs, group outputs
1 through 4, Aux send outputs 1 through 3, effect
send output, and monitor outputs). When the switch
is down ( ), the limiter function is active.
(30) [GROUP 1-4] faders
Each fader adjusts the output level of the
corresponding group output signal which is output
from the [GROUP OUT] jack (See page 33 for details).
(31) [STEREO] fader
Adjusts the output level of the stereo output signal
which is output from the [STEREO OUT (L/R)] and
[ST MIX OUT (L/R)] jacks.
