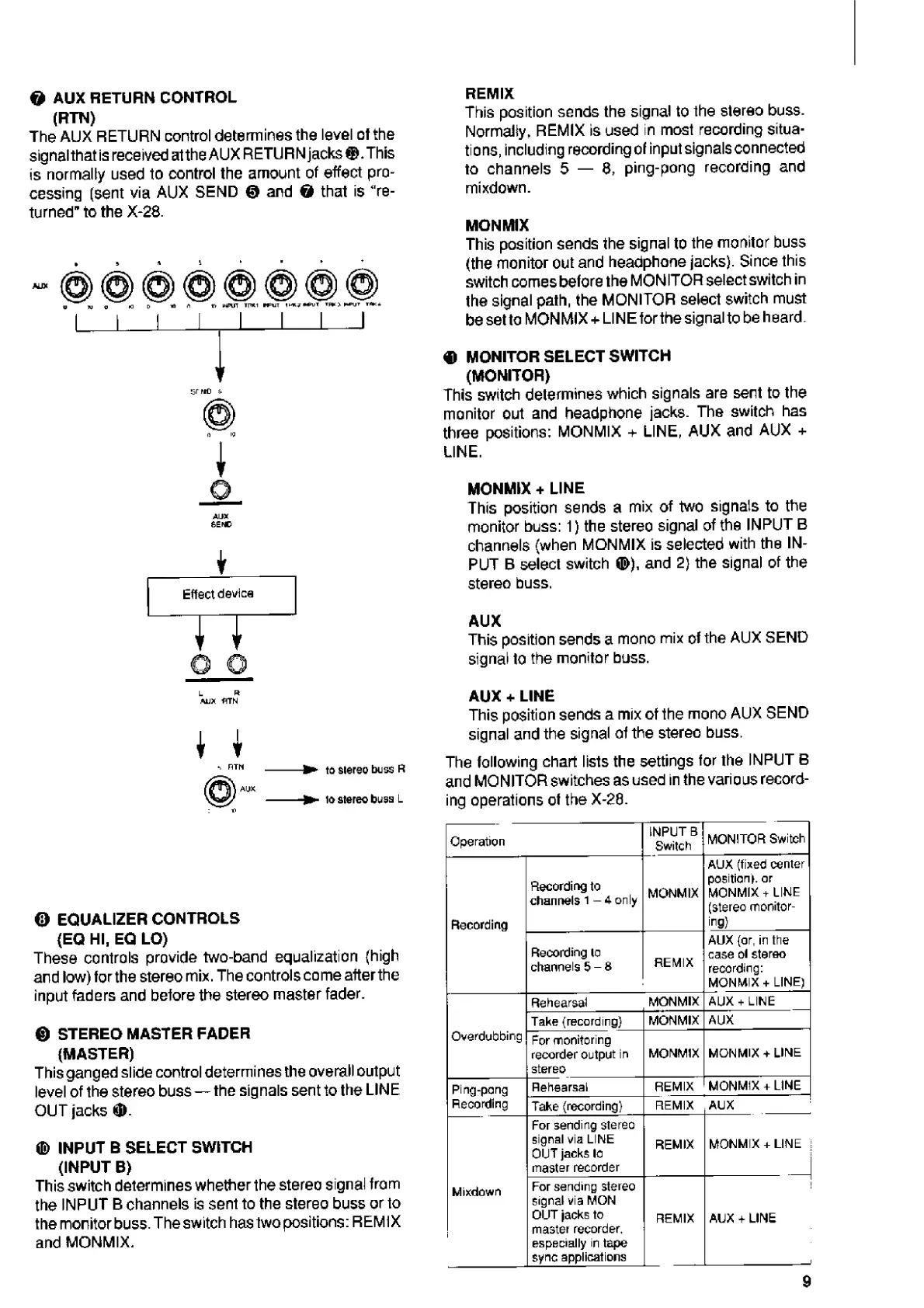

Fostex X-28 - Output and Monitoring Controls

Q AUX RETURN CONTROL
(RTN)
The AUX RETURN control determines the level of the
signal that is received at the AUX RETURNjacks®.This
is normally used to control the amount of effect pro¬
cessing (sent via AUX SEND © and © that is "re¬
turned" to the X-28.
AUX
SEND
I
Effect device
TT
REMIX
This position sends the signal to the stereo buss.
Normally, REMIX is used in most recording situa¬
tions, including recording ol input signals connected
to channels 5 — 8, ping-pong recording and
mixdown.
MONMIX
This position sends the signal to the monitor buss
(the monitor out and headphone jacks). Since this
switch comes before the MONITOR select switch in
the signal path, the MONITOR select switch must
be set to MON MIX + LI N E for the signal to be heard.
© MONITOR SELECT SWITCH
(MONITOR)
This switch determines which signals are sent to the
monitor out and headphone jacks. The switch has
three positions: MONMIX + LINE, AUX and AUX +
LINE.
MONMIX + LINE
This position sends a mix of two signals to the
monitor buss: 1) the stereo signal of the INPUT B
channels (when MONMIX is selected with the IN¬
PUT B select switch ©), and 2} the signal of the
stereo buss.
AUX
This position sends a mono mix of the AUX SEND
signal to the monitor buss.
L ft
AUX RTN
RTN
AUX
to stereo buss Ft
lo stereo busa L
© EQUALIZER CONTROLS
(EQ HI, EQ L0)
These controls provide two-band equalization (high
and low) for the stereo mix. The controls co me after the
input faders and before the stereo master fader.
@ STEREO MASTER FADER
(MASTER)
This ganged slide control determines the overall output
level of the stereo buss—the signals sent to the LINE
OUT jacks ®.
© INPUT B SELECT SWITCH
(INPUT B)
This switch determines whether the stereo signal from
the INPUT B channels is sent to the stereo buss or to
the monitor buss. The switch has two positions: REMIX
and MONMIX.
AUX + LINE
This position sends a mix of the mono AUX SEND
signal and the signal of the stereo buss.
The following chart lists the settings for the INPUT B
and MONITOR switches as used in the various record¬
ing operations of the X-28.
Operation
INPUT B
Switch
MONITOR Switch
Recording
Recording to
channels 1 - 4 only
MONMIX
AUX (fixed center
position}, or
MONMIX + LINE
(stereo monitor-
ing)
Recording lo
channels 5-8
REMIX
AUX (or, in the
case ol stereo
recording:
MONMIX + LINE)
Overdubbing
Rehearsal
MONMIX AUX + LINE
Take (recording)
MONMIX
AUX
For monitoring
recorder output in
stereo
MONMIX MONMIX + LINE
Ping-pong
Recording
Rehearsal
REMIX
MONMIX + LINE
Take (recording)
REMIX AUX
Mixdown
For sending stereo
signal via LINE
OUT jacks lo
master recorder
REMIX
MONMIX + LINE
_|
For sending stereo
signal via MON
OUT jacks to
master recorder,
especially in tape
sync applications
REMIX
l
AUX + LINE
