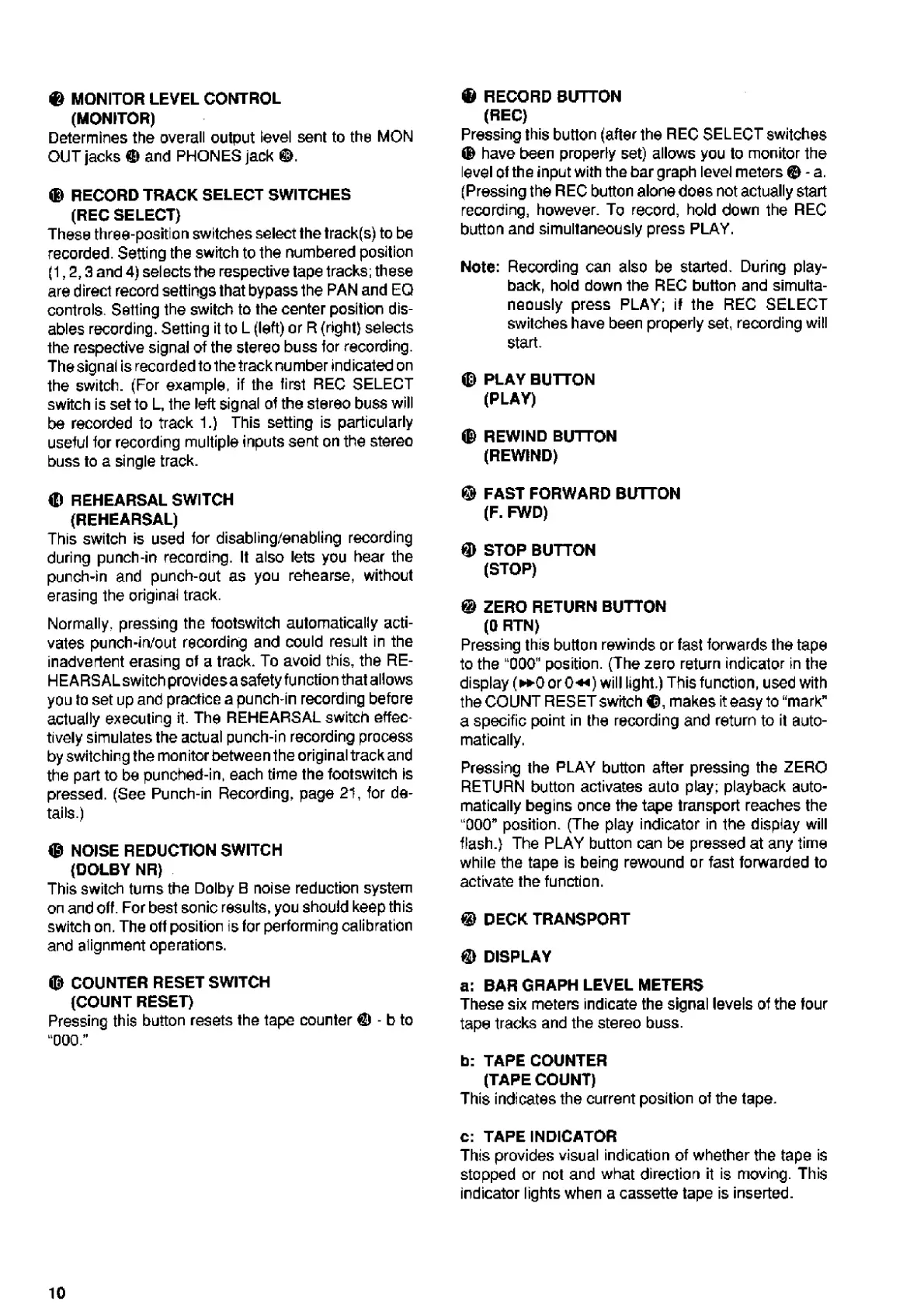

MONITOR
LEVEL
CONTROL
(MONITOR)
Determines
the
overall
output
level
sent
to
the
MON
OUT
jacks
©
and
PHONES
jack
©.
©
RECORD
TRACK
SELECT
SWITCHES
(REC
SELECT)
These
three-position
switches
select
the
track(s)
to
be
recorded.
Setting
the
switch
to
the
numbered
position
(1,2,3
and
4)
selects
the
respective
tape
tracks;
these
are
direct
record
settings
that
bypass
the
PAN
and
EQ
controls.
Setting
the
switch
to
the
center
position
dis¬
ables
recording.
Setting
it
to
L
(left)
or
R
(right)
selects
the
respective
signal
of
the
stereo
buss
for
recording.
The
signal
is
recorded
to
the
track
number
indicated
on
the
switch.
(For
example,
if
the
first
REC
SELECT
switch
is
set
to
L,
the
left
signal
of
the
stereo
buss
will
be
recorded
to
track
1.)
This
setting
is
particularly
useful
for
recording
multiple
inputs
sent
on
the
stereo
buss
to
a
single
track.
©
REHEARSAL
SWITCH
(REHEARSAL)
This
switch
is
used
for
disabling/enabling
recording
during
punch-in
recording.
It
also
lets
you
hear
the
punch-in
and
punch-out
as
you
rehearse,
without
erasing
the
original
track.
Normally,
pressing
the
footswitch
automatically
acti¬
vates
punch-in/out
recording
and
could
result
in
the
inadvertent
erasing
of
a
track.
To
avoid
this,
the
RE¬
HEARS
ALswitch
provides
a
safety
function
that
allows
you
to
set
up
and
practice
a
punch-in
recording
before
actually
executing
it.
The
REHEARSAL
switch
effec¬
tively
simulates
the
actual
punch-in
recording
process
by
switching
the
monitor
between
the
original
track
and
the
part
to
be
punched-in,
each
time
the
footswitch
is
pressed.
(See
Punch-in
Recording,
page
21,
for
de¬
tails.)
©
NOISE
REDUCTION
SWITCH
(DOLBY
NR)
This
switch
turns
the
Dolby
B
noise
reduction
system
on
and
off.
For
best
sonic
results,
you
should
keep
this
switch
on.
The
off
position
is
for
performing
calibration
and
alignment
operations.
©
COUNTER
RESET
SWITCH
(COUNT
RESET)
Pressing
this
button
resets
the
tape
counter
©
-
b
to
0
0
0
.
"
©
RECORD
BUTTON
(REC)
Pressing
this
button
(after
the
REC
SELECT
switches
©
have
been
properly
set)
allows
you
to
monitor
the
level
of
the
input
with
the
bar
graph
level
meters
©
-
a.
(Pressing
the
REC
button
alone
does
not
actually
start
recording,
however.
To
record,
hold
down
the
REC
button
and
simultaneously
press
PLAY.
Note:
Recording
can
also
be
started.
During
play¬
back,
hold
down
the
REC
button
and
simulta¬
neously
press
PLAY;
if
the
REC
SELECT
switches
have
been
properly
set,
recording
will
start.
©
PLAY
BUTTON
(PLAY)
©
REWIND
BUTTON
(REWIND)
©
FAST
FORWARD
BUTTON
(F.
FWD)
©
STOP
BUTTON
(STOP)
@
ZERO
RETURN
BUTTON
(0
RTN)
Pressing
this
button
rewinds
or
fast
forwards
the
tape
to
the
“000”
position.
(The
zero
return
indicator
in
the
display
(
0
or
0-«)
will
light,)
This
function,
used
with
the
COUNT
RESET
switch
©,
makes
it
easy
to
“mark"
a
specific
point
in
the
recording
and
return
to
it
auto¬
matically.
Pressing
the
PLAY
button
after
pressing
the
ZERO
RETURN
button
activates
auto
play;
playback
auto¬
matically
begins
once
the
tape
transport
reaches
the
“000”
position.
(The
play
indicator
in
the
display
will
flash.)
The
PLAY
button
can
be
pressed
at
any
time
while
the
tape
is
being
rewound
or
fast
forwarded
to
activate
the
function.
©
DECK
TRANSPORT
©
DISPLAY
a:
BAR
GRAPH
LEVEL
METERS
These
six
meters
indicate
the
signal
levels
of
the
four
tape
tracks
and
the
stereo
buss.
b:
TAPE
COUNTER
(TAPE
COUNT)
This
indicates
the
current
position
of
the
tape,
c:
TAPE
INDICATOR
This
provides
visual
indication
of
whether
the
tape
is
stopped
or
not
and
what
direction
it
is
moving.
This
indicator
lights
when
a
cassette
tape
is
inserted.
10
