43

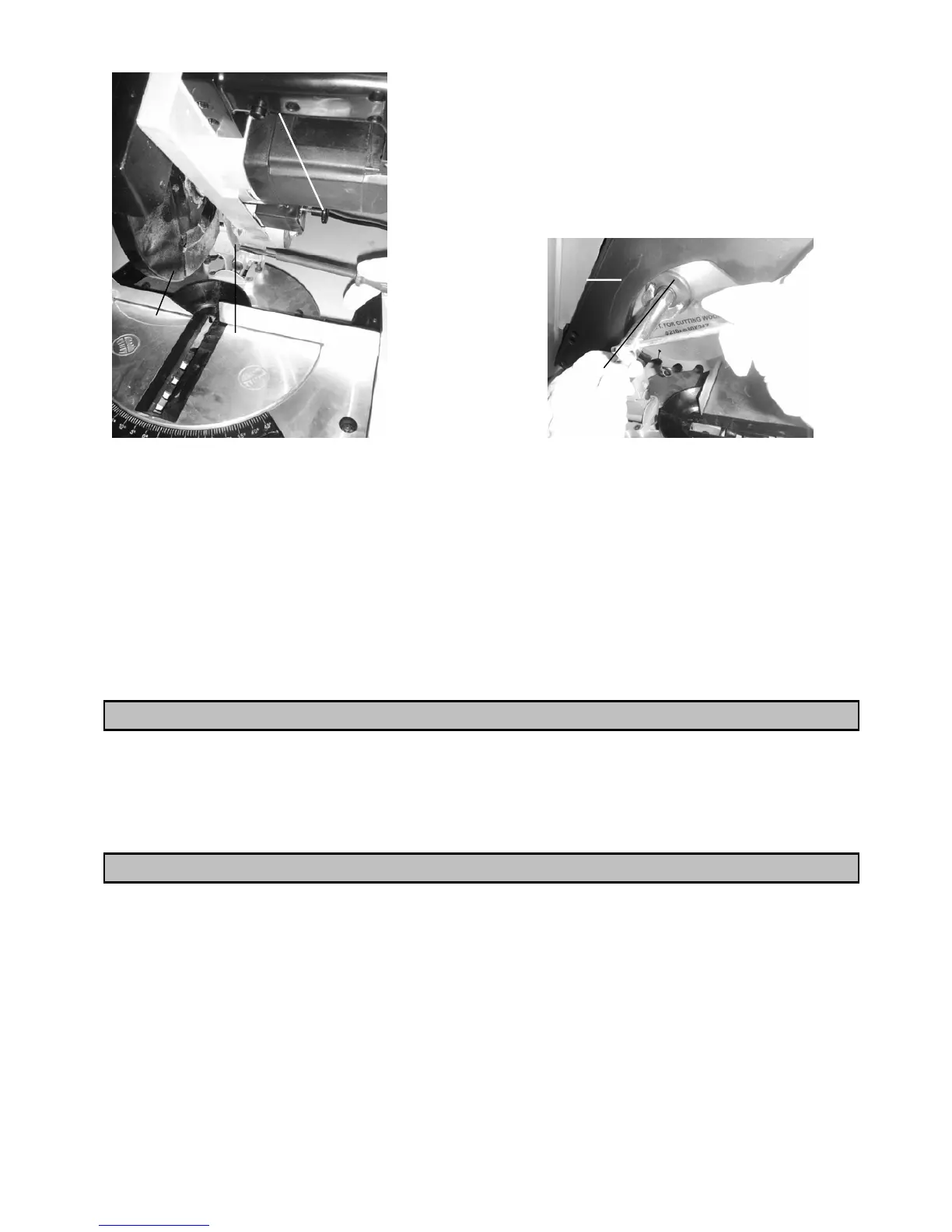

Raise the upper surface to its maximum height.
Loosen the screw
28
located on the right side of the mitre saw behind the motor, and turn the
moving protection
11
to completely release the blade.
While the head is in the rest position (raised), lock the outer flange
29
with the wrench provided,
and unbolt the hexagonal-head screw clockwise with the hexagonal spanner.
Remove the blade and replace it with another one, paying attention that the sense of rotation
indicated by the arrow on the protection device
10
corresponds to the cutting pitch of the teeth.
Before you assemble the blade, thoroughly clean the support flanges. Reposition the external
flange
29
while making sure that it is perfectly inserted on the shaft, then tighten the screw.
Before re-inserting the screw
28
, replace protective cap
11
so as to completely cover the blade.
SELECTION OF THE BLADE
The mitre-saw is equipped with a WIDIA blade (250 diameter x 30 bore).
Contact our Authorised Service Centres located nationwide for blades having different tooth
formations.
DUST EXHAUSTION (OPTIONAL)
The mitre saw can be connected to an aspirator or a dust collection bag by means of the
exhaust manifold
22 (Fig.4)
.
The aspirator pipe or the bag sleeve must be secured to the manifold by means of a band.
Users are reminded to empty the bag or aspirator container and to clean the filter regularly.
The air output speed must be equivalent to at least 100 Nm
3
/h.
For example, “dustbin” type aspirators are suitable.
The dust of many kind of timbers is dangerous for the human health of the user, and therefore
all possible measures must be adopted to avoid the environmental dispersal, by aspirating it
during cutting operations.
You can install a dust collection bag on the rear junction by means of a fastener. An external
vacuum device for dust collection can be connected to the same rear junction.
However, it is recommended to use a respiratory protection.
2
28
29
