Chapter 3 BIOS Description

865G/GV/PE7MC User Manual

Serial ATA Port 0/1 Mode (Default: Primary Master)

This option is used to set the Serial ATA Port 0/1 Mode—with it set to Primary

Master/Slave, the Primary IDE cannot be used, supporting the IDE/SATA boot;

with it set at Secondary Master/Slave, the Secondary IDE is unapplicable,

supporting the IDE/SATA boot; with it set at Primary/Secondary Master, the

SATA HDD can act as the primary or secondary drive in such case when the

SATA Only is selected; with it set at SATA 0/1 master, it is used to select the

SATA HDD port when the SATA Enhanced Mode is selected.

AC97 Audio (Default: Auto)

This option is used to set whether onboard AC97 Audio is enabled.

Onboard LAN controller (Default: Enabled)

This option is used to set whether the onboard LAN controller is enabled.

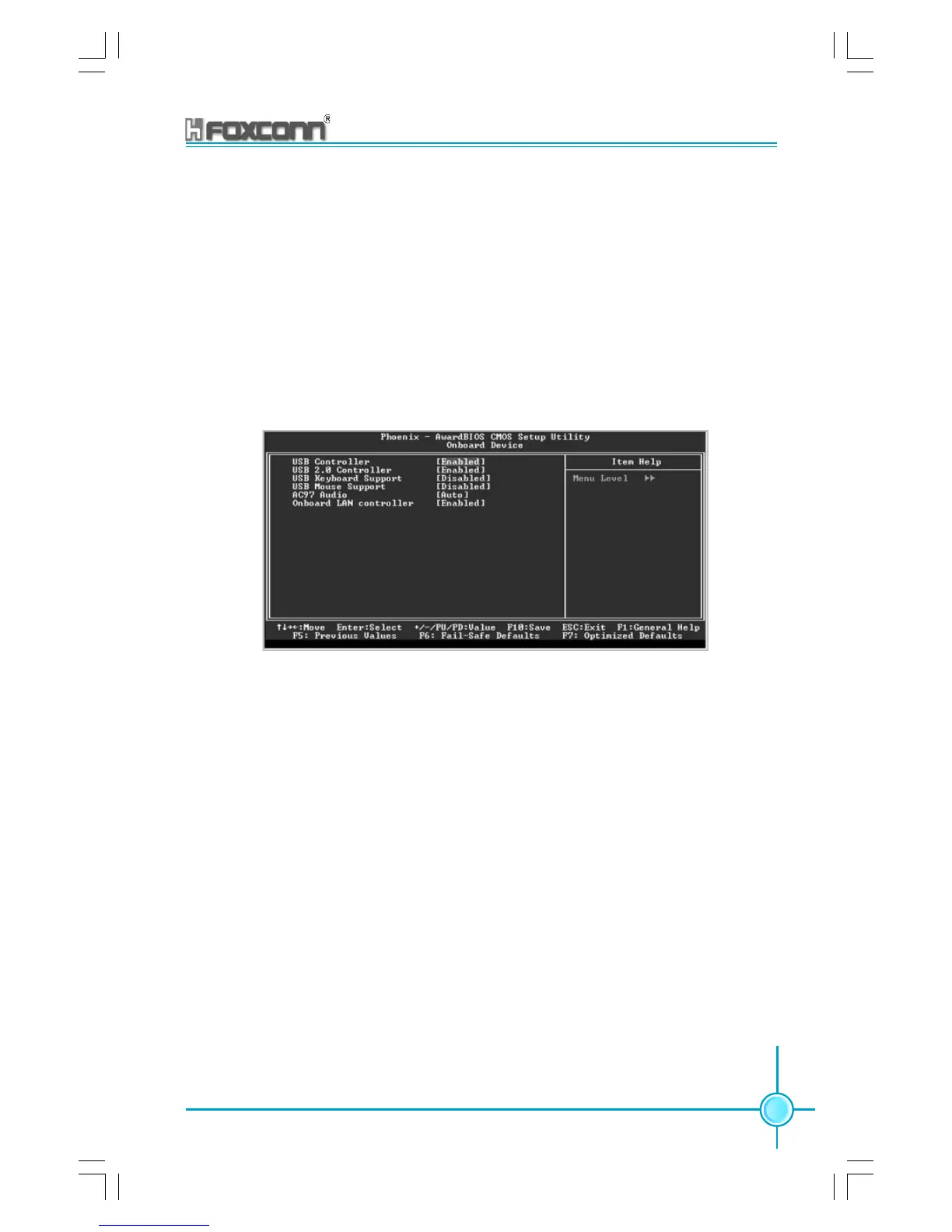

Onboard Device Menu
