Foxconn A76GMV User Manual

1
4

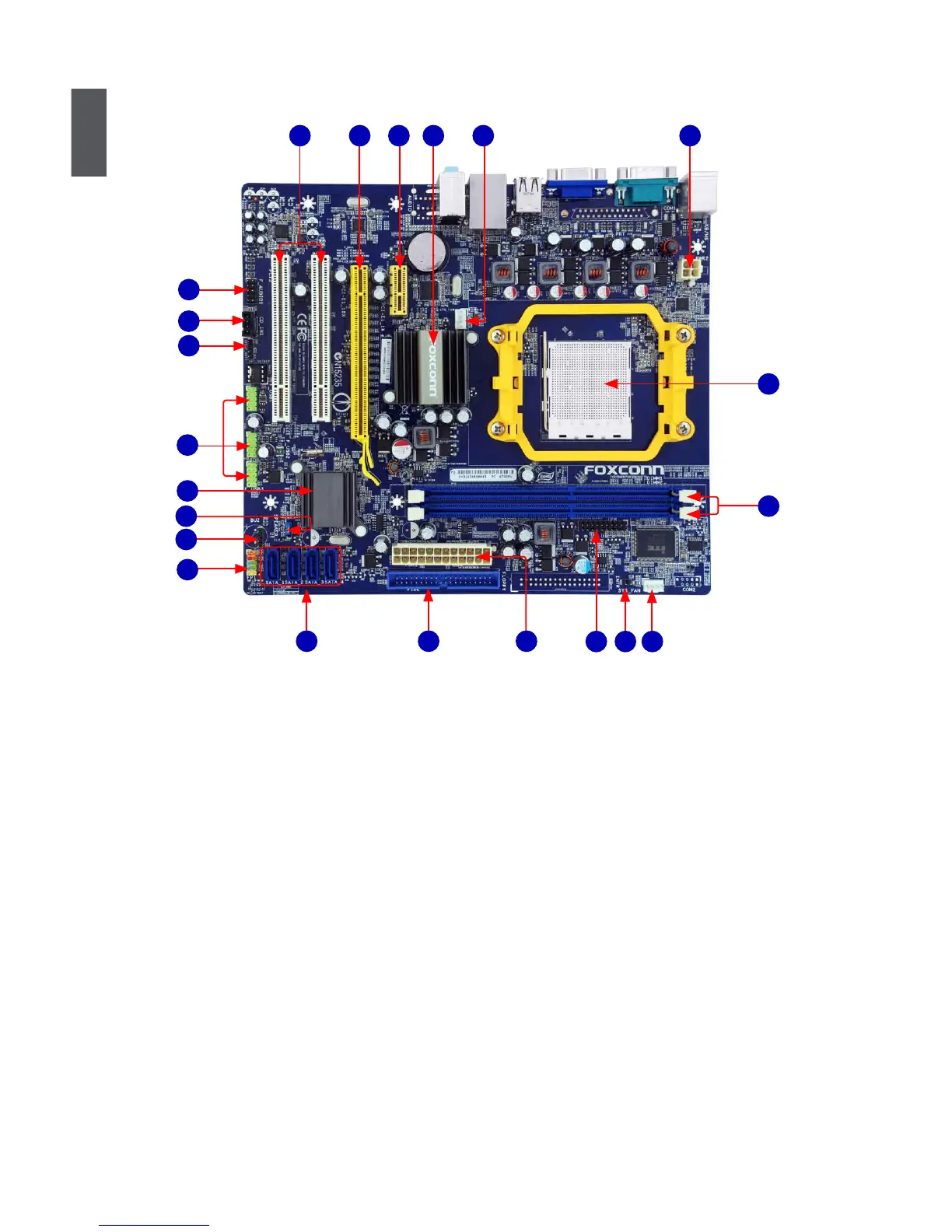

1-2 Layout
1. 4-pin ATX 12V Power Connector
2. CPU_FAN Header
3. North Bridge: AMD 760G
4. PCI Express x1 Slot
5. PCI Express x16 Slot
6. PCI Slots
7. Front Audio Connector
8.CD_IN Connector
9. SPDIF_OUT Connector
10. Front USB Connectors
11. South Bridge: SB710 / SB710
12. Clear CMOS Jumper
13. Speaker Connector
14. Front Panel Connector
15. SATA Connectors
16. IDE Connector
17. 24-pin ATX Power Connector
18. TPM Connector
19. Chassis intrusion alarm header(INTR)
20. SYS_FAN Header
21. DDR3 DIMM Slots
22. CPU Socket
Note : The above motherboard layout is for reference only, please refer to the physical mother-
board for detail.
22
6
21
11
14
7
8
9
13
10
15 16 17
18
19 20
5
4
3
2
1
12

Foxconn A76GMV Specifications

General

Memory channels	Dual-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	1066, 1333 MHz
System bus rate	4.4 GT/s
Processor socket	Socket AM3
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II Dual-Core Mobile, AMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
Maximum number of SMP processors	1
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA II connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Component for	PC
Power source type	ATX
Motherboard chipset	AMD 760G
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1
Supported storage drive interfaces	SATA II
Graphics card	Radeon 3000
Parallel processing technology support	Not supported
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit

Weight and Dimensions

Width	- mm
