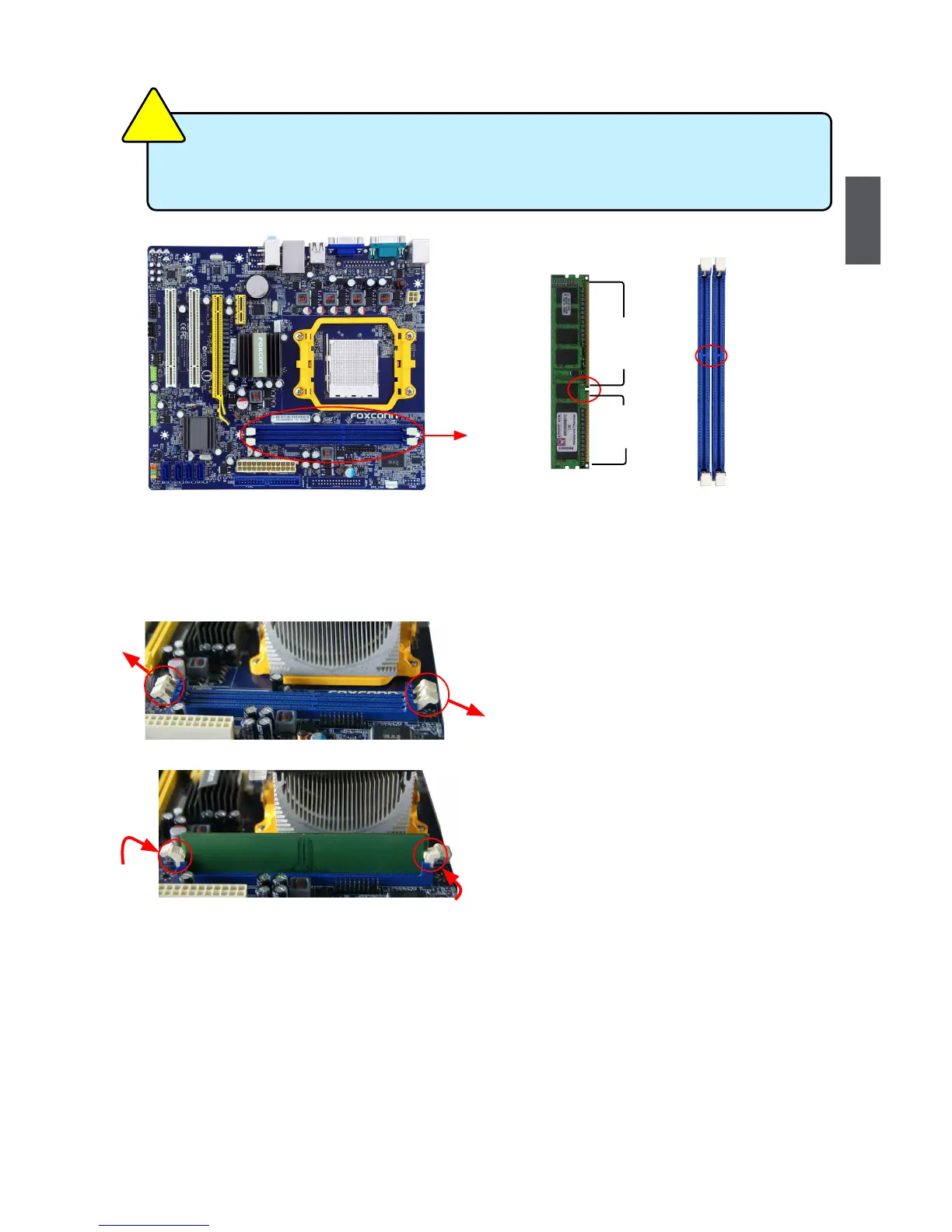

Installing a Memory
If you take a look at front side of memory module, it has asymmetric pin counts on both sides separated
by a notch in the middle, so it can only t in one direction. Follow the steps below to correctly install
your memory modules into the sockets.
Step 1:
Spread the clips at both ends of the memory
socket. Place the memory module onto the
socket, then put your ngers on top edge of
the module, and push it down rmly and seat it
vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap
into place when the memory module is securely
inserted.
144-Pin
96-Pin
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module. Be sure
to install DDR3 DIMMs on this motherboard.
C
A
U
T
I
O
N
!
Notch
