1
4

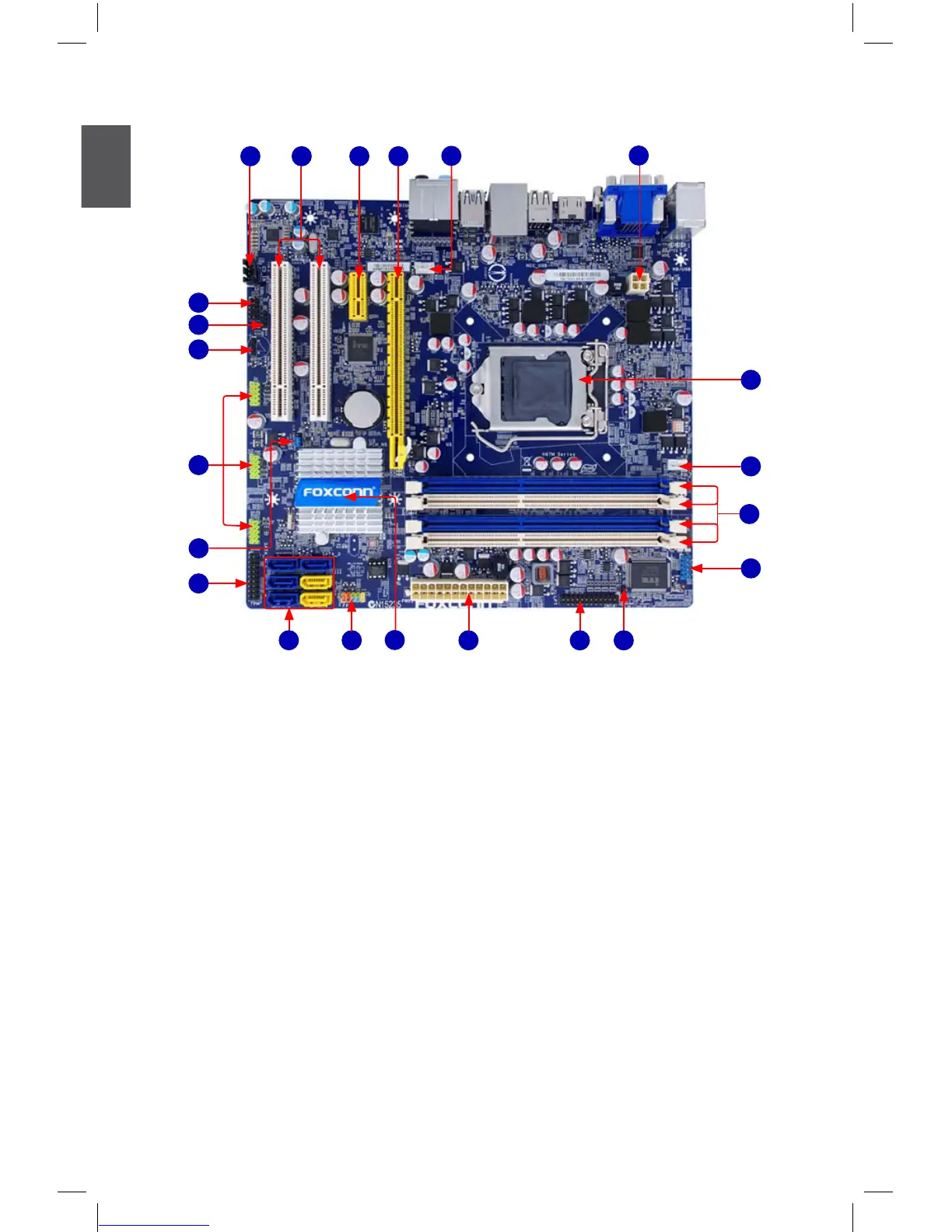

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. SYS_FAN1 Header
3. PCI Express x16 Slot
4. PCI Express x1 Slot
5. PCI Express Slot
6. CD_IN Connector
7. Front Audio Connector
8. SPDIF_OUT Connector
9. Speaker Connector
10. Front USB Connectors
11. Clear CMOS Jumper
12. TPM Connector
13. SATA Connectors
14 Front Panel Connector
15. Chipset: Intel
®
H67
16. 24-pin ATX Power Connector
17. LPT Connector
18. INTR2 Connector
19. COM1 Connector
20. DDR3 DIMM Slots
21. CPU_FAN Header
22. LGA1155 CPU Socket
1
7
2
16
6 5
8
10
12
13
17
19
21
22
14
20
11
18
9
15
34

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Foxconn H67M Series and is the answer not in the manual?

Foxconn H67M Series Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetIntel H67
SocketLGA 1155
Memory TypeDDR3
Maximum Memory32GB
Memory StandardDDR3 1333/1066
Memory Slots4
PCIe x1 Slots2
PCI Slots1
SATA Ports4 (SATA II), 2 (SATA III)
AudioRealtek ALC887 8-Channel HD Audio
LANRealtek 8111E Gigabit LAN
Video Ports1 x HDMI, 1 x DVI, 1 x VGA
USB Ports10
