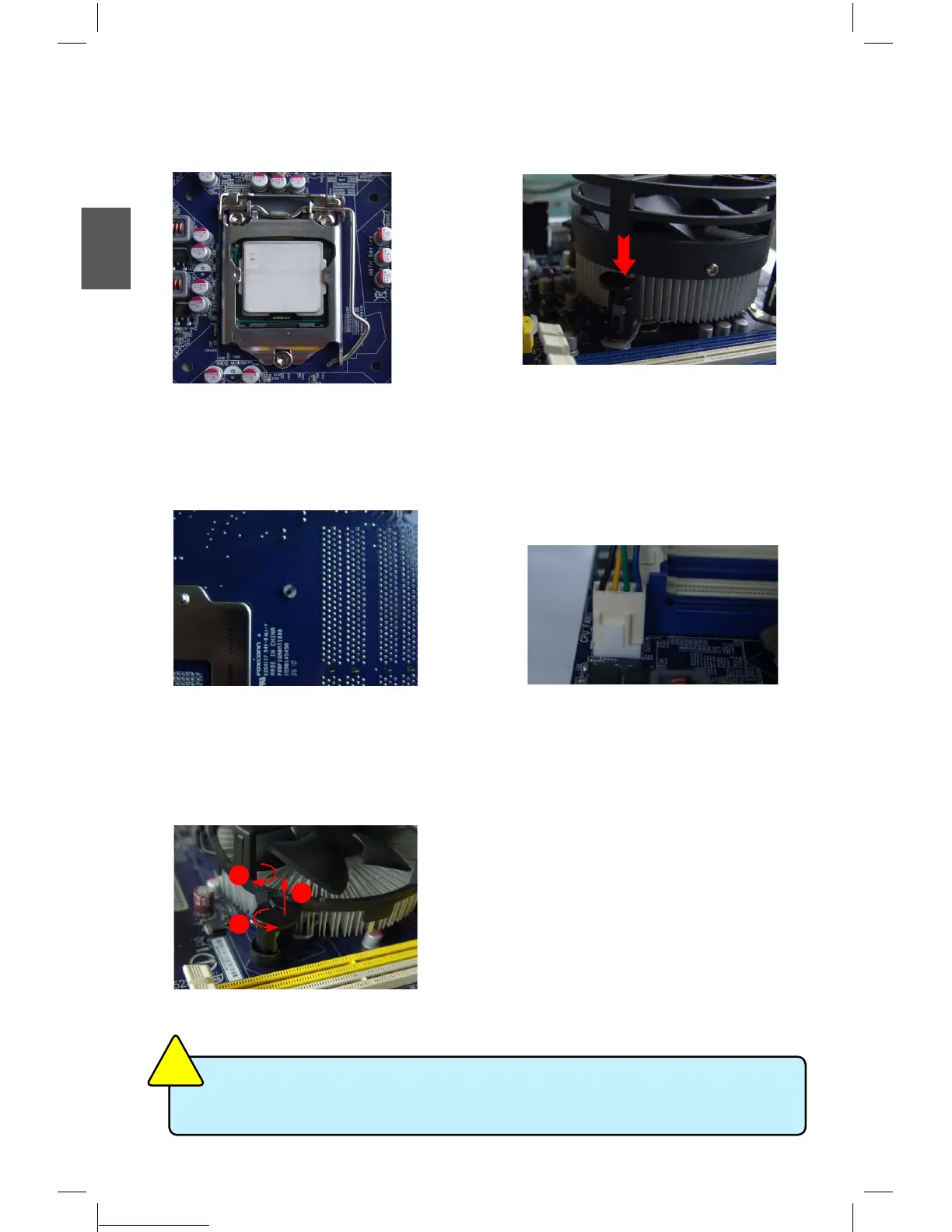

Install the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the motherboard.
1. Apply and spread an even thermal
grease on the surface of CPU.
2. Place the four bolts of the CPU
cooler to the holes of the motherboard,
push them straight down from the top,
and the bolts will be fastened on the
motherboard. That's it.
3. Check the solder side of the
motherboard, the push pin should be
xed as depicted in the picture.
3
2
1
4. Attach the 4-wire CPU cooler
connector to the CPU FAN header
on the motherboard .
Release bolts of CPU cooler from
motherboard :
1.Tu r n in g the push pin (bol t )
along with the direction of arrow
(counterclockwise).
2. Pull the push pin straight up.
3. Turning push pin clockwise to its
default position.
Use extreme care when removing the CPU cooler because the thermal grease may
adhere to the CPU. Inadequately removing the CPU cooler may damage the CPU.
C
A
U
T
I
O
N
!

Foxconn H67M Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
Socket	LGA 1155
Memory Type	DDR3
Maximum Memory	32GB
Memory Standard	DDR3 1333/1066
Memory Slots	4
PCIe x1 Slots	2
PCI Slots	1
SATA Ports	4 (SATA II), 2 (SATA III)
Audio	Realtek ALC887 8-Channel HD Audio
LAN	Realtek 8111E Gigabit LAN
Video Ports	1 x HDMI, 1 x DVI, 1 x VGA
USB Ports	10
