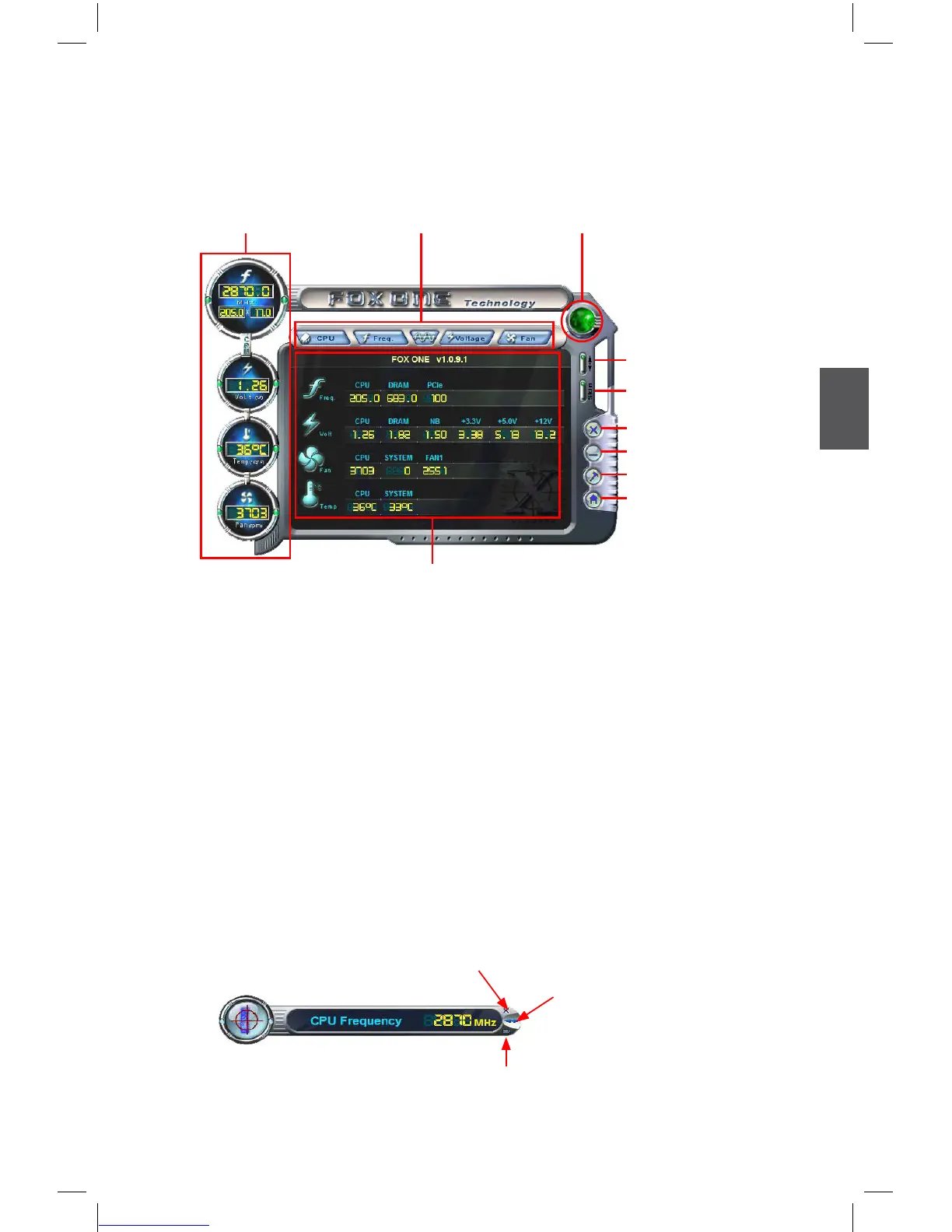

1. Main Page
Toolbar
Use the toolbar to navigate to other pages.
Alert Lamp
When the system is in healthy state, the color of alert lamp is green. When the system
is in abnormal state, the alert lamp color is red.
Switch Button
Click this button, it will simplify the whole FOX ONE control panel to a smaller
information bar (i.e. Simple Mode) as depicted below, you can drag this bar to any
place on your screen to help you monitoring system status.
Click here to go back to
FOX ONE full screen
Click here will drop the FOX ONE to Windows system tray
Exit FOX ONE
Show CPU
Information
Toolbar
Alert Lamp
Switch Button
Exit
Minimum
Homepage
Monitor Frequency/Voltage/Fan
speed/Temperature value
Conguration
Skin Button

Foxconn H67M Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
Socket	LGA 1155
Memory Type	DDR3
Maximum Memory	32GB
Memory Standard	DDR3 1333/1066
Memory Slots	4
PCIe x1 Slots	2
PCI Slots	1
SATA Ports	4 (SATA II), 2 (SATA III)
Audio	Realtek ALC887 8-Channel HD Audio
LAN	Realtek 8111E Gigabit LAN
Video Ports	1 x HDMI, 1 x DVI, 1 x VGA
USB Ports	10
