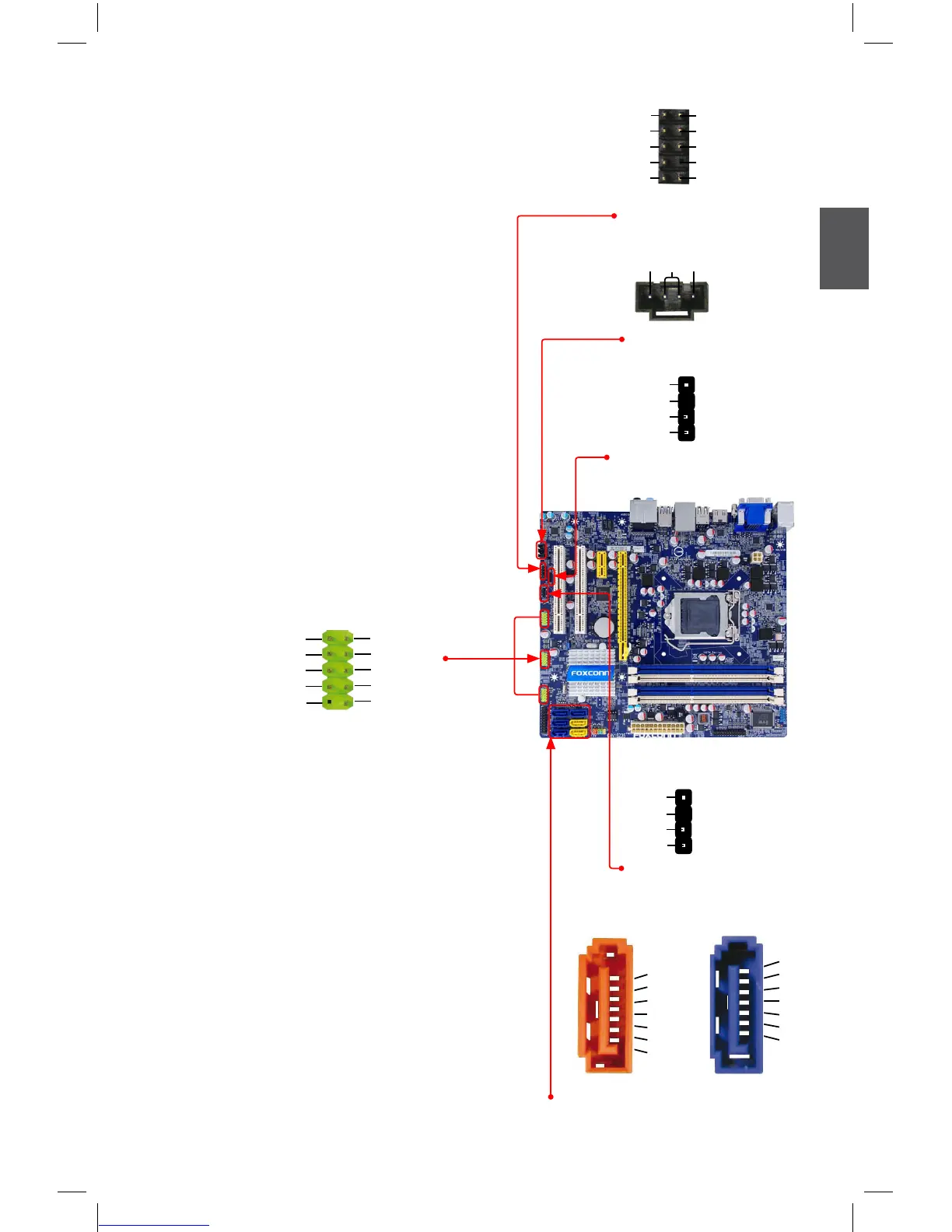

Audio Connector : F_AUDIO
The audio connector supports HD Audio standard. It
provides the Front Audio output choice.
CD_IN Connector :
CD_IN is a Sony standard audio connector, it can
be connected to a CD/DVD-ROM drive through a
CD/DVD audio cable.
S/PDIF OUT Connector : SPDIF_OUT
The connector is used for S/PDIF output.
USB Connectors : F_USB1/2/3
In addition to the USB ports on the rear panel, this
product also provides 10-pin USB headers on its
motherboard. By connecting through USB cables
with them, user can quickly expand another USB
ports on the front panel.
Speaker Connector : SPEAKER
The speaker connector is used to connect speaker
of the chassis.
Serial ATA Connectors : SATA_1/2/3/4/5/6
The Serial ATA connector is used to connect with
SATA Hard Disk or CD devices which support this
feature. The SATA_3/4/5/6 allows up to 300MB/s
data transfer rate, the SATA_1/2 support SATA
3.0 specication, and allows up to 600MB/s data
transfer
rate.
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1
2
109
F_AUDIO
PORT2_R
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1
2
10
9
F_USB1/2/3
+5V
EMPTY
SPDIF_OUT
GND
1
2
3
4
SPDIF_OUT
1
CD_IN
CD_L GND CD_R
NC
SPKJ
EMPTY
SPEAKER
SPKJ
1
2
3
4
GND
TX+
TX-
GND
RX-
RX+
GND
1
SATA_3/4/5/6
GND
TX+
TX-
GND
RX-
RX+
GND
1
SATA_1/2
