Foxconn Rattler User Manual

1
5

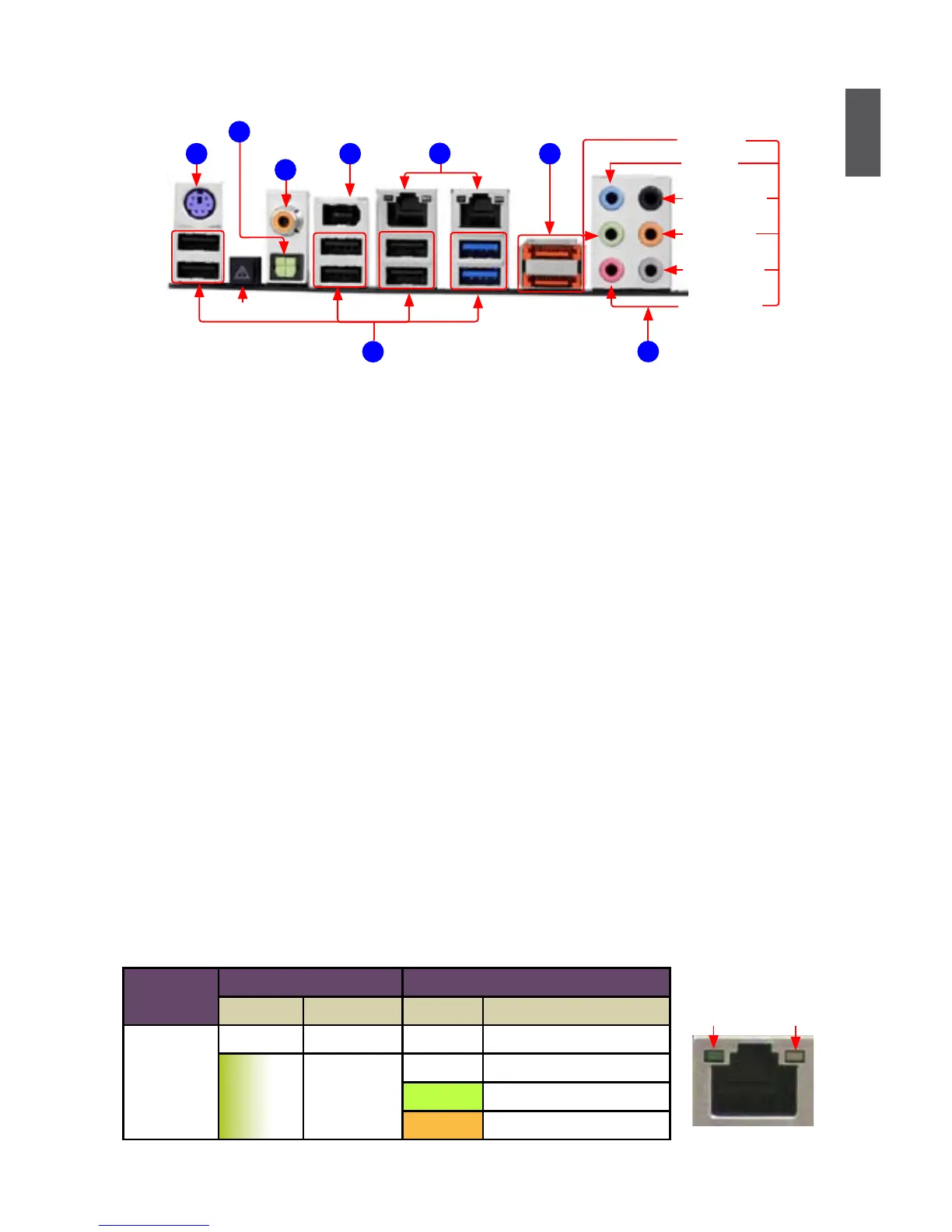

1-3 Back Panel Connectors
1. PS/2 Keyboard Port
Use this port (purple) to connect a PS/2 keyboard.
2. USB Ports
The USB port supports the USB 3.0 (blue) /2.0/1.1 specication. Use this port for USB devices
such as an USB keyboard/mouse, USB printer, USB ash drive and etc. But you need to install
the USB 3.0 driver in the Driver CD before using it.
3. Optical S/PDIF Out Port
This port provides digital audio out to an external audio system that supports digital optical
audio.
4. Coaxial S/PDIF Out Port
This connector provides digital audio out to an external audio system that supports digital co-
axial audio. Before using this feature, ensure that your audio system provides a coaxial digital
audio in connector.
5. 1394a Port
This port is used to connect a 1394a device.
6. LAN Ports
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
LAN Type
Left: Active Right: Link
Status Description Status Description
1000M
Off No Link Off No Link
Green
Blinking
Data
Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection
Active
LED
Link
LED
Optical
S/PDIF Out
PS/2 Port
1
Audio Ports
Line Out
Microphone In
Subwoofer
Rear Speaker
Side Speaker
Line In
8
External
SATA Ports
4
Coaxial
S/PDIF Out
LAN Ports
6
7
3
5
1394a Port
USB Ports
2
Clear CMOS Button
