Foxconn Rattler User Manual

1
4

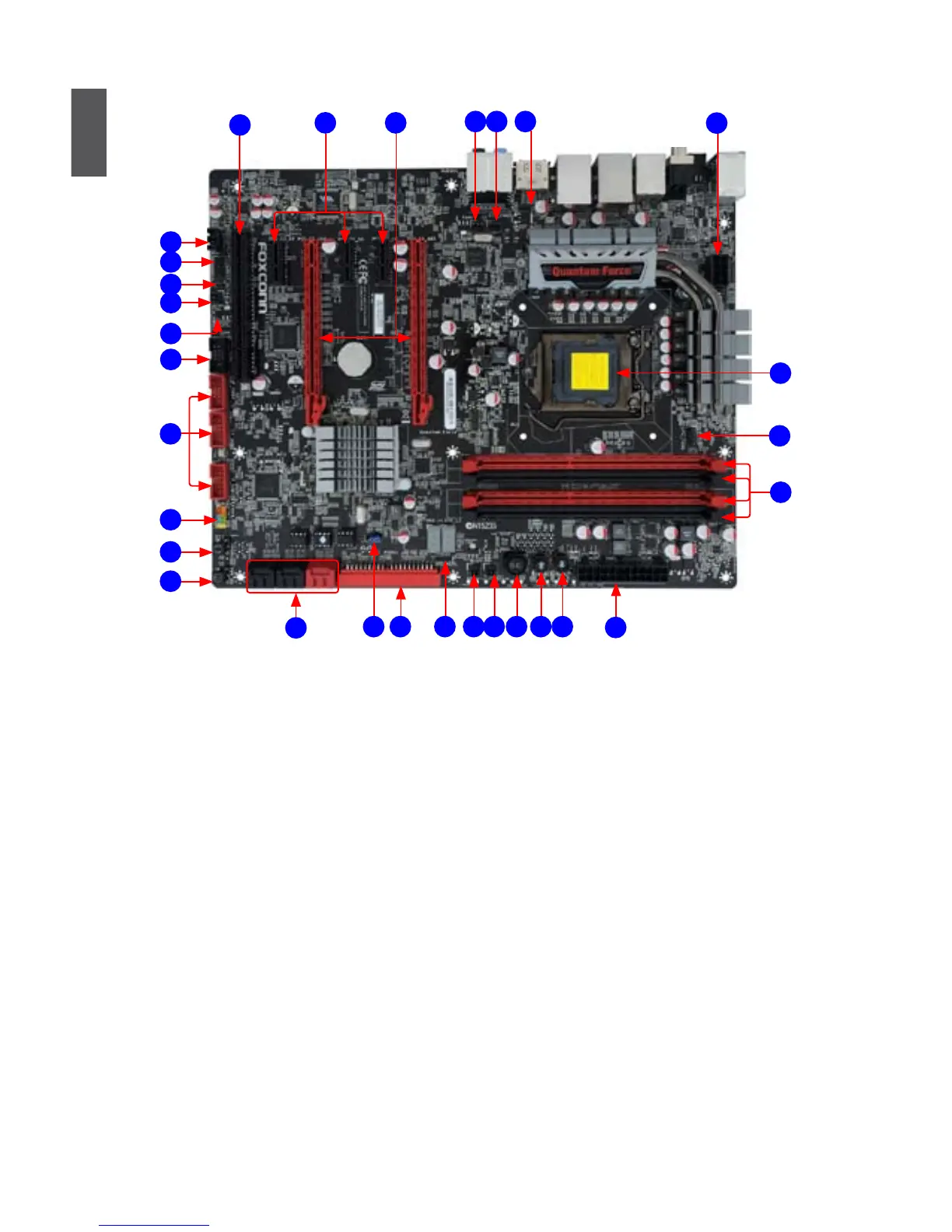

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 8-pin ATX 12V Power Connector
2. SPDIF-OUT2 Connector
3. SYS_FAN3 Header
4. FAN1 Header
5. PCI Express x16 Slots
6. PCI Express x1 Slots
7. PCI Slot
8. CD_IN Connector
9. Front Audio Connector
10. SPDIF-OUT3 Connector
11. SYS_FAN1 Header
12. CLear CMOS Jumper
13. 1394a Connector
14. Front USB Connectors
15. Front Panel Connector
16. Reset Button
17. Power On Button
18. SATA Connectors
19. BIOS_Select Jumper
20. IDE Connector
21. Speaker Connector
22. SYS_FAN2 Header
23. FAN2 Header
24. OC_Switch1 Button
25. OC_Switch2 Button
26. OC_Switch3 Button
27. 24-pin ATX Power Connector
28. DDR3 DIMM Slots
29. CPU_FAN1 Header
30. LGA1155 CPU Socket
1
8
29
24
9
18
30
6
14
28
15
2120
34
7
5
10
13
16
17
19
22 23 25 26
27
2
11
12

Foxconn Rattler Specifications

General

Brand	Foxconn
Model	Rattler
Category	Motherboard
Language	English
