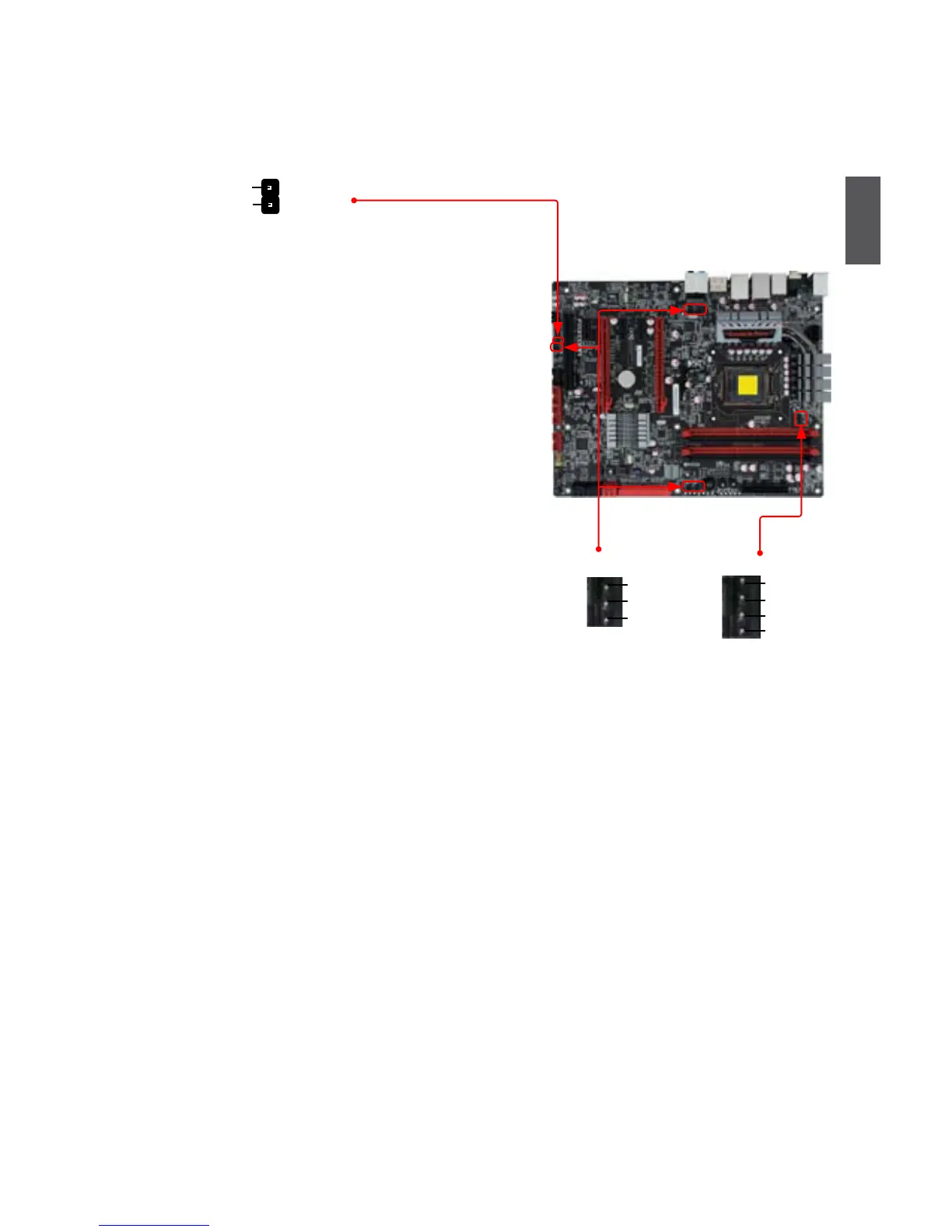

S/PDIF Connector : SPDIF_OUT3
The connector is used for S/PDIF output.
Fan Connectors : CPU_FAN, FAN1/2,
SYS_FAN1/2/3
There are six main fan headers on this motherboard. The
fan speed can be controlled and monitored in “Quantum
BIOS” section of the BIOS Setup. These fans can be
automatically turned off after the system enters
S3, S4 and S5 sleeping states.
CPU_FAN1
GND
POWER
SENSE
CONTROL
1
FAN1/2,
SYS_FAN1/2/3
GND
+12V
NC
1
SPDIF_OUT
SPDIF_OUT3
GND
1
2
