Frakco AQUA MAGIC Plus - AM2 Drive Cap Assembly, Downflow or Upflow Piston, Regenerant Piston, Downflow or Upflow Spacer Stack Assembly and Main Body

Page 27
2

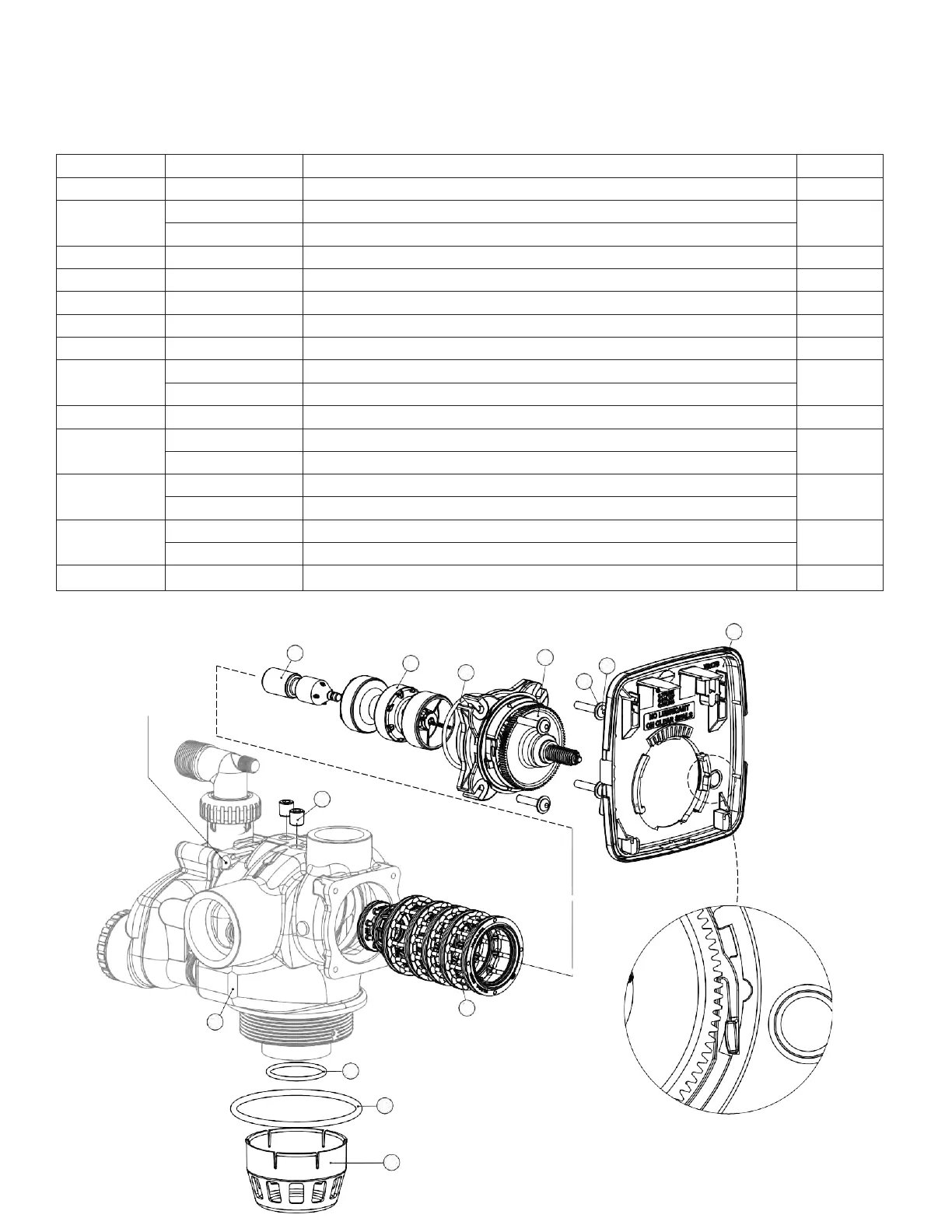

AM2 Drive Cap Assembly, Downflow or Upflow Piston, Regenerant
Piston, Downflow or Upflow Spacer Stack Assembly and Main Body
Drawing No.
Order No.
Description
Quantity
1
V3726*
AM2 BRINE PISTON ASSEMBLY
1
2
V3725 AM2 PISTON DOWNFLOW ASSEMBLY (AMBER IN COLOR)
1
V4059
AM2 PISTON UPFLOW ASSEMBLY (BLACK IN COLOR)
3
V3452
O-RING 230
1
4
V3728
AM2 DRIVE CAP ASSEMBLY
1
5
V3724
WASHER FLAT SS 1/4
4
6
V3642
BOLT BHCS S/S 1/4-20X1.25
4
7
BACK PLATE
REFER TO PROGRAMMING AND COVER DRAWING MANUAL
1
8
V3729
AM2 STACK DOWNFLOW ASSEMBLY (BLACK IN COLOR)
1
V3729-01
AM2 STACK UPFLOW ASSEMBLY (BLACK AND GREY IN COLOR)
9
V3419
O-RING 347
1
10
V3641
O-RING 225 FOR VALVE BODIES WITH NPT THREADS
1
V3441
O-RING 226 FOR VALVE BODIES WITH BSPT THREADS
11
V3700-01
AM2 BODY NPT
1
V3700BSPT-01**
AM2 BODY BSPT
12
V3468
AM2H PLUG 1/4 HEX NPT
2
V3465
AM2H PLUG 1/4 HEX BSPT
13 D1300 TOP BAFFLE DFSR CLACK 1.5/50MM 1
* V3726 AM2 Brine Piston must also be used for Backwash Only valves.
** BSPT threads on inlet and outlet ports on the V3700BSPT-01, NPT threads on the drain port.
7
B indicates BSPT
N indicates NPT
1
4
3
6
5
12
8
11
10
9
13
