Frakco AQUA MAGIC Plus - AM1.5 Regenerant Components

Page 30
15
13
12
14
11
10
19
9
16
17
2
4
18
3
5
7
1
6
8

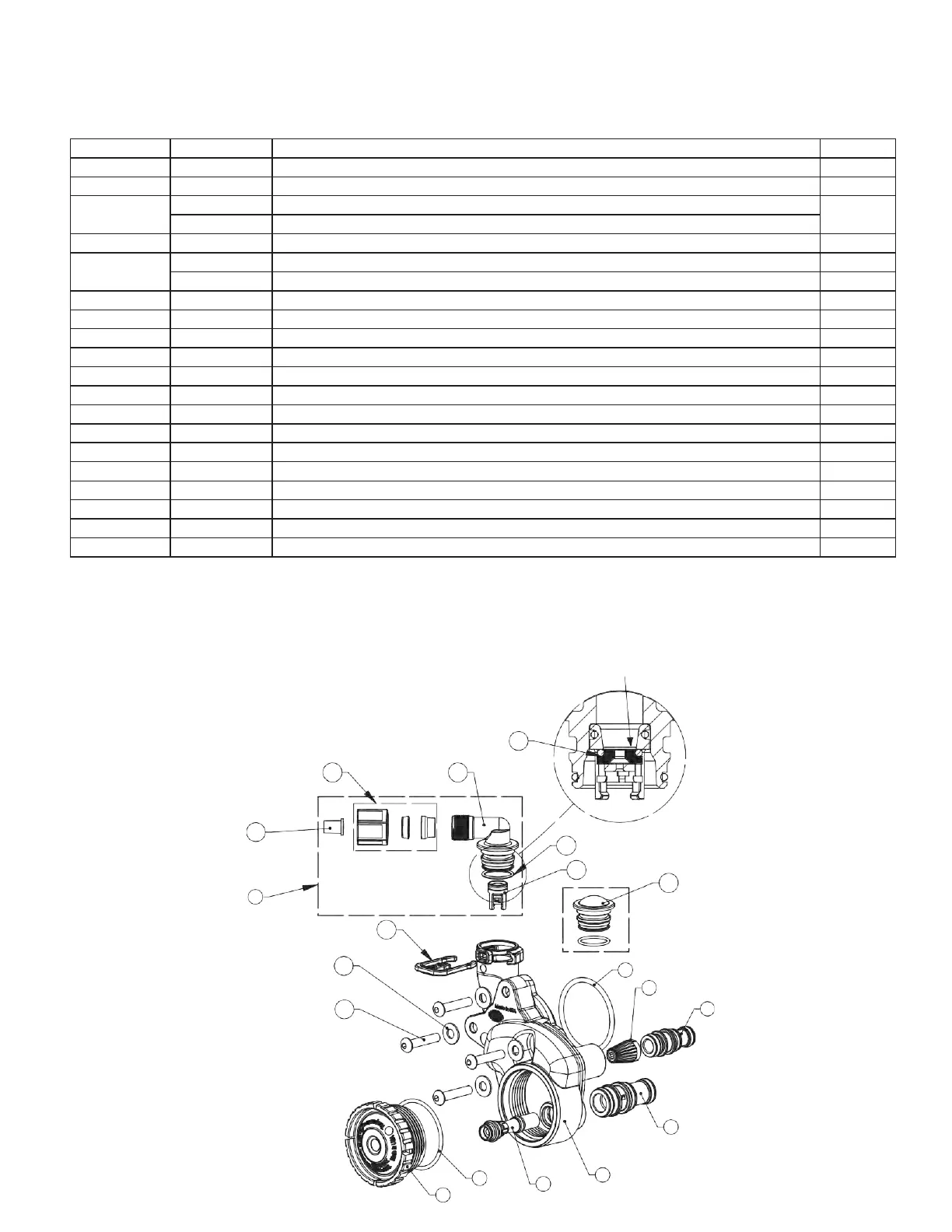

AM1.5 Regenerant Components
Drawing No.
Order No.
Description
Quantity
1
V3967
AM1.5 INJECTOR BODY, WELDED ASSEMBLY
1
2
V3441
O-RING -226
1
3***
V3968
AM1.5 INJECTOR FEED TUBE DOWNFLOW (BLACK IN COLOR)
1
V3968-01
AM1.5 INJECTOR FEED TUBE UPFLOW (GREY IN COLOR)
4
V3177-01
AM1 INJECTOR SCREEN
1
5****
V3969
AM1.5 INJECTOR DRAW TUBE DOWNFLOW (BLACK IN COLOR)
1
V3969-01
AM1.5 INJECTOR DRAW TUBE UPFLOW (GREY IN COLOR)
1
6
V4349
AM15P INJECTOR CAP
1
7
V3152
O-RING -135
1
8
SEE PAGE 33
AM 1.5 INJECTOR
1
9
V3498**
REFILL FLOW CONTROL, 1/2”
1
10
V3428**
AM 1.5 REFILL RETAINER ASSEMBLY (0.5 GPM)
1
11
V3163
O-RING, -019
1
12
H4612
REGENERANT ELBOW W/FLOW CONTROL
1
13
JCPG-8PBLK
NUT, COMPRESSION, 1/2” BLACK
1
14
JCP-P-8
INSERT, POLYTUBE 1/2”
1
15
V3182
REFILL FLOW CONTROL (0.5 GPM)
1
16
H4615
RETAINING CLIP
1
17
V3724
WASHER, FLAT STAINLESS STEEL
4
18
V3642
BOLT, BHCS STAINLESS STEEL 1/4-20X 1 1/4
4
19
V3195-01
REFILL PORT PLUG ASY
1
**Contains a V3182 0.5 gpm flow control
***V3968 and V3968-01 each contain one D1245 O-RING 111 and two V3155 O-RING 112
****V3969 and V3969-01 each contain one V3638 O-RING 113 and two V3157 O-RING 115
Proper RFC orientation directs refill water flow
toward the washer face with radius and text.
