Frakco AQUA MAGIC Plus - AM2 Injector Valve Body, Refill Flow Control and Injector

Page 31

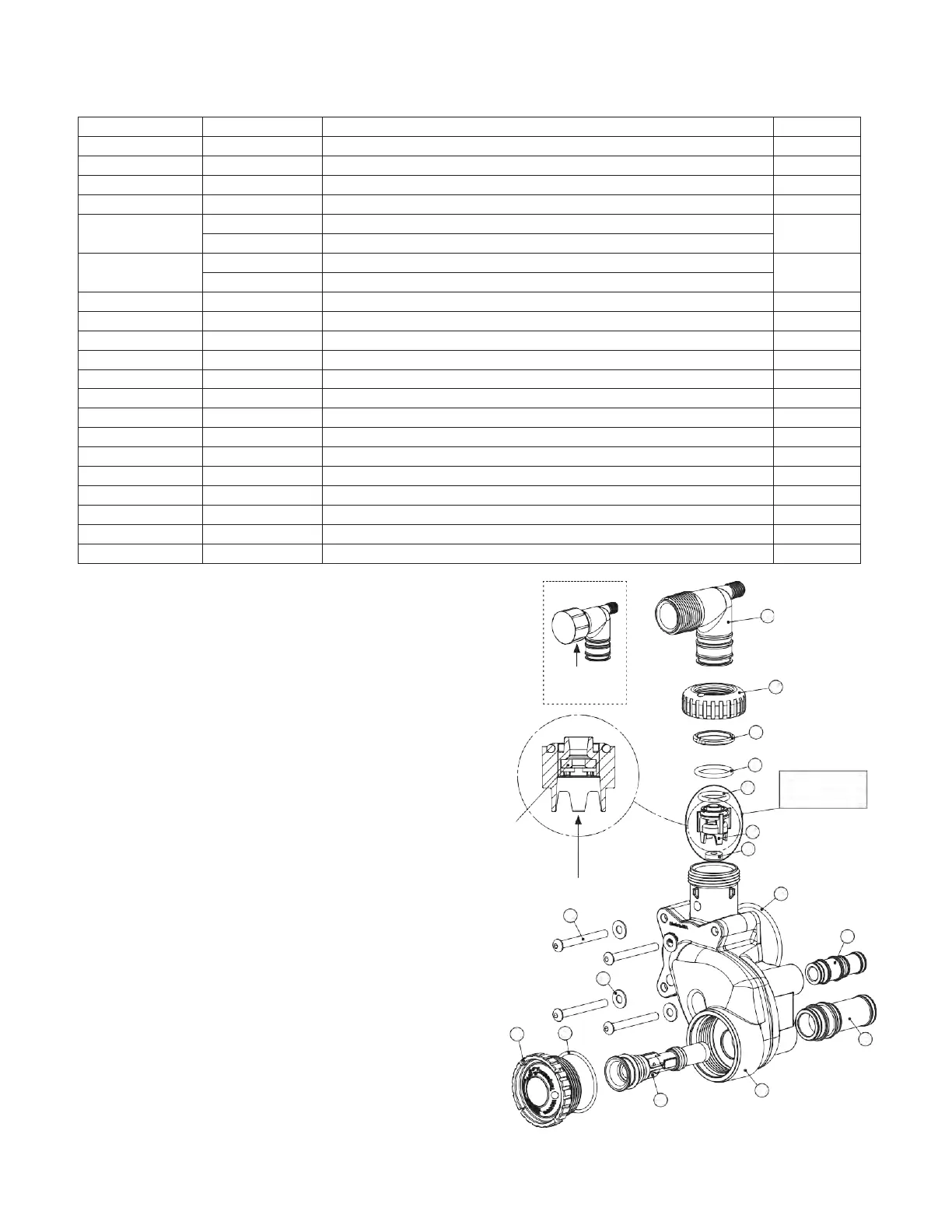

AM2 Injector Valve Body, Refill Flow Control and Injector
Drawing No.
Order No.
Description
Quantity
1
V3477
AM2H INJECTOR CAP
1
2
V3152
O-RING 135
1
3
V3727
AM2 INJECTOR BODY ASSEMBLY
1
4
See page 33
AM2/2H INJECTOR ASSY
1
5
V3731
AM2 INJ DRAW TUBE DOWNFLOW ASSEMBLY (BLACK IN COLOR)
1
V3731-01
AM2 INJ DRAW TUBE UPFLOW ASSEMBLY (GREY IN COLOR)
6
V3730
AM2 INJ FEED TUBE DOWNFLOW ASSEMBLY (BLACK IN COLOR)
1
V3730-01
AM2 INJ FEED TUBE UPFLOW ASSEMBLY (GREY IN COLOR)
7
V3315
O-RING 231
1
8
V3724
WASHER FLAT SS 1/4
4
9
V3643
BOLT BHCS S/S 1/4-20x2.25
4
10
V3162-022*
AM1 DLFC 022 FOR 3/4
1
11
V3231
AM2H REFILL FLOWCNTRL RETAINER
1
12
V3277
O-RING 211
1
13
V3105
O-RING 215
1
14
V3150
AMI SPLIT RING
1
15
V3151
AM1 NUT 1 QC
1
16
V3149
AM1 FTG 1 MALE NPT ELBOW
1
Not Shown
V3189
AM1 FTG 3/4&1 PVC SLVNT 90
Optional
Not Shown
H4915**
FTG KIT 494 BV 1/2 POLYTUBE
Optional
Not Shown
V3499
AM2H FITTING CAP 1 IN THREADED
Optional
Not Shown
V3797***
AM1 FTG 1 MALE BSPT ELBOW
BSPT Only
*Any V3162-XXX flow control may be used. AM2 valves are
shipped with a V3162-022 (2.2 gpm) flow control. Flow control
sizes range from 0.7 up to 10 gpm. AM2 valves can only be set for
minutes of fill because various sizes of flow controls can be used.
To calculate for pounds or kilograms of salt, take minutes of fill
times the flow rate of the flow control being used to arrive at the
number of gallons of water to be added to the brine tank. Each
gallon of water will dissolve approximately 3 pounds of salt.
**Use of H4915 may severely reduce brine draw rates.
*** BSPT Valves also include a V3797 AM1 FTG 1 MALE
BSPT ELBOW
A V3731 and V3731-01 each contain one D1262 O-RING 118
and two V3639 O-RING 119.
A V3730 and V3730-01 each contain three V3638 O-RING 113.
Backwash Only Valves include a V3499 but do not include the
following parts: V3189, H4915, V3162-022, V3231 and V3277.
Backwash Only
V3499 Cap
installed from
factory.
Proper RFC
orientation directs
refill water flow
toward the washer
face with radius and
text.
Water Flow
