Frakco AQUA MAGIC Plus - AM2 Quick Connect Drive Cap Assembly, Downflow or Upflow Piston, Regenerant Piston, Downflow or Upflow Spacer Stack Assembly and Main Body

Page 28
"1" ,QGLFDWHV 137
7KUHDGHG %RG
\
"%"
,QGLFDWHV %637
7KUHDGHG %RG\
7
1
2
4
3
5
6
”B” Indicates BSPT
15
”N” Indicates NPT
8
11
10
9
1
12
14
Install D1300-01 upper diffuser (not shown) when using the
4” Quick Connect Base Assembly (V3064).

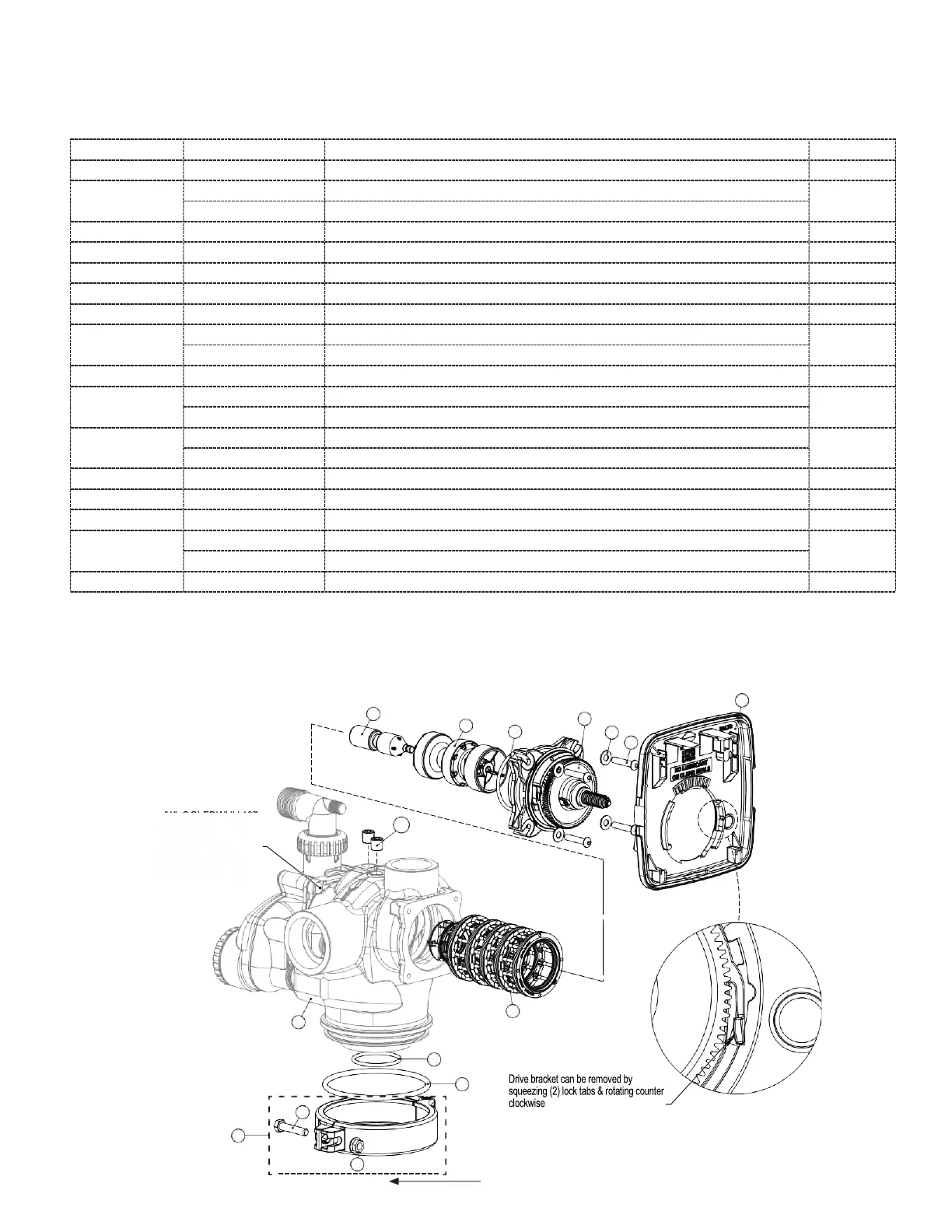

AM2 Quick Connect Drive Cap Assembly, Downflow or Upflow Piston, Regenerant
Piston, Downflow or Upflow Spacer Stack Assembly and Main Body
Drawing No.
Order No.
Description
Quantity
1
V3726**
AM2 BRINE PISTON ASSEMBLY
1
2
V3725
AM2 PISTON DOWNFLOW ASSEMBLY (AMBER IN COLOR)
1
V4059
AM2 PISTON UPFLOW ASSEMBLY (BLACK IN COLOR)
3
V3452
O-RING 230
1
4
V3728
AM2 DRIVE CAP ASSEMBLY
1
5
V3724
WASHER FLAT SS 1/4
4
6
V3642
BOLT BHCS S/S 1/4-20X1.25
4
7
BACK PLATE
REFER TO PROGRAMMING AND COVER DRAWING MANUAL
1
8
V3729
AM2 STACK DOWNFLOW ASSEMBLY (BLACK IN COLOR)
1
V3729-01
AM2 STACK UPFLOW ASSEMBLY (BLACK AND GREY IN COLOR)
9
V3279
O-RING 346
1
10
V3280
O-RING 332 FOR VALVE BODIES WITH NPT THREADS
1
V3452
O-RING 230 FOR VALVE BODIES WITH BSPT THREADS
11
V3737-01
AM2 BODY QC NPT
1
V3737BSPT-01***
AM2 BODY QC BSPT
12
V3054*
AM2H 4IN BASE CLAMP ASSEMBLY
1
13
V3276
AM2H BOLT HEX 5/16 - 18 X 1-3/4
1
14
V3269
AM2H NUT 5/16 - 18 SS HEX
1
15
V3468
AM2H PLUG 1/4 HEX NPT
2
V3465
AM2H PLUG 1/4 HEX BSPT
NOT SHOWN
D1300-01
TOP BAFFLE DFSR CLACK 2/63MM
1
* V3054 AM2H 4IN BASE CLAMP ASY includes a V3276 AM2H BOLT HEX 5/16 - 18 X 1-3/4 and V3269 AM2H NUT 5/16 - 18 SS HEX
** V3726 AM2 Brine Piston must also be used for Backwash Only valves.
*** BSPT threads on inlet and outlet ports on the V3737BSPT-01, NPT threads on the drain port.
