Frakco AQUA MAGIC Plus - Drain Line Flow Controls

Page 33
B indicates BSPT
N indicates NPT
DLFC not supplied.
At
least one V3190-XXX
must be installed in
center hole.
Plugs may be knocked out
or drilled to use up to six
V3162-XXX.

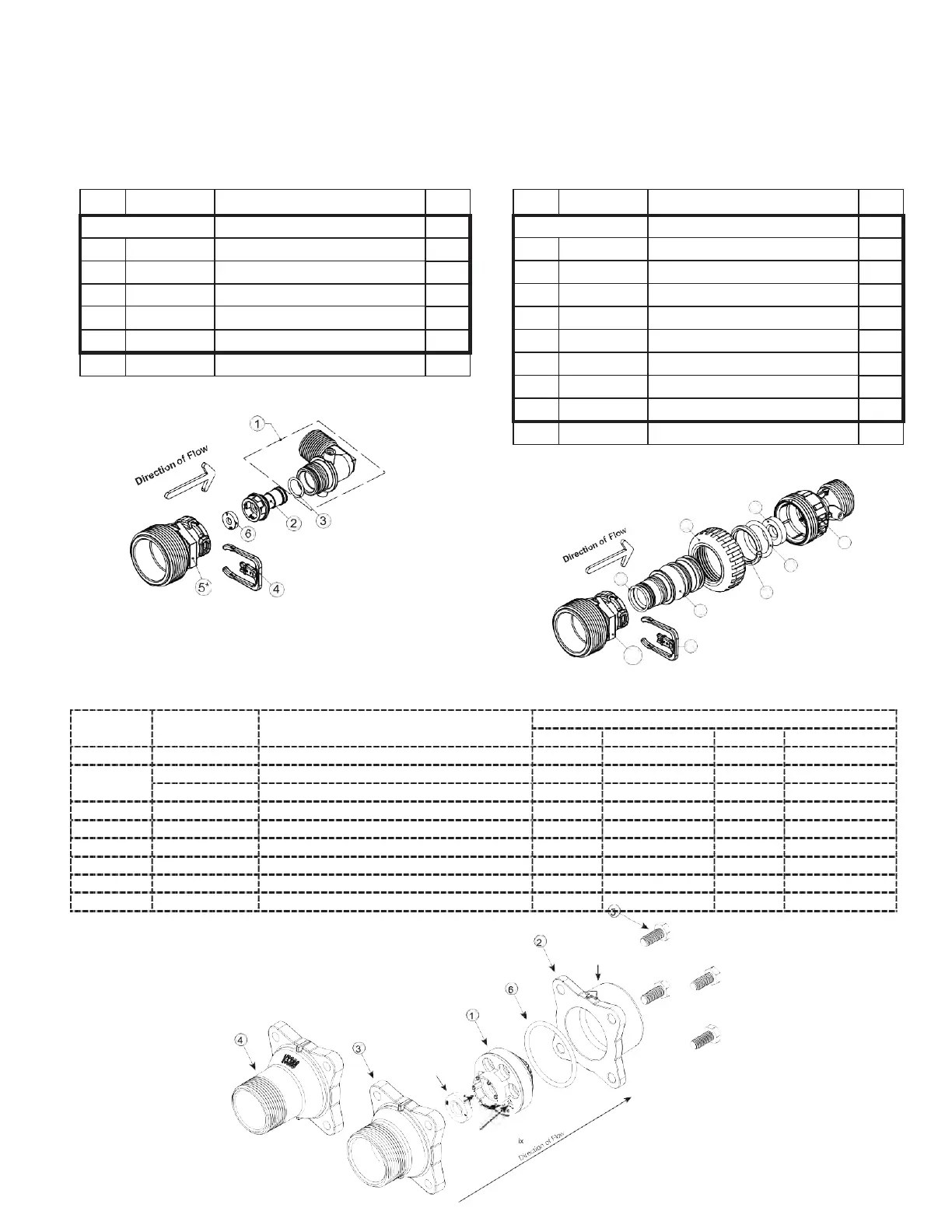

Drain Line Flow Controls
All drain line flow control housings are shipped without flow control washers.
See the drain line flow control washer section for available flow selections.
Elbow, 0.7 - 10 GPM
Item Part# Description Qty.
V3158-04
AM Drain Fitting, 3/4” Elbow
1 V3158-03 Drain Elbow, 3/4 NPT 1
2 V3159-01 DLFC Retainer Assembly 1
3
V3163
O-ring, -019
1
4 H4615 Locking Clip 1
5*
V3983
AM2 DLFC Adapter
1
6 V3162-xx See DLFC Section 1
*Also available: V3414 AM1.5 DLFC Adapter
Inline Plastic, 9 - 25 GPM
Item Part# Description Qty.
V3008-05
AM Drain Fitting, 1” Straight
1 V3167 AM Drain Fitting Adapter, 1” NPT 1
2
V3166-01
Drain Fitting Body
1
3
V3151
AM1 Nut, QC
1
4 V3150 AM1 Split Ring 1
5 V3105 O-ring -215 1
6
V3163
O-ring -019
1
7
H4615
Locking Clip
1
8**
V3983
AM2 DLFC Adapter
1
9
V3190-xx
See DLFC Section
1
**Also available: V3414 AM1.5 DLFC Adapter
MxF Stainless Steel, 9 - 85 GPM
Drawing
No.
Order No. Description
Quantity
V3079
V3079BSPT
V3080
V3080BSPT
1
V3081
AM15 RETAINER DLFC ASY
1
1
1
1
2
V3645
AM15 DLFC FLANGE OUTLET FNPT
1
1
V3645BSPT
AM15 DLFC FLANGE OUTLET FBSPT
1
1
3
V3646
AM15 DLFC FLANGE INLET MNPT
1
1
4
V3388
AM125 DLFC FLANGE INLET MNPT
1
1
5
V3652
BOLT HEXHD S/S HCS 5/16-18x3/4
4
4
4
4
6
V3441
O-RING 226
1
1
1
1
7
V3162-xx
See DLFC Section
0-6
0-6
0-6
0-6
8
V3190-xx
See DLFC Section
1
1
1
1
9
3
2
5
6
4
1
8**
7
